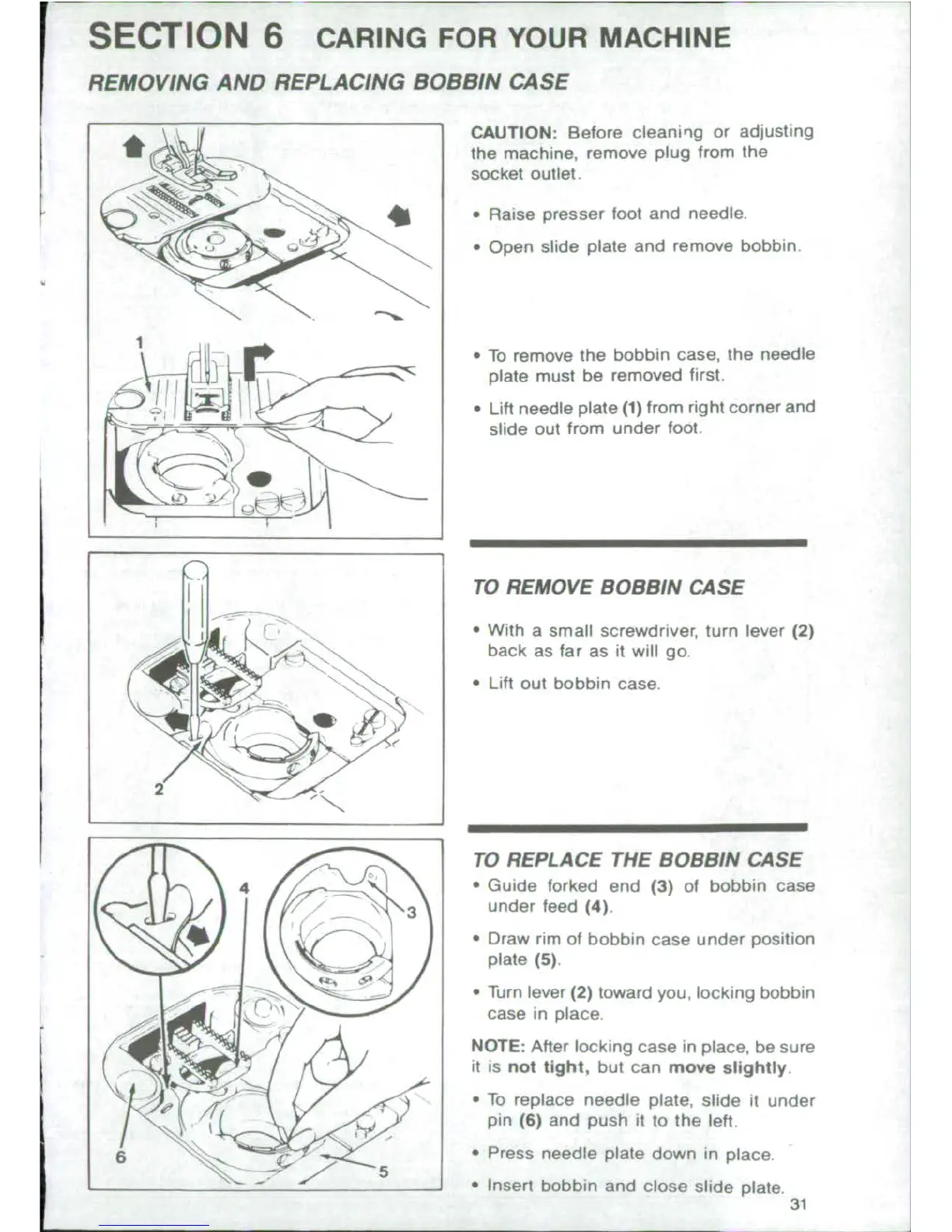

SECTION 6 CARING
FOR YOUR MACHINE
REMOVING AND REPLACING BOBBIN CASE
CAUTION: Before cleaning or adjusting
the machine, remove plug from the
socket
outlet,
* Raise presser foot and needle.
* Open slide plate and remove bobbin.
. To remove the bobbin case, the needle
plate must be removed first.
Lift needle
plate (1) from
right corner
and
slide out from under toot.
TO REMOVE BOBBIN CASE
. With a small screwdriver turn lever (2)
4< ~~~~~back
as far as it will go
K 1vV * * Lift out bobbin case.
2 _
TO REPLACE THE BOBBIN CASE
4 'K
* ~~~Guide forked end (3) of bobbin case
{Ci/) 5 3 under feed (4).
*4 / ] tt < 1 ) * Draw rim of bobbin case under position
plate (5).
|< -<
r1 f
. Turn lever (2) toward you,
locking bobbin
case in place
NOTE: After locking case in place. be sure
it is not tight, but can move slightly.
\ To replace needle plate, slide it under
/
7.}
X h\> <w2
pin (6) and push it to the left,
6 -. > S . Press needle plate down in place
< _ _ . insert
bobbin and close
slide plate,
