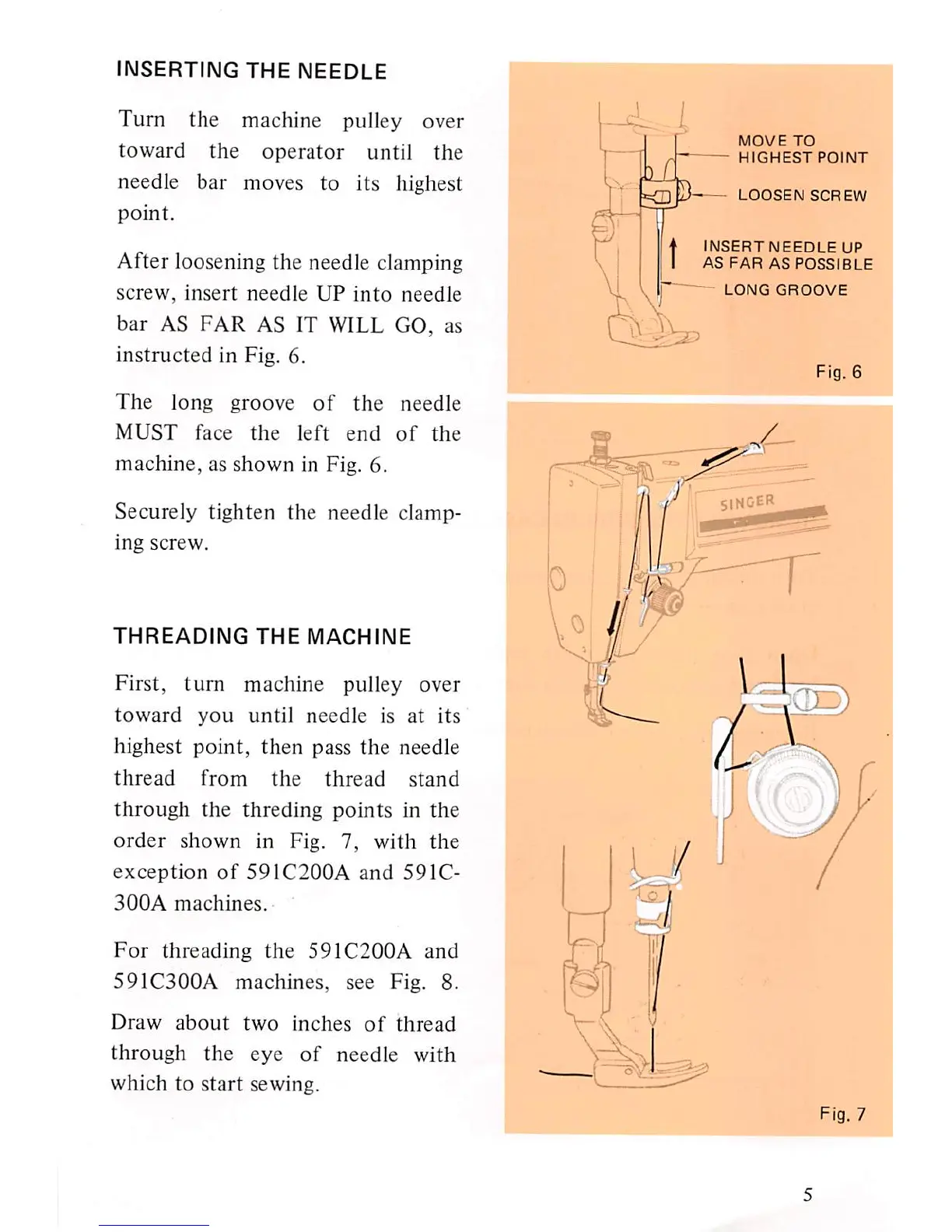

Singer 591D300A - Inserting the Needle; Threading the Machine

INSERTING THE NEEDLE
Turn the machine pulley over
toward the operator until the
needle bar moves to its highest
point.
After loosening the needle clamping
screw, insert needle UP into needle
bar AS FAR AS IT WILL GO, as
instructed in Fig. 6.
The long groove of the needle
MUST face the left end of the
machine, as shown in Fig. 6.
Securely tighten the needle clamp
ing screw.
THREADING THE MACHINE
First, turn machine pulley over
toward you until needle is at its
highest point, then pass the needle
thread from the thread stand
through the threding points in the
order shown in Fig. 7, with the
exception of 591C200A and 591C-
300A machines.
For threading the 591C200A and
591C300A machines, see Fig. 8.
Draw about two inches of thread
through the eye of needle with
which to start sewing.
MOVE TO
HIGHEST POINT
LOOSEN SCREW
INSERTNEEDLE UP
AS FAR AS POSSIBLE
LONG GROOVE
Fig. 6
SlNOER
Fig. 7
