Singer 591D300A - Removing the Bobbin Case and Bobbin

0
OD)

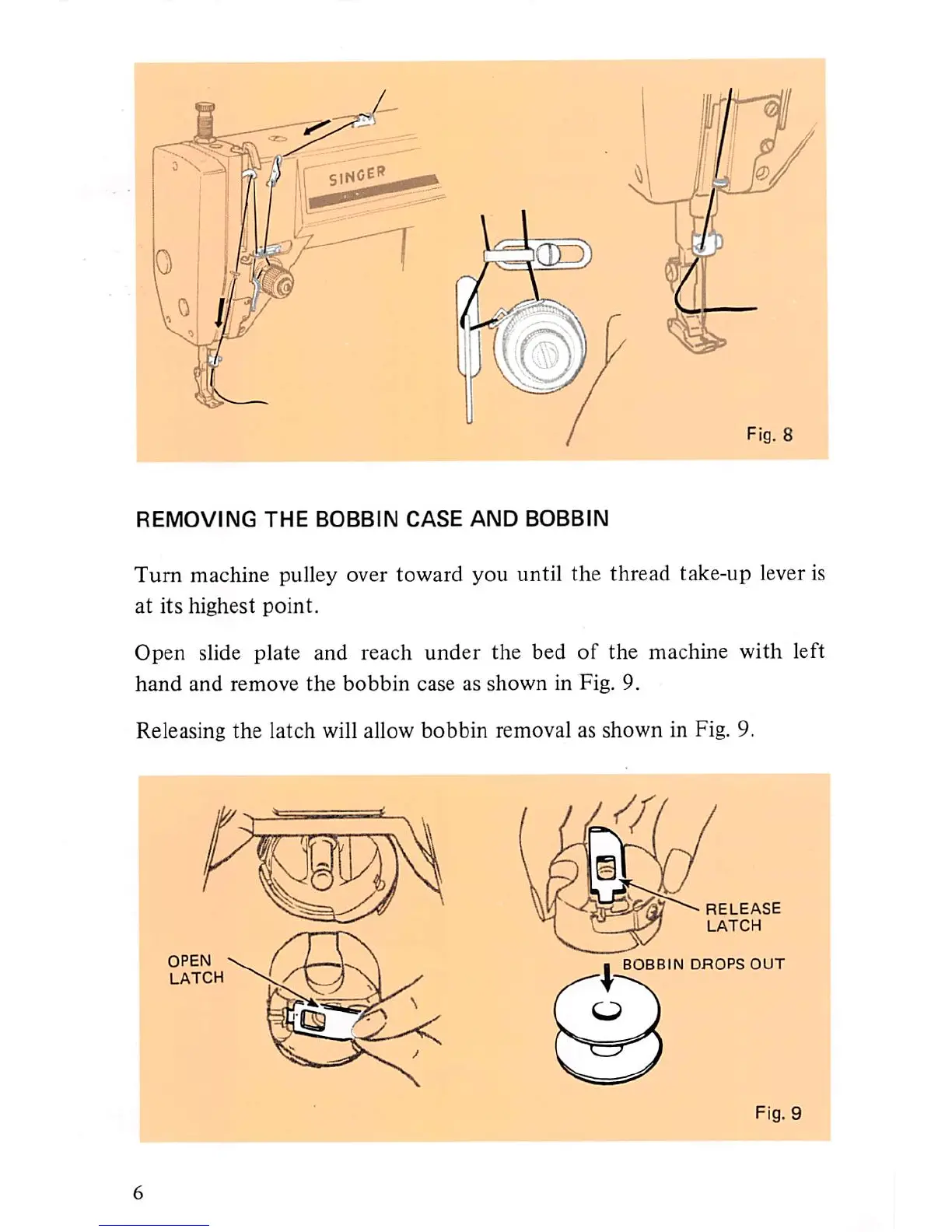

REMOVING THE BOBBIN CASE AND BOBBIN
Turn machine pulley over toward you until the thread take-up lever is
at its highest point.
Open slide plate and reach under the bed of the machine with left
hand and remove the bobbin case as shown in Fig. 9.
Releasing the latch will allow bobbin removal as shown in Fig. 9.
OPEN
LATCH
RELEASE
LATCH
BOBBIN DROPS OUT
1
Fig. 9
