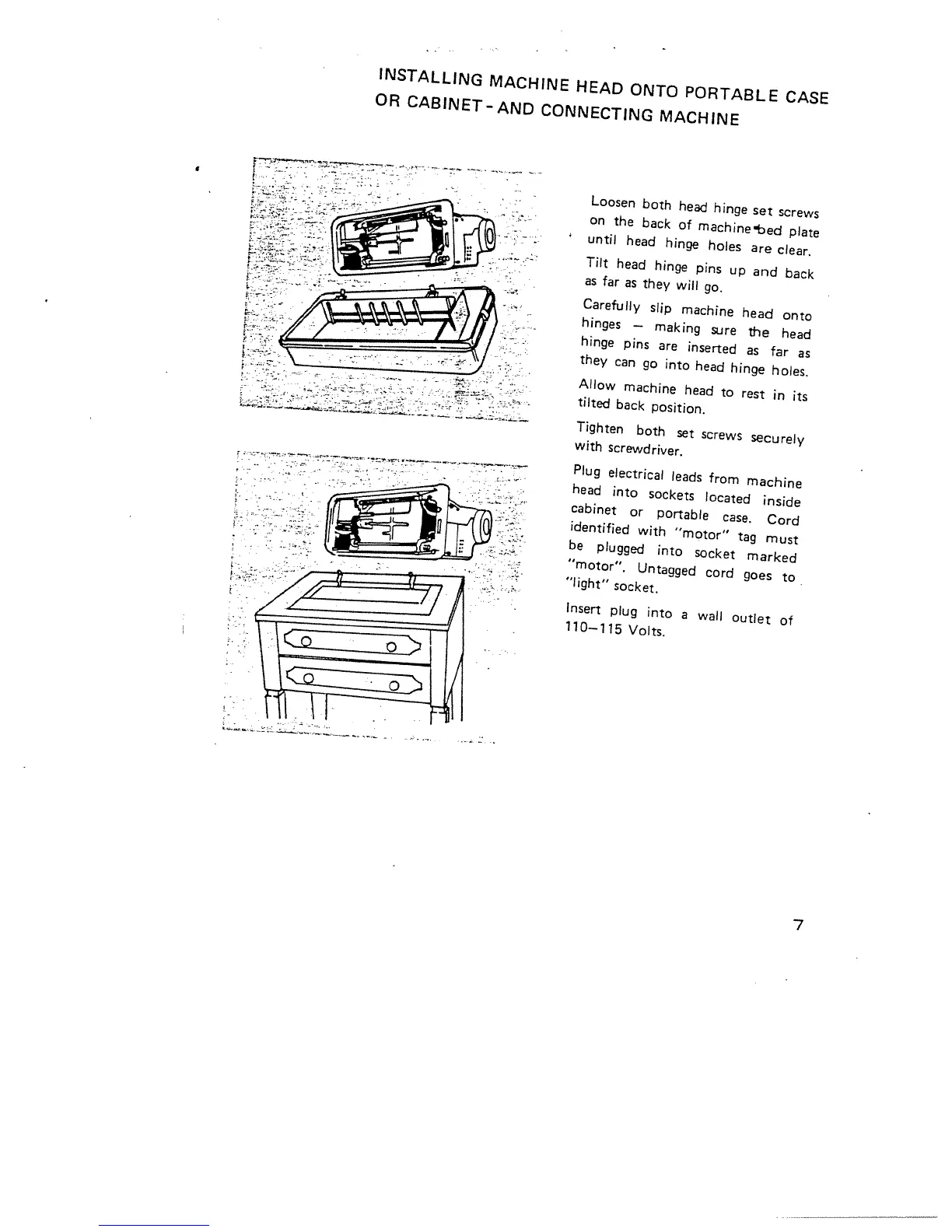

Singer 645 - Machine Head Installation

INSTALLING
MACHINE
HEAD
ONTO
PORTABLE
CASE
OR
CABINET-AND
CONNECTING
MACHINE
__zl7*.
(_Q_
Loosen
both
head
hinge
set
screws
on
the
back
of
machineed
plate
until
head
hinge
holes
are
clear.
Tilt
head
hinge
pins
up
and
back
as
far
as
they
will
go.
Carefully
slip
machine
head
onto
hinges
—
making
sure
the
head
hinge
pins
are
inserted
as
far
as
they
can
go
into
head
hinge
holes.
Allow
machine
head
to
rest
in
its
tilted
back
position.
Tighten
both
set
screws
securely
with
screwdriver.
Plug
electrical
leads
from
machine
head
into
sockets
located
inside
cabinet
or
portable
case.
Cord
identified
with
‘motor”
tag
must
be
plugged
into
socket
marked
“motor”.
Untagged
cord
goes
to•
“light”
socket.
Insert
plug
into
a
wall
outlet
of
110—115
Volts.
