Singer 7285Q - Needle Threader Height

Page 11/38
Original issue
May, 2014
Service Manual
7285Q
Model

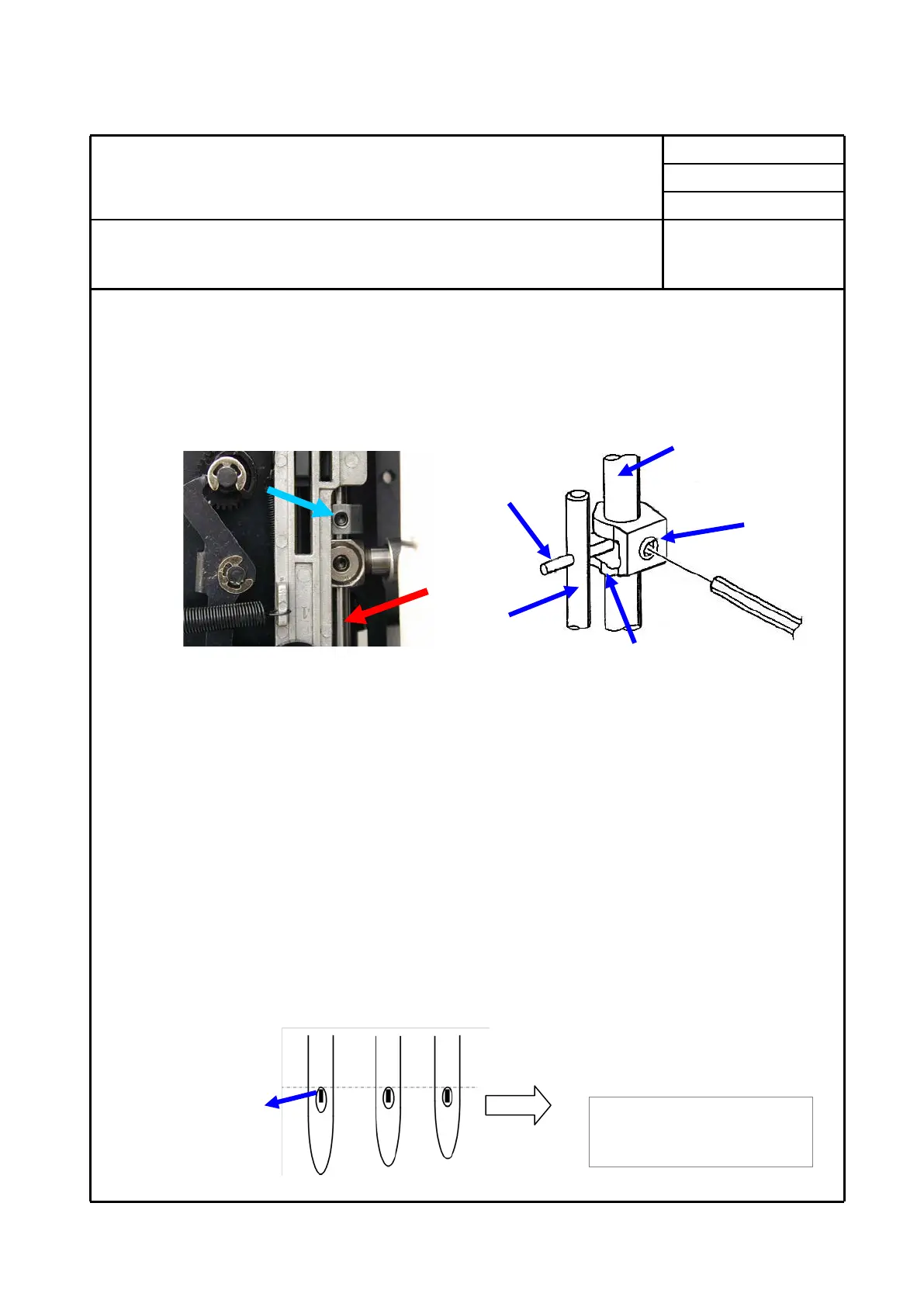

4. Needle threader height
1. Use needle Singer 90/14.
2. Select straight stitch at center needle position.
3. Raise needle to its highest position by turning hand wheel toward you.
4. Lowering needle threader lever, check and see if hook is inserted into needle hole.
Adjustment
1. Remove face cover.
2. Turning hand wheel by hand, raise needle bar (A) to its highest position.
3. Loosen screw (B) of threader stopper.
4. Insert hook into the upper side of needle-hole moving the needle threader bar
(C).
5. While holding the above situation, tighten the screw (B) attaching the stopper
pin (D) onto threader stopper (E).
6. The direction of screw (B) on threader stopper (E) should be facing toward
you so that it may not hit the needle support bracket.
＊ Insert the hook into the upper side of needle hole at all times as the smaller
needle size, the shorter needle hole.
A
B
Insert the hook into the
upper side of needle hole.
90/1
80/1
70/9
Hook
D
B
A
C
E
