Class 99 & 99K
UPPER THREADING

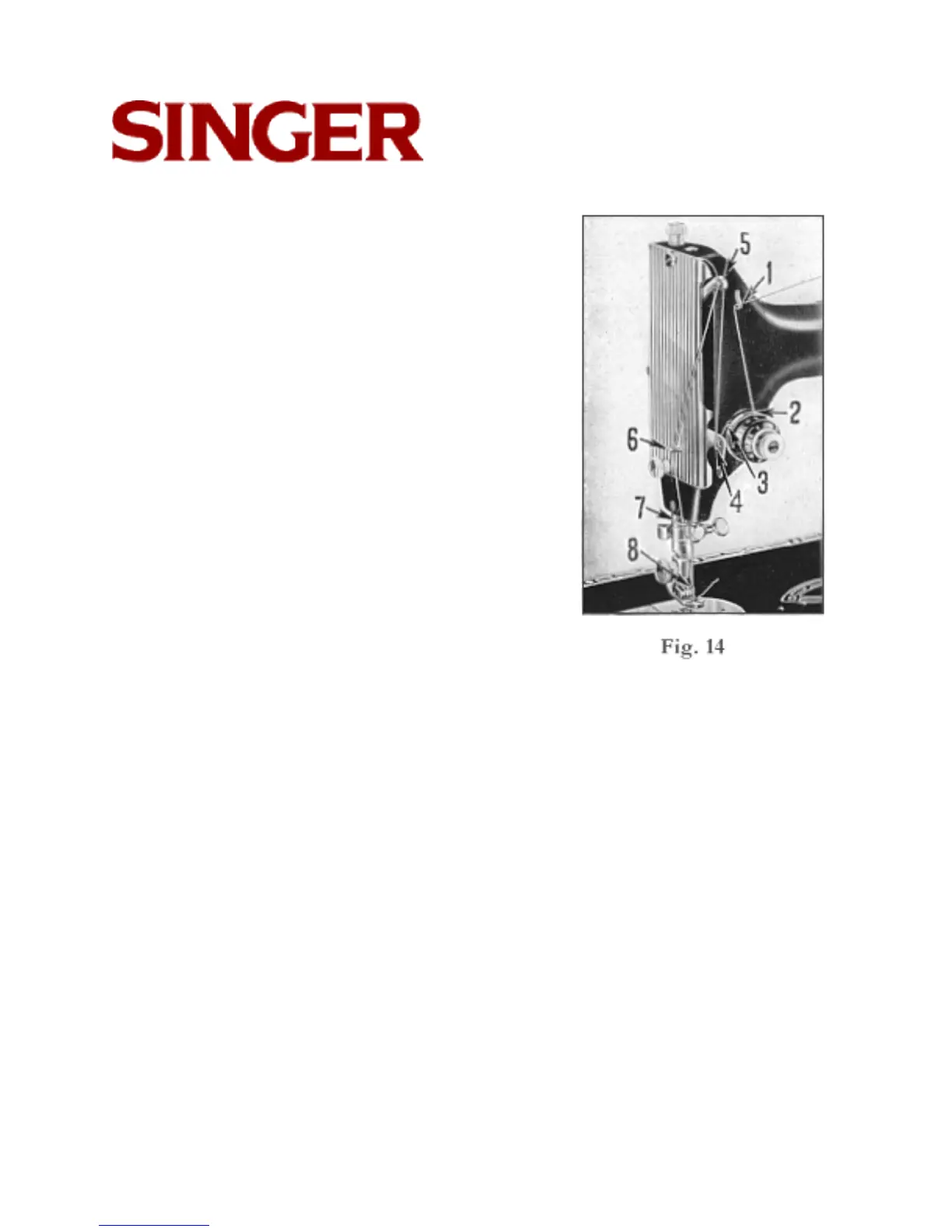

See Fig. 14. Place spool of thread on
spool pin. Raise take-up lever 5 to its
highest point. Lead thread into thread
guide 1, down and from right to left
between tension discs 2, into the loop
of the take-up spring 3, under the slack
thread regulator 4 (not through the
eye in the thread regulator), up and
from right to left through hole in take-up
lever 5, down through guide 6 on the
face plate, down through the lower wire
guide 7, from left to right through the
eye of the needle 8.
Draw about two inches of thread
through the eye of the needle with
which to begin to sew.
Page 13
