Class 99 & 99K
To Oil the Machine and Stand

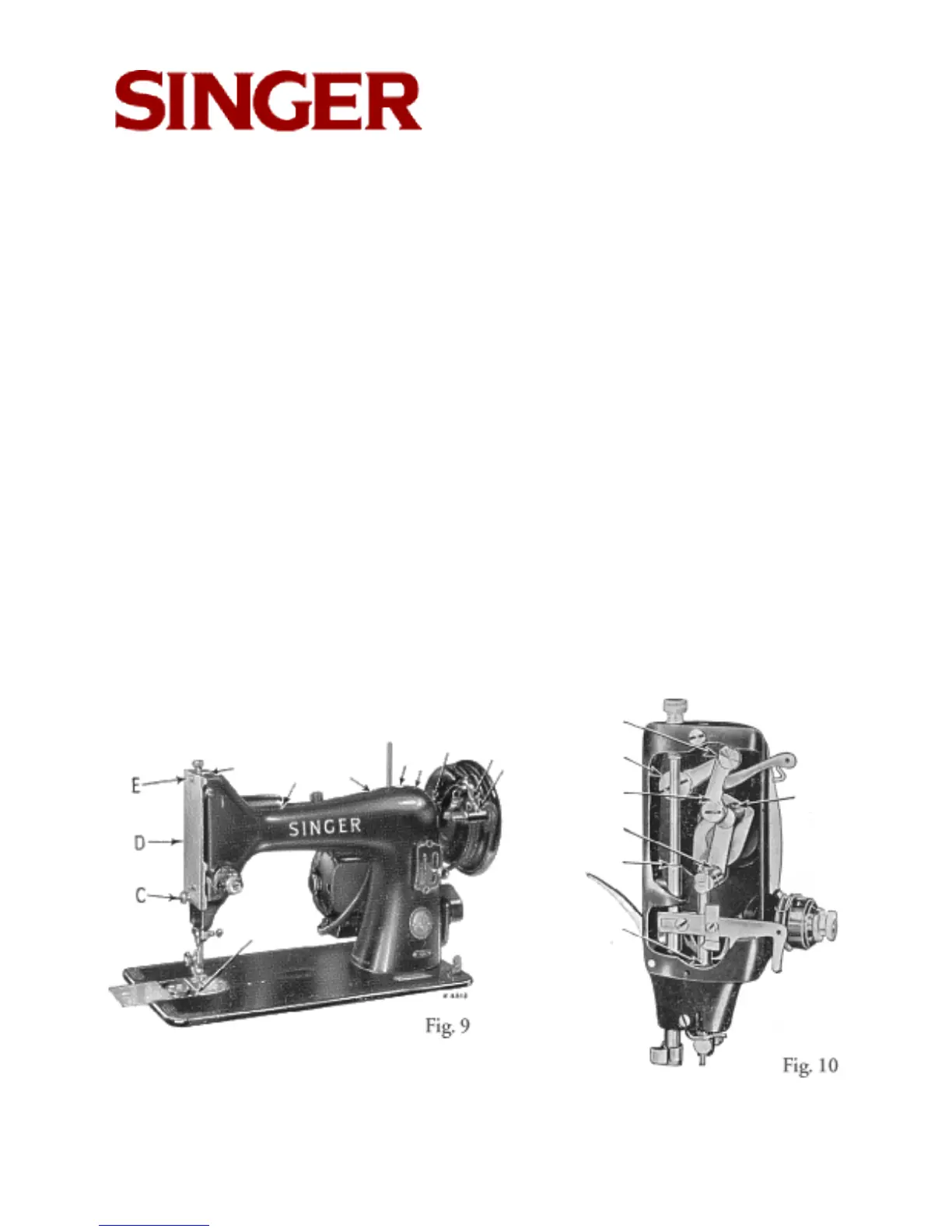

If the machine is used continuously, it should be oiled daily. If moderately used, an
occasional oiling is sufficient. Apply one drop of oil at teach of the places indicated
by the unlettered arrows in Figs. 9, 10 and 12 and carefully clean the machine to
insure smooth and satisfactory performance. Oil holes are provided in the machine
for bearings which cannot be directly reached.
Remove face plate D, Fig. 9 by taking out screw C and loosening screw E near the
top of the place. Slip plate over screw E. Oil the points indicated in Fig 10 and
then replace face plate D.
Draw the slide to the left (as shown in Fig. 9) and, after removing the lint and dust
which may have accumulated (see instructions on page 24), apply a drop of oil at
the place indicated at F, Fig. 11. The slide should then be closed.
Page 9
