Class 99 & 99K
Insert the forefinger of the left hand
under the latch CC, Fig. 32, raise the
latch just high enough to clear the edge
DD and then move the latch toward
you.

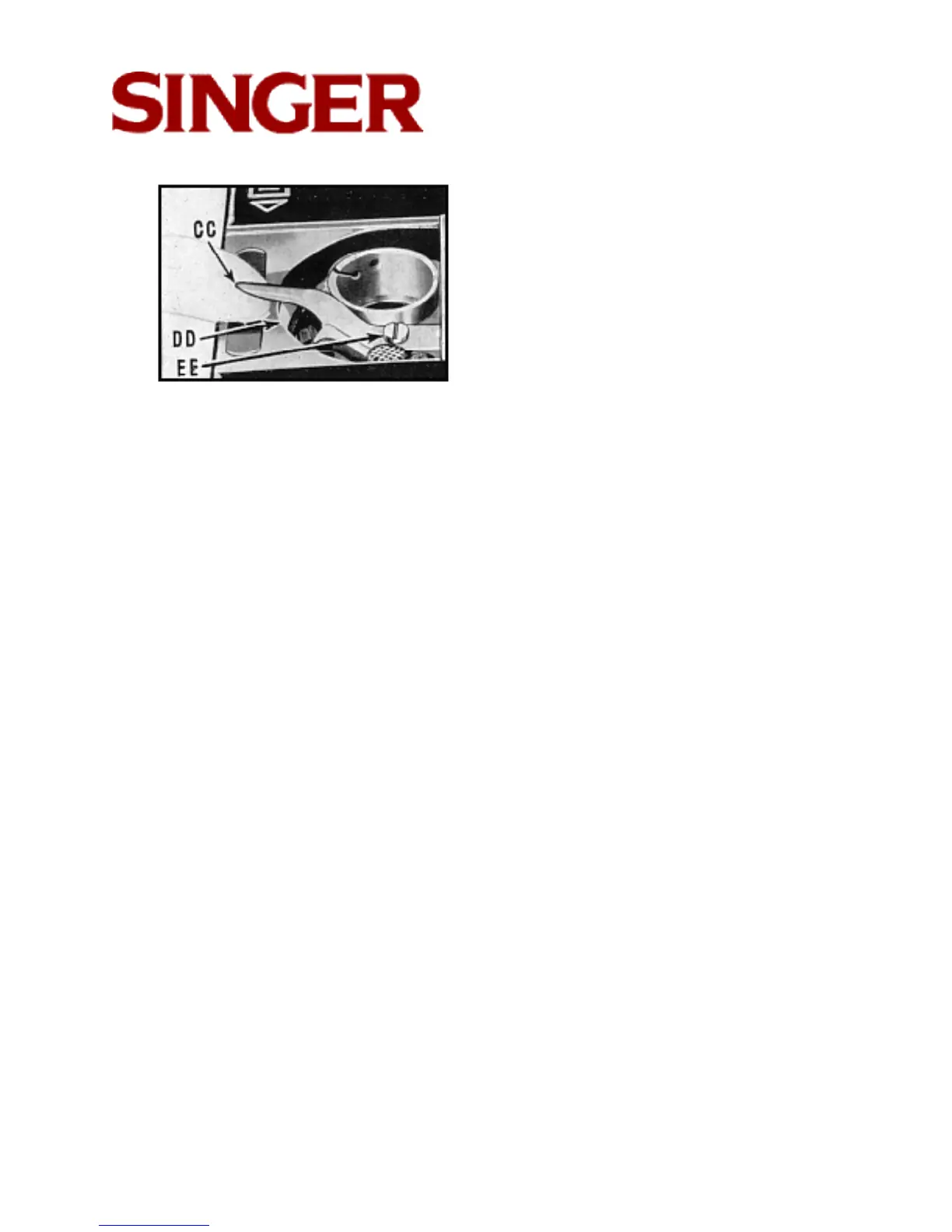

Fig. 32 Raising the Bobbin Case Latch
Under no circumstances must the
screw EE be loosened. The
loosening of this screw will change the
clearance for the thread between the
bobbin case and the bobbin position
bracket.
Page 27
