sinmag LBC LMO Max-E - PRESSURE PANEL SETTINGS; Air Opening Gap Adjustments

© Copyright 2017-2022 LBC Bakery Equipment, Inc. 20 Rev 6/2022
PRESSURE PANEL SETTINGS .

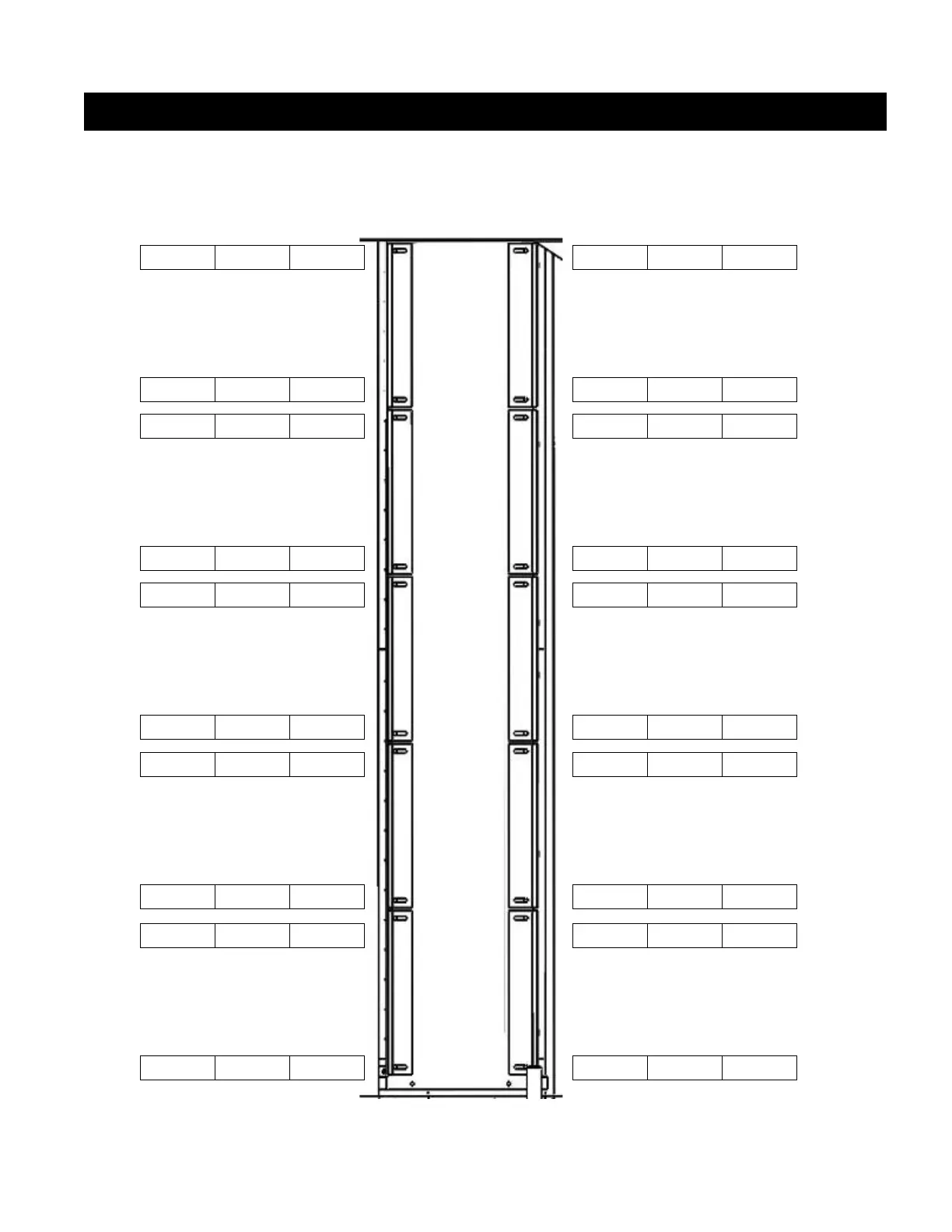

Adjust gap between shutter side of air opening adjacent to adjusting screw.
Left Side
Right Side
11/32
9mm
0.35
0.35
9mm
11/32
13/32
10mm
0.41
0.44
11mm
7/16
13/32
10mm
0.41
0.44
11mm
7/16
11/32
9mm
0.35
0.35
9mm
11/32
5/16
8mm
0.32
0.32
8mm
5/16
5/16
8mm
0.32
0.29
7mm
9/32
5/16
8mm
0.32
0.29
7mm
9/32
5/16
8mm
0.32
0.32
8mm
5/16
11/32
9mm
0.35
0.32
8mm
5/16
9/32
7mm
0.29
0.32
8mm
5/16
