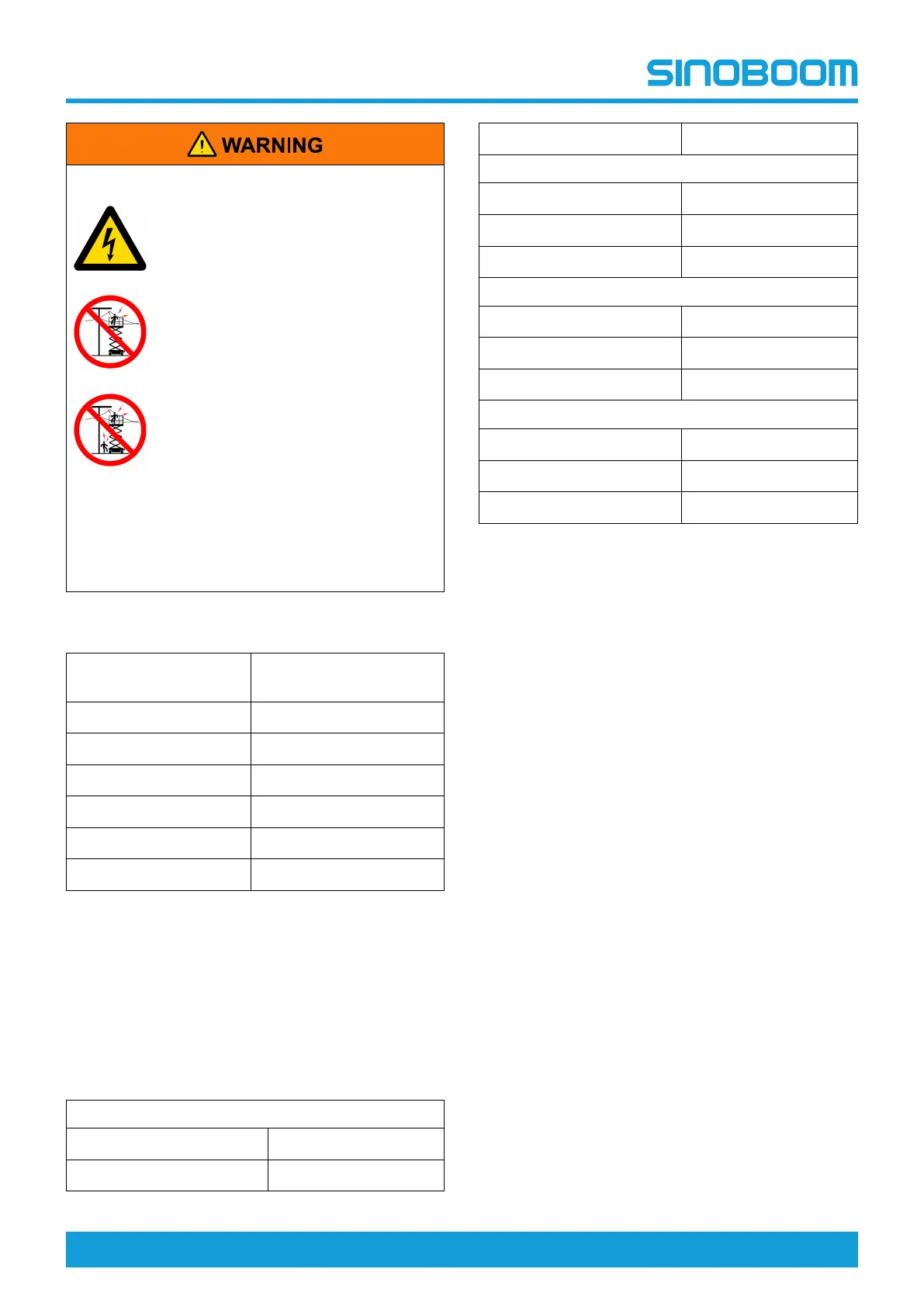

© Jun 2020 3-2 GTJZ0612E&0812E&1012E&1212E Operation Manual
SAFETY
ELECTRICAL SHOCK HAZARDS
• Always maintain a safe distance
from power lines and electrical
equipment in accordance with ap-
plicable government regulations
and see Table 3-1 , page 3-2.
• Consider platform movement,
wire swinging or drooping, be-
ware of strong winds or gusts,
and do not operate the machine
when there is lightning or heavy
rain.
• If the machine comes into contact
with live wires, keep away from
the machine. Personnel on the
ground or on the platform must
not touch or operate the machine
until the power is switched off.
• Do not use the machine as a
ground wire during welding and
polishing operations.
Table 3-1
Voltage
(Phase to Phase, kV)
Minimum Safe Distance
(m/ft)
0-50 3.05 (10)
50-200 4.60 (15)
200-350 6.10 (20)
350 -500 7.62 (25)
500 -750 10.67 (35)
750 -1000 13.725 (45)
TIPPING HAZARDS AND
RATED LOAD
Maximum rated load bearing capacity of the platform:
Table 3-2
GTJZ0612E
Retracting 550 kg(1213 lb)
Extending: Stationary only 430 kg(948 lb)
Extending: Extension only 120 kg(265 lb)
GTJZ0812E
Retracting 450 kg(992 lb)
Extending: Stationary only 330 kg(728 lb)
Extending: Extension only 120 kg(265 lb)
GTJZ1012E
Retracting 320 kg(705 lb)
Extending: Stationary only 200 kg(441 lb)
Extending: Extension only 120 kg(265 lb)
GTJZ1212E
Retracting 320 kg(705 lb)
Extending: Stationary only 200 kg(441 lb)
Extending: Extension only 120 kg(265 lb)
