GTJZ0612E&0812E&1012E&1212E Operation Manual 8-1 © Jun 2020
8 TRANSPORTING AND LIFTING THE
MACHINE
TRANSPORTATION AND LIFTING
HAZARD
• Use a forklift or crane with the
proper lifting capacity to lift the
machine. Use good judgment and
a planned movement to control
the machine.
• Transport vehicles must be
parked on level ground.
• Be sure to prevent the transporta-
tion vehicle from moving when
loading the machine. Refer to 1
Performance Parameters, page 1-
1.
• Ensure that the vehicle capacity,
loading surface, belts or ropes are
sufficient to support the weight of
the machine.
• Be sure the machine is on a hori-
zontal plane or fixed before re-
leasing the brakes.
• When removing the wire rope
safety pin, prevent the guardrail
from falling. The guardrail must
be held tight at all times when
descending.
• Never transport people on the ma-
chine while the machine is being
towed or while the machine is en-
gaged in towing or lifting
operations.
• When using a forklift or crane to
lift the machine, pay attention to
prevent the machine from collid-
ing with nearby objects.
• Lock the wheels of the machine
after it has been installed to pre-
vent the machine from rolling.
NOTICE
Do not pull/drag the machine unless an emergency,
failure or loss of power occurs. Refer to Using the
Emergency Pull/Drag Feature, page 7-1.
LIFTING THE MACHINE
WITH A FORKLIFT
Follow these requirements when lifting the machine by
forklift:
1. Make sure the platform extension, controller and
chassis components are stable. Remove all loose
parts from the machine.
2. Fully lower the platform. Keep the platform down
during transportation.

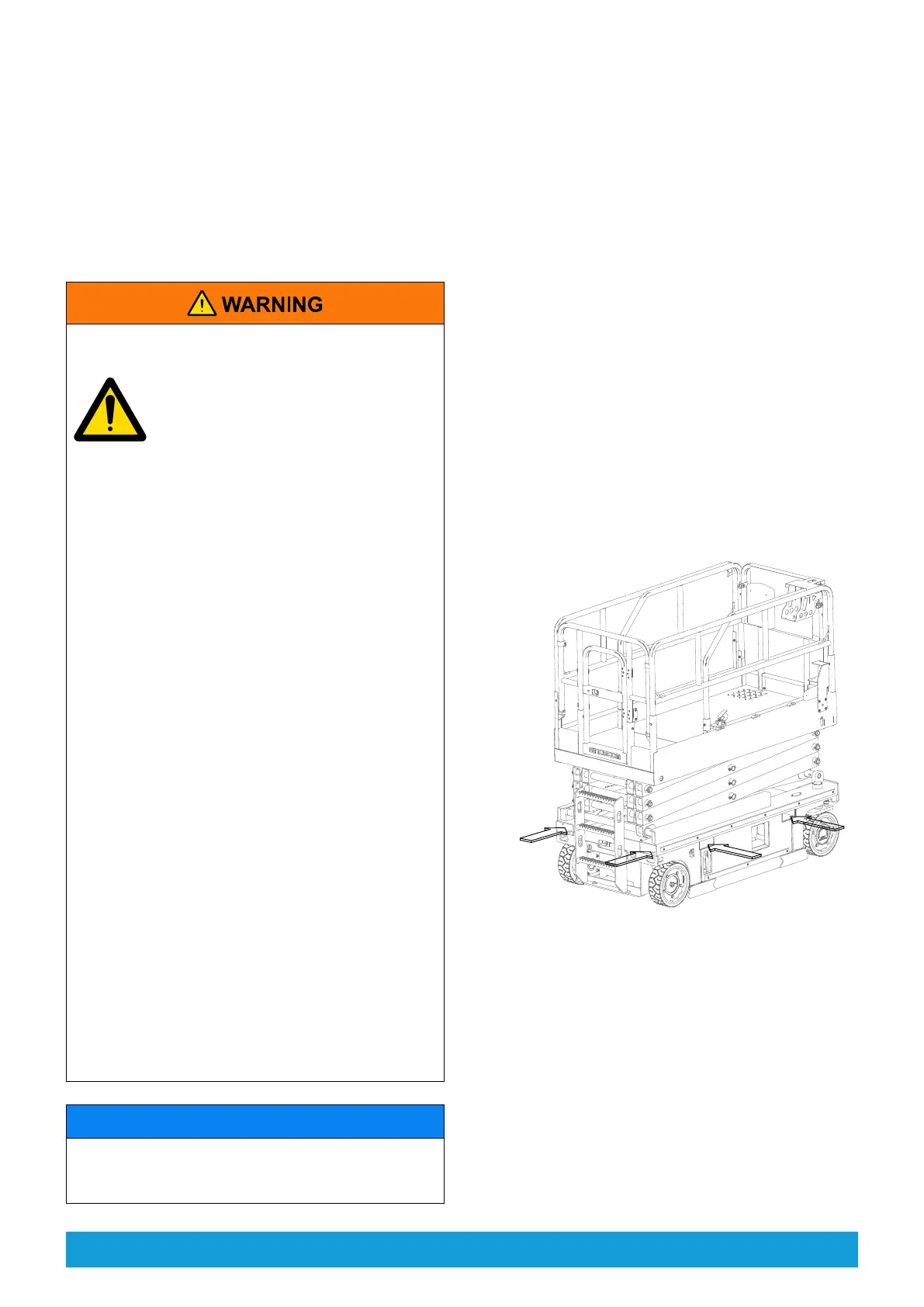

3. Use the forklift slots on the rear or side of the
chassis.
Figure 8-1
4. The forklift fork must align with the position of the
forklift slots.
5. Drive forward to the fork frame to insert it fully into
the slots.
6. Lift the machine by 16 in. (0.4 m) and then tilt the
fork backward slightly to keep the machine stable.
7. Keep the machine horizontal when lowering the fork
frame.
