Table 11-9 (Continued)
No. Part Number Part Name Quantity Comment
11 215030000004
Nut M6-A2-70 GB/T 6170
18
12 215010000054 Bolt M6×40-A2-70 GB/T 5783 2
13 215010000062 Bolt M8×45-8.8-ZnD GB/T 5783 2
14 215040000034
Washer 8-200HV-ZnD GB/T 97.1
2
15 215030000005
Nut M8-8-ZnD GB/T 6170
2
16
\
Nylon cable tie
\

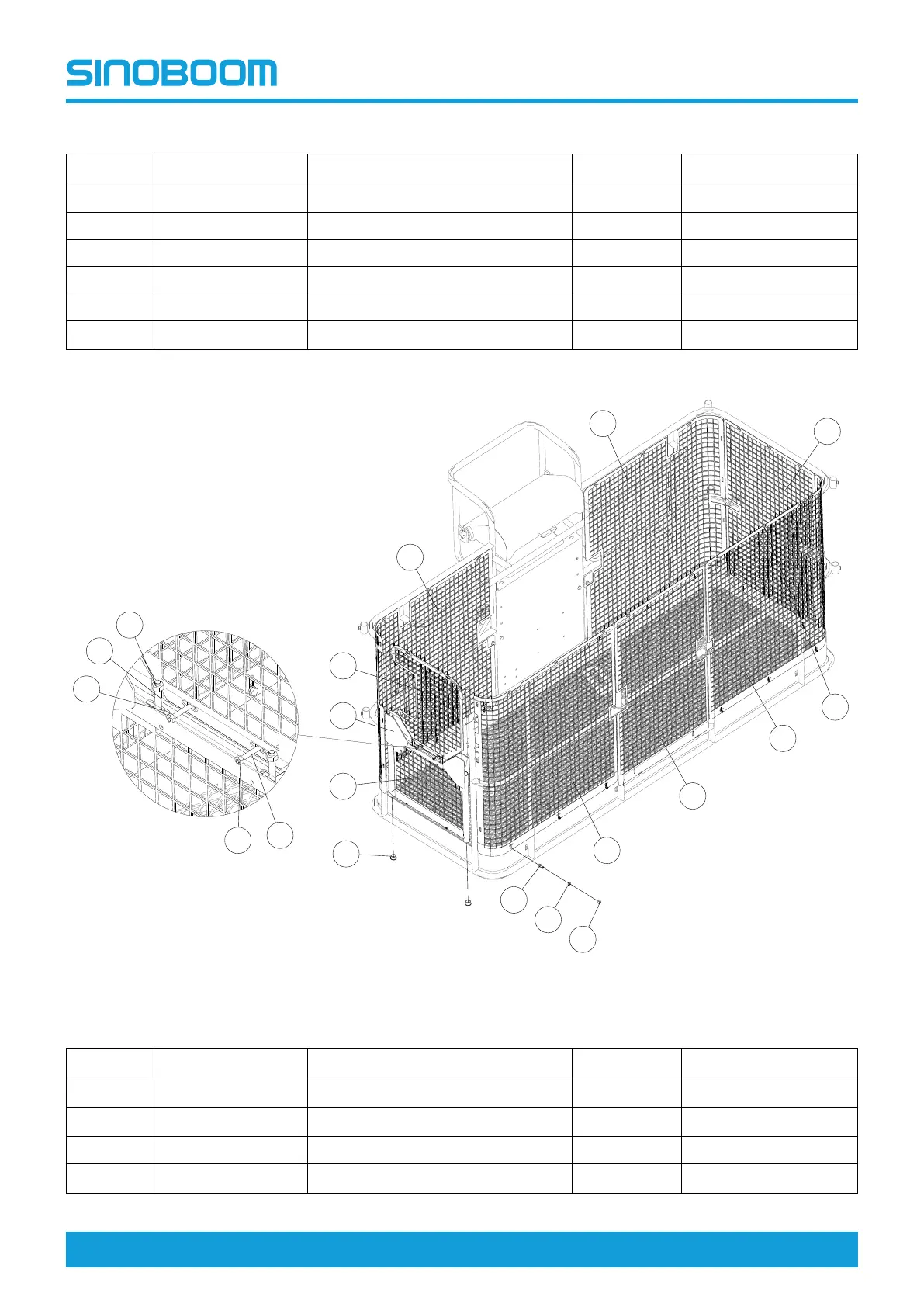

Parts list of full mesh
Fig 13
Table 11-10
No. Part Number Part Name
Quantity Comment
1 105064043106
Side mesh
1
2 105064043109 Front right mesh 1
3 105064043110 Front left mesh 1
4 105064043114 Upper side mesh 1
5
11
13
2
3
12
1
4
6
8
9
10
7
14
15
10
16
17
18
