7 HYDRAULIC SYSTEM
7.1 LAYOUT OF HYDRAULIC
ELEMENTS

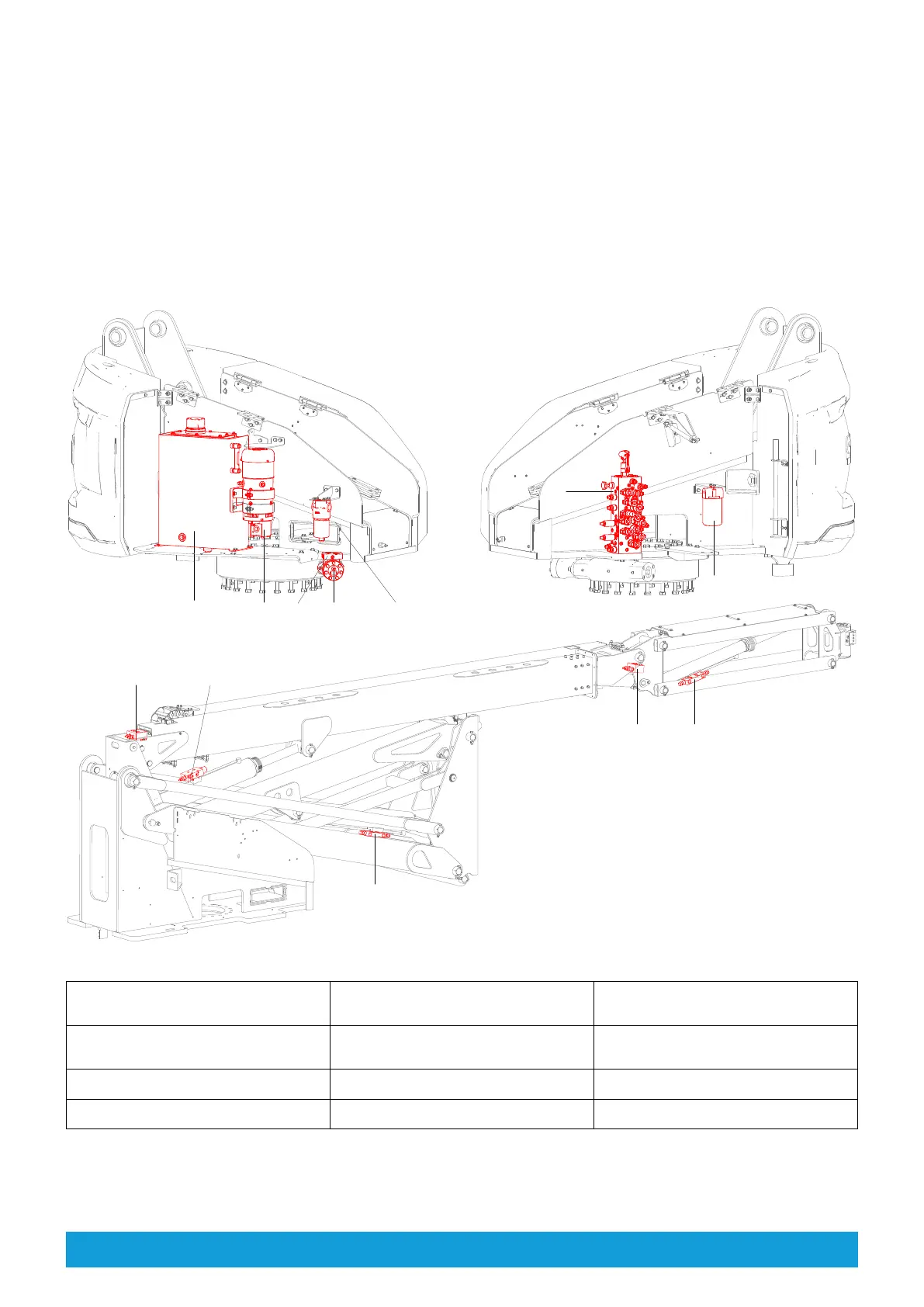

Table 7-1
1. Hydraulic tank
5. High-pressure filter 9. Main boom luffing counterbalance
valve
2. Power unit assembly
6. Boom function manifold
10. Bidirectional counterbalance
valve
3. Slewing transition block 7. Return filter
11. Leveling counterbalance valve
4. Cycloid motor
8. Telescoping counterbalance valve
1 2 4 5
6
8
9
10
10
11
3
7
