CHASSIS AND TURNTABLE ASSEMBLY
5. Adjust the machine to the position as shown in the
Figure (a) below.
6. As indicated by Page 41, Instruction for inserting
feeler gauge, insert the 0.04mm (0.0016in) feeler
gauge between the bolt and washer in the other
semicircle (turntable counterweight).
7. Make sure that the feeler gauge will not penetrate
under the bolt head to the bolt shank.

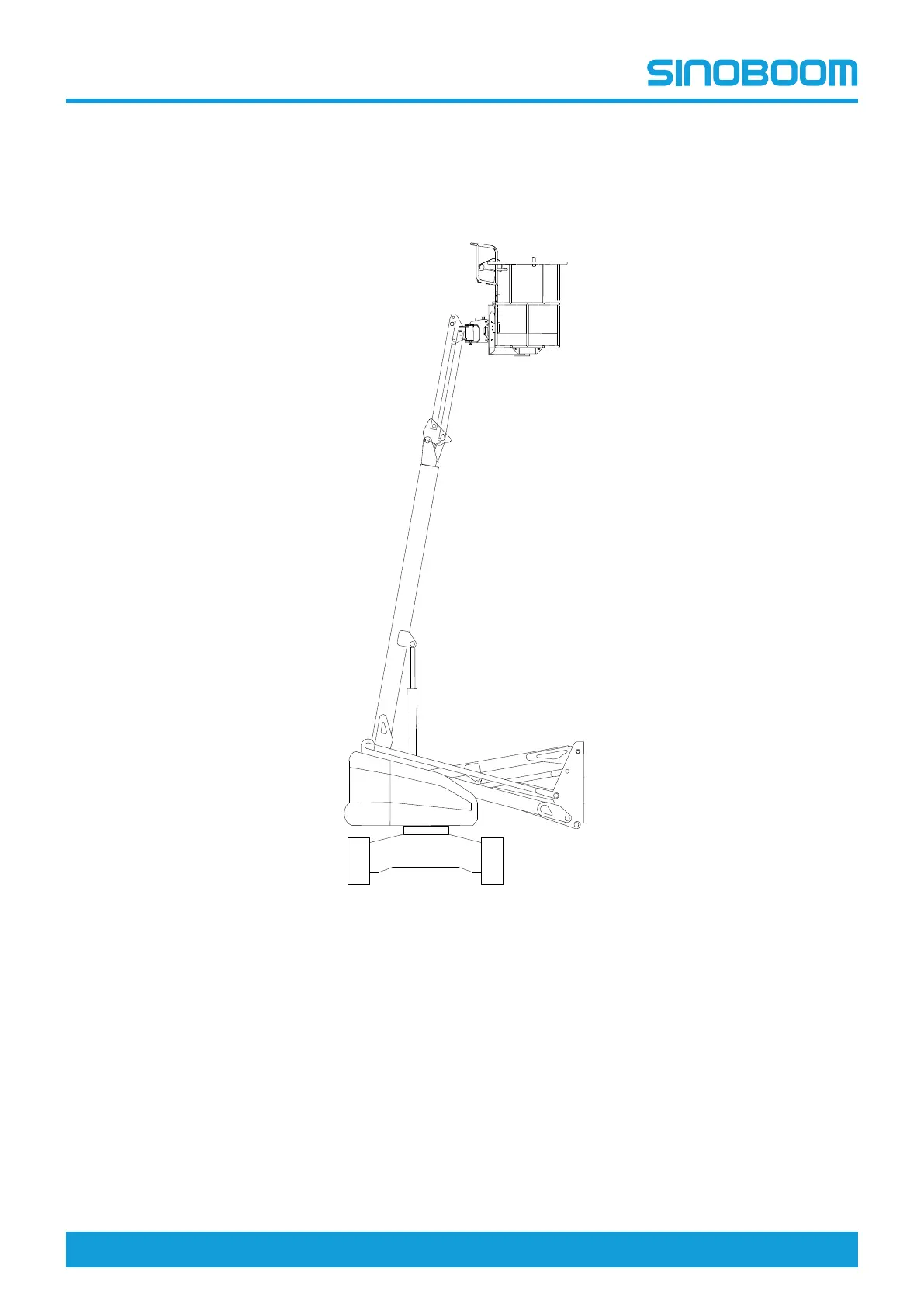

Fig 10 Checking slewing bearing connecting bolts (a)
1. Articulated boom fully retracted;
2. Main boom fully retracted and elevated.
