Sinoboom GTJZ0608 - Page 8

GTJZ0612
GTJZ0812
GTJZ1012
GTJZ1212

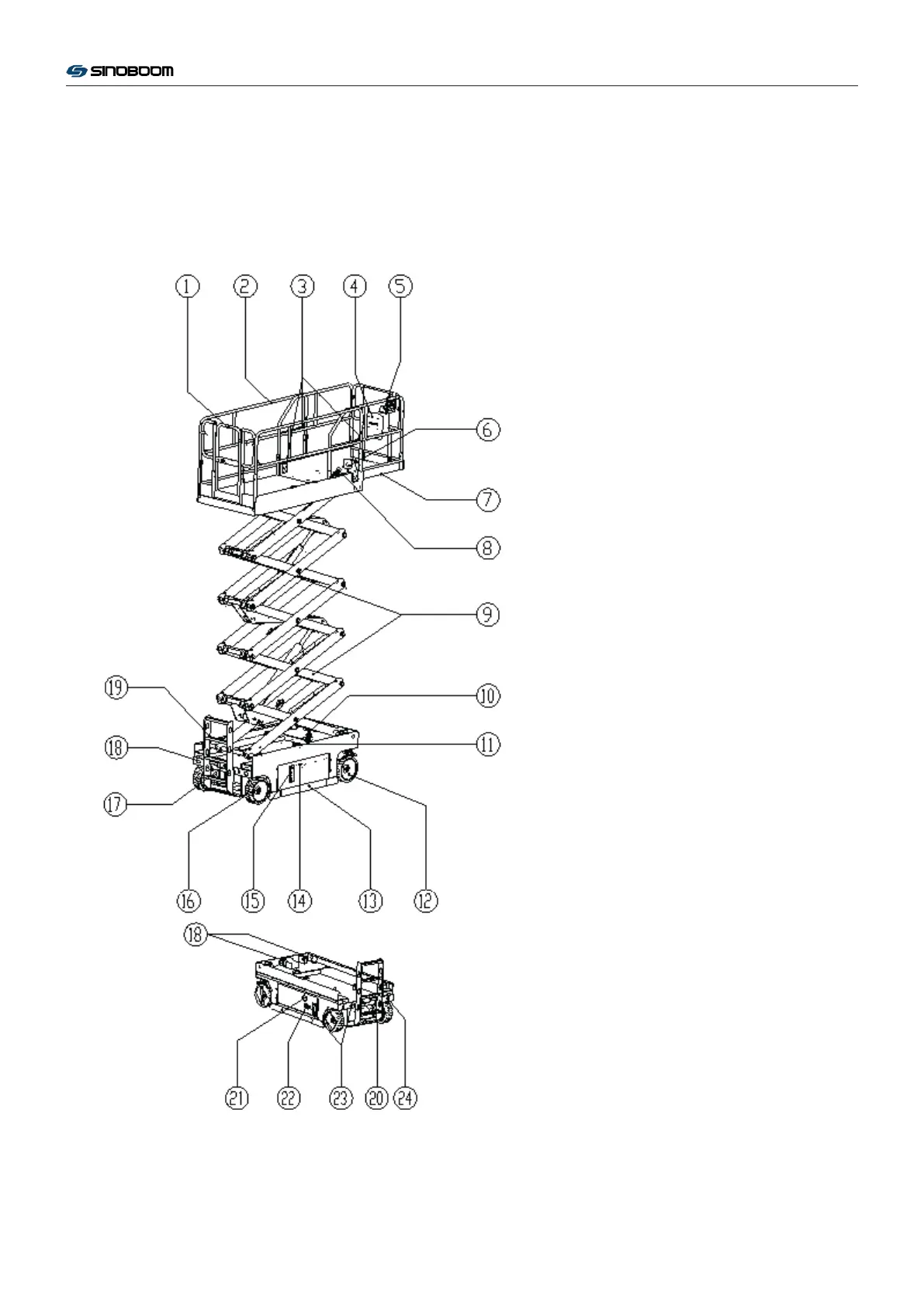

1 Entrance/Exit of platform
2 Platform guardrail
3 Mooring Point
4 File box
5 Platform controller
6 AC power socket
7 Extended platform
8 Extended footboard of platform
9 Safety rod (Inner middle insert)
10 Level switch
11 Warning light
12 Steering wheel
13 Protection mechanism of pot hole
14 LCD reading device
15 Ground controller
16 Rear wheel
17 Manual braking relief valve
18 Tr
ansport fastening position
19 Entrance ladder/transport fastening
position
20 Emergency drop handle
21 Power off switch
22 Battery charger
23 Charging plug
24 Platform plug
6
GTJZ0608 & GTJZ0808 & GTJZ1012 & GTJZ1212 & GTJZ0612 & GTJZ0812 Operation Manual
