GTZZ25J Operation Manual 2-1 © Nov. 2022
2 MACHINE COMPONENTS

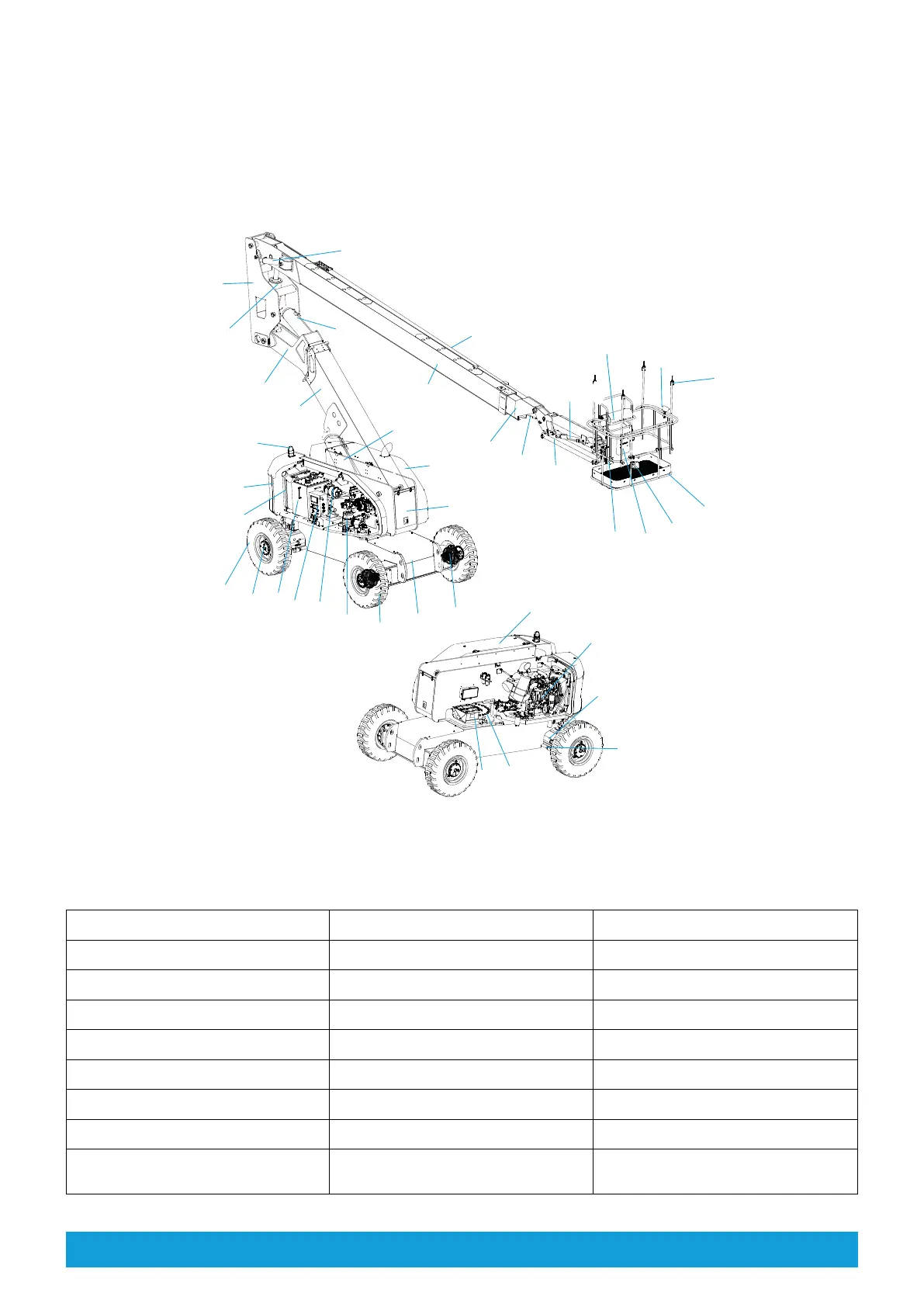

Figure 2-1
Table 2-1
1. Jib boom 14. Turntable cover (RH) 27. Travel motor
2. Jib boom cylinder 15. Turntable assembly 28. Turntable cover (LH)
3. Upper leveling cylinder 16. Warning light 29. Engine
4. Chain track system 17. Counterweight 30. Steering cylinder
5.Telescopic boom 18. Fuel tank 31. Steer linkage
6. Base boom 19. Front wheel 32. Slewing mechanism
7.Lower leveling cylinder 20. Travel reducer 33. Storage battery
8. Articulated boom leveling cylinder 21. Hydraulic oil tank 34. AC power socket (optional)
9. Connector 22. Ground controller 35. Manual storage compartment
(optional)
