3. WIRING OF POWER AND OUTPUT CIRCUITS
3.1 AC or DC- power connectors (X3)
Voltage: 230 VAC +/- 20 V or 115VAC +/- 10V or 24 VDC
Frequency: 45 Hz … 65 Hz (AC models)
Power cable: 3 x 1,5 mm
2
Connect a 115/230 VAC power supply or a 24 VDC power supply to connector
X3 (see Figure 5). Push the connector lever until the connector slot jaw opens.
Insert the power supply lead, then release the lever. Attach the ground wire to
the GND screw.
AC1 - power input (- terminal in 24 VDC model)
AC2 + power input (+ terminal in 24 VDC model)
GND Protective earth terminal.

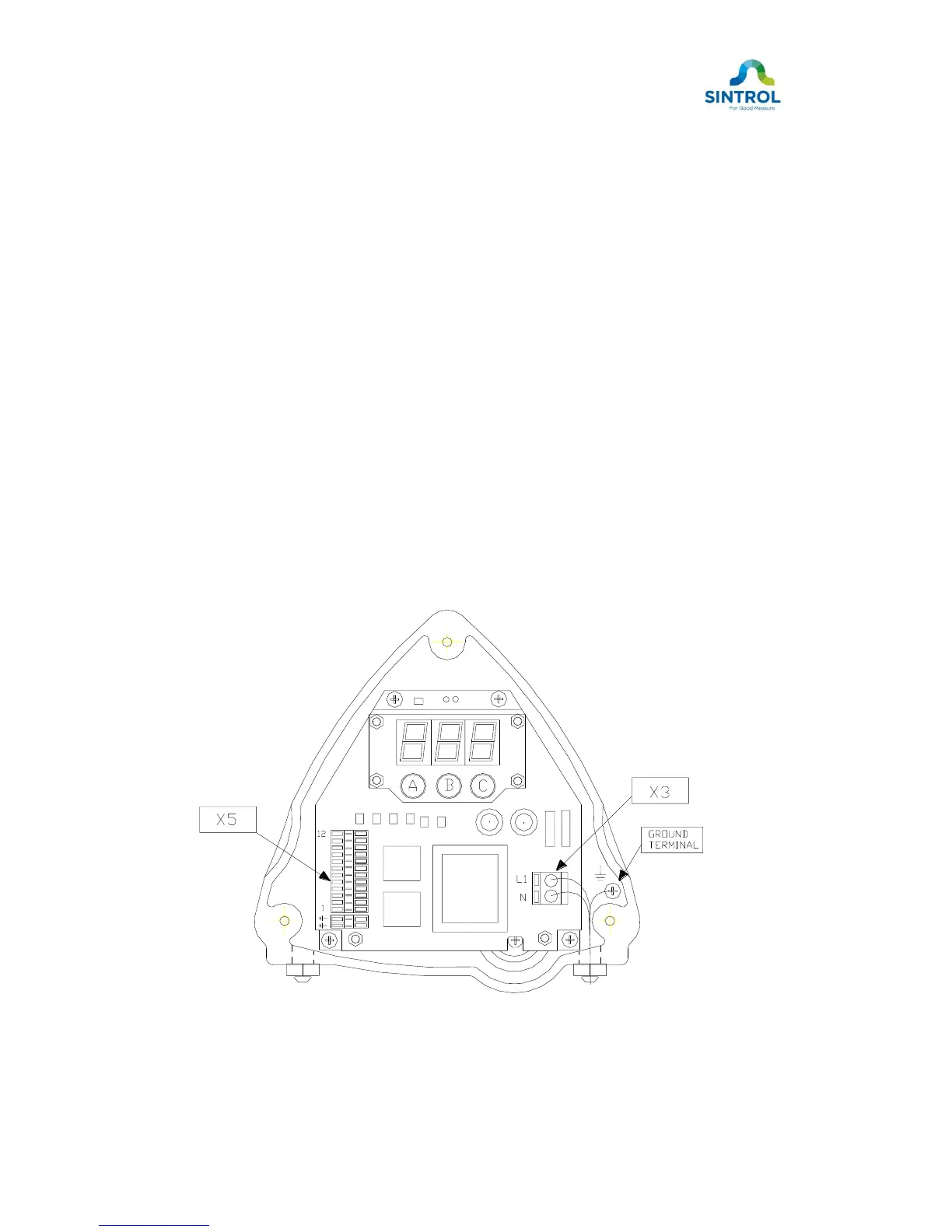

Figure 5. Wiring
