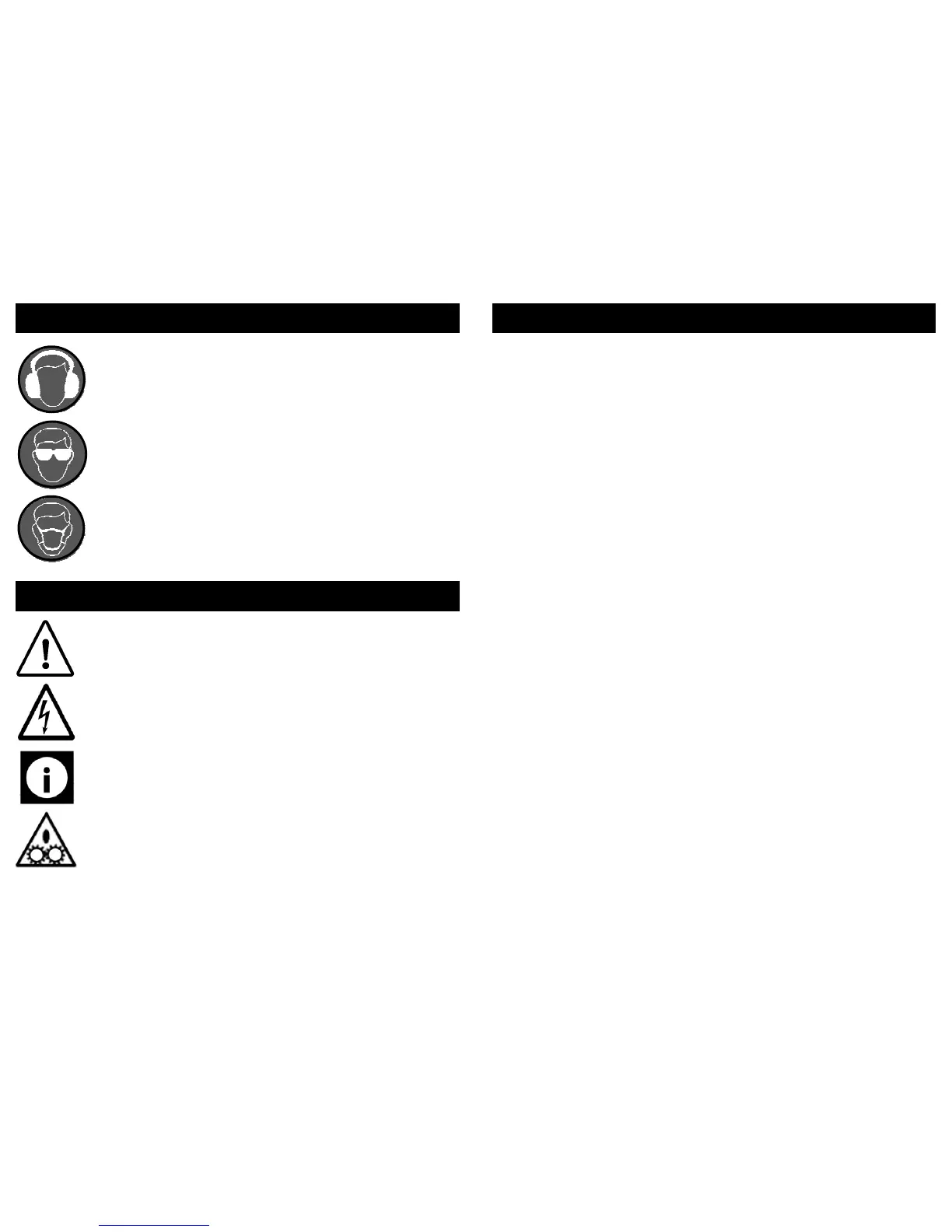

SAFETY SYMBOLS
When using the saw always ensure the operator as well as those in the
area wear ear protection.
When using the saw always ensure the operator as well as those in the
area wear eye protection.
Some wood and wood composites have the potential to be highly
toxic; always wear a face mask when operating saw.
Danger / Caution: Indicates risk of personal injury and/or the possibil-
ity of damage.
Warning: Risk of electrical injury or damage!
Note: Supplementary information.
Drawing-in / trapping hazard! Risk of personal injury to body parts or
clothing by being drawn into the rotating saw blades.
SAFETY SYMBOLS USED THROUGHOUT THIS MANUAL
33
PARTS LIST
Ref. Description Ref. Description
1. Allen bolt M6 x 20 29. Set collar, worm
2. Eccentric shaft 30. Worm
3. Base, eccentric 31. Insert, upper guide
4. Tyre 32. Gear, upper guide
5. Ring circle 17 mm 33. Thread, gear
6. Bearing 80203 34. Allen bolt M5 x 10
7. Ring circle 40 mm 35. Square tube, upper guide
8. Upper wheel 36. Rack, upper guide
9. Shaft, upper wheel 37. Sunk head screw M5 x 10
10. Tension bracket 38. Cover plate, upper guide
11. Upper wheel carrier bracket 39. Hex screw M8 x16
12. Spring 40. Mount, upper guide
13. Connector 41. Shaft bearing, upper guide
14. Cross pan head screw M4 x 40 42. Washer 6 mm
15. Hex nut M4 43. Carriage bolt M8 x 105
16. Washer 4 mm 44. Brush
17. Upper wheel tension bracket 45. Allen bolt M5 x 10
18. Tension shaft, upper wheel 46. Washer 5 mm
19. Hex nut M6 47. Sliding guard
20. Spacer bushing 48. Safe guard, upper guide
21. Hand wheel 49. Bracket, lower wheel
22. Cross pan head screw M6 x 16 50. Allen bolt M8 x 28
23. Allen bolt M6 x 12 51. Washer 8 mm
24. Lever, hand wheel 52. Bearing 80201
25. Screw set M6 x 10 53. Bush, bearing
26. Mount, upper guide 54. Nut, bearing
27. Thread tube 55. Allen bolt M6 x 16
28. Screw set M4 x 5 56. Guide base, upper guide
