32

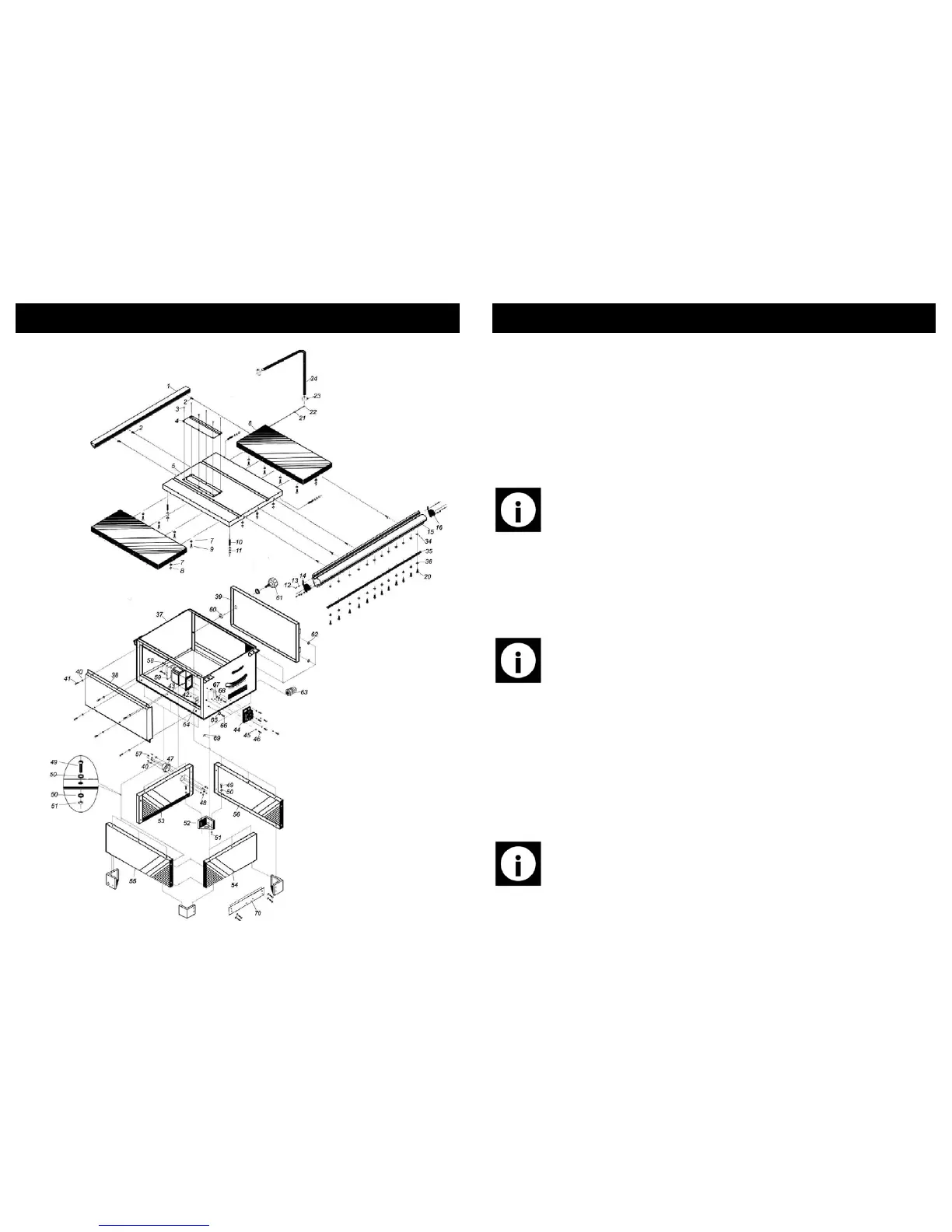

EXPLODED DIAGRAM (A)
13
ASSEMBLY INSTRUCTIONS
• Remove the sides and top of the packing container (leave the saw inverted and
on the bottom of the container).
• Remove all the other packaging and loose parts of the saw and check them
against the list on page 8 of this user manual to ensure that all of the parts are
accounted for.
•
Fitting the stand:
• Locate the 2 x side sections and the 1 x front and 1 x rear sections of the saw
stand and the fixing kit.
• Fix all the panels together by means of :-
⇒ 8 x M8 x 12 mm bolts.
⇒ 16 x 8 mm washers.
⇒ 8 x M8 nuts.
Fitting the feet:
• Locate the 4 x feet.
Note: Although the front and rear panels are the same size, the rear panel
is the one with the hole to allow the extraction outlet to be fitted.
• Fix all of the panels in their appropriate locations to the main body of the saw by
means of:-
⇒ 8 x M8 x 12 mm bolts.
⇒ 16 x 8 mm washers (one above and one below the panel / main body).
⇒ 8 x M8 nuts.
Note: Do not fully tighten the nuts / bolts at this time.
Note: Although all 4 feet look similar, there are some differences that mean
that each foot should only be fitted in its correct position. This is to allow
you to fit the optional wheel kit (SIP Part no. 06920) should you wish to at
a later date.
