ASSEMBLY INSTRUCTIONS….cont

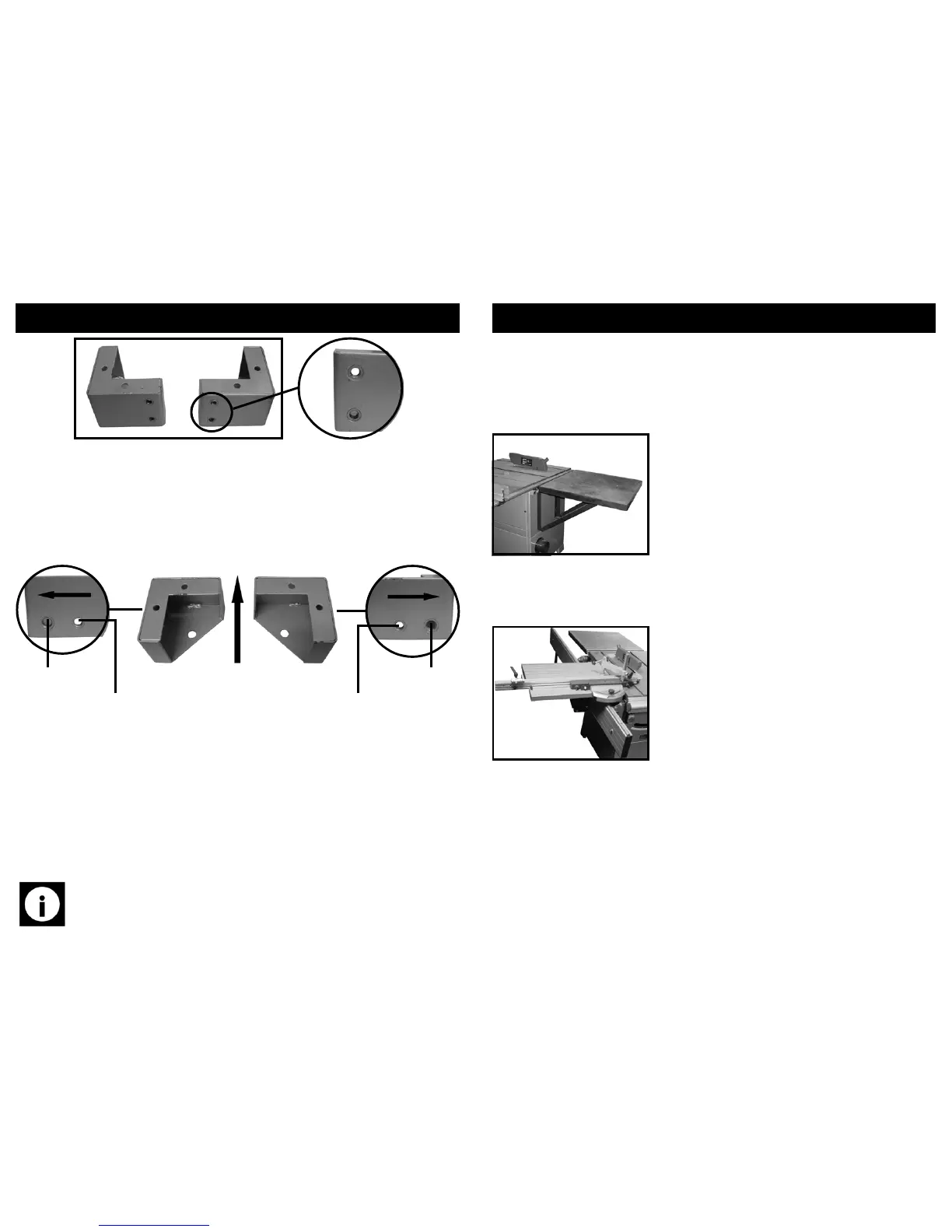

Fit the 2 x front feet by means of:-
⇒ 4 x M8 x 12 mm bolts.
⇒ 8 x 8 mm washers.
⇒ 4 x M8 nuts.
• The 2 x identical threaded holes (as shown above) should be vertical and on the
front edge of the saw if they have been fitted correctly.
Large hole Large hole
Small hole Small hole
Fit the 2 x rear feet by means of:-
⇒ 4 x M8 x 12 mm bolts.
⇒ 8 x 8 mm washers.
⇒ 4 x M8 nuts.
• There are 2 x differently sized threaded holes on the rear feet, the arrows above
should be facing towards the rear of the saw with the larger threaded hole fur-
thest back if the feet have been fitted correctly.
• Proceed to fully tighten all the nuts / bolts to fully secure the panels to the main
saw body, the panels to each other and the feet to the panels.
Note: The pictures are shown as if the saw was the correct way up rather
than upside down.
31
OPTIONAL EXTRAS
There are a number of optional extras available for this SIP Pro table saw. They have
been designed to make the saw as adaptable and as user friendly as possible.
Rear Extension Table - SIP part number: 01448.
The rear extension table provides extra support to larger work-pieces.
Sliding Carriage - SIP part number: 01447.
The sliding carriage makes cutting larger work-pieces easier and safer by providing ex-
tra support (particularly useful when cutting large sheets such as plywood etc).
Wheel kit - SIP part number: 06920.
The wheel kit allows the saw to be effortlessly moved from point to point, The same kit
also fits most of the other SIP Pro woodworking products. *
* Please note that a retro fit kit may be required to allow the wheel kit to fit some older versions of the SIP
Pro range.
To Next Page
