20
• Slide the rip fence against the saw blade, check that the red line of scale mount
lens lines up with the “0” on the scale which is located on the front rail.
• If it does not, slide the front fence rail left / right until it does.
• Once you are happy that the rails are correctly set, proceed to tighten all of the
bolts to ensure that the rails stay in their correct positions.
• Fit the micro adjust feature to the right hand side and below the scale housing.

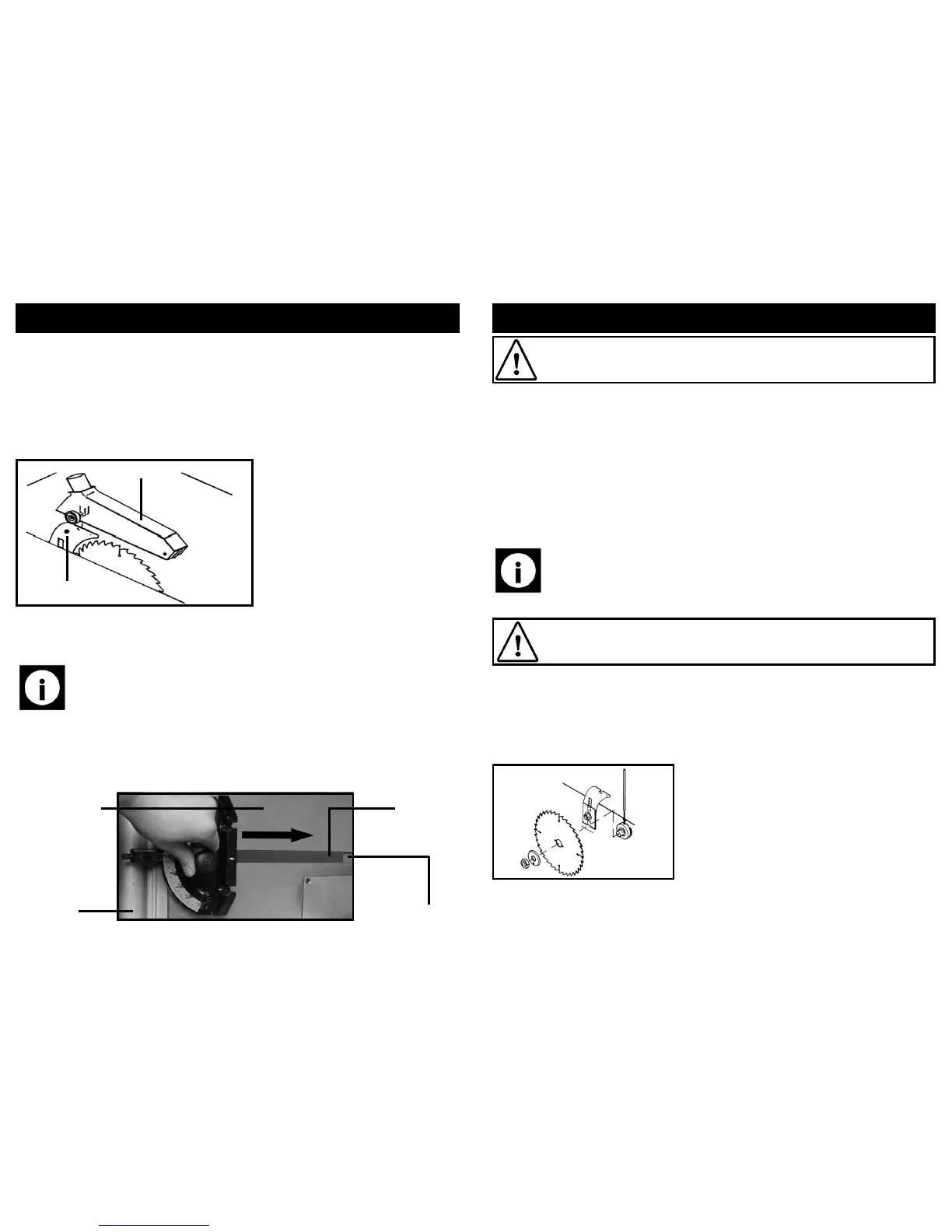

Fitting the blade guard:
ASSEMBLY INSTRUCTIONS….cont
A
B
• Line up the 2 slots on the riving knife with the 2 screws on the rip fence and
push down.
• Once the rip fence is positioned correctly the 2 screws should be tightened.
Note: do not over tighten the screws, the guard should move up easily and
fall back over the blade with gravity.
Fitting the mitre gauge:
• To fit the mitre gauge, simply slide the mitre gauge guide rod into the channel
on the main saw bed.
Front rail
Channel
Guide rod Main saw bed
25
CARE AND MAINTENANCE
Caution!
Prior to all adjustments and maintenance:
⇒ Switch the machine OFF.
⇒ Unplug the mains lead.
⇒ Wait until the saw has come to a complete stop.
After all adjustments and maintenance:
⇒ Check that all safety devices are operational.
⇒ Check for abnormalities, which may have been caused during the maintenance
procedure.
Note: Adjustments and maintenance procedures should only be carried out
by suitably qualified persons.
Changing the saw-blade:
Caution: Risk of injury by the blade’s teeth; Always wear the appropriate
safety gloves when handling blades.
• Remove the blade guard.
• Undo the table insert screws and remove it.
• Raise the saw-blade fully.
• Lock the saw-blade by turning it until the hole on the inner flange lines up with
the cut-out on the main saw bed.
• Insert the lock bar.
• Whilst using the lock-bar to hold the arbor shaft in-place, loosen and remove the
arbor nut with the wrench supplied.
