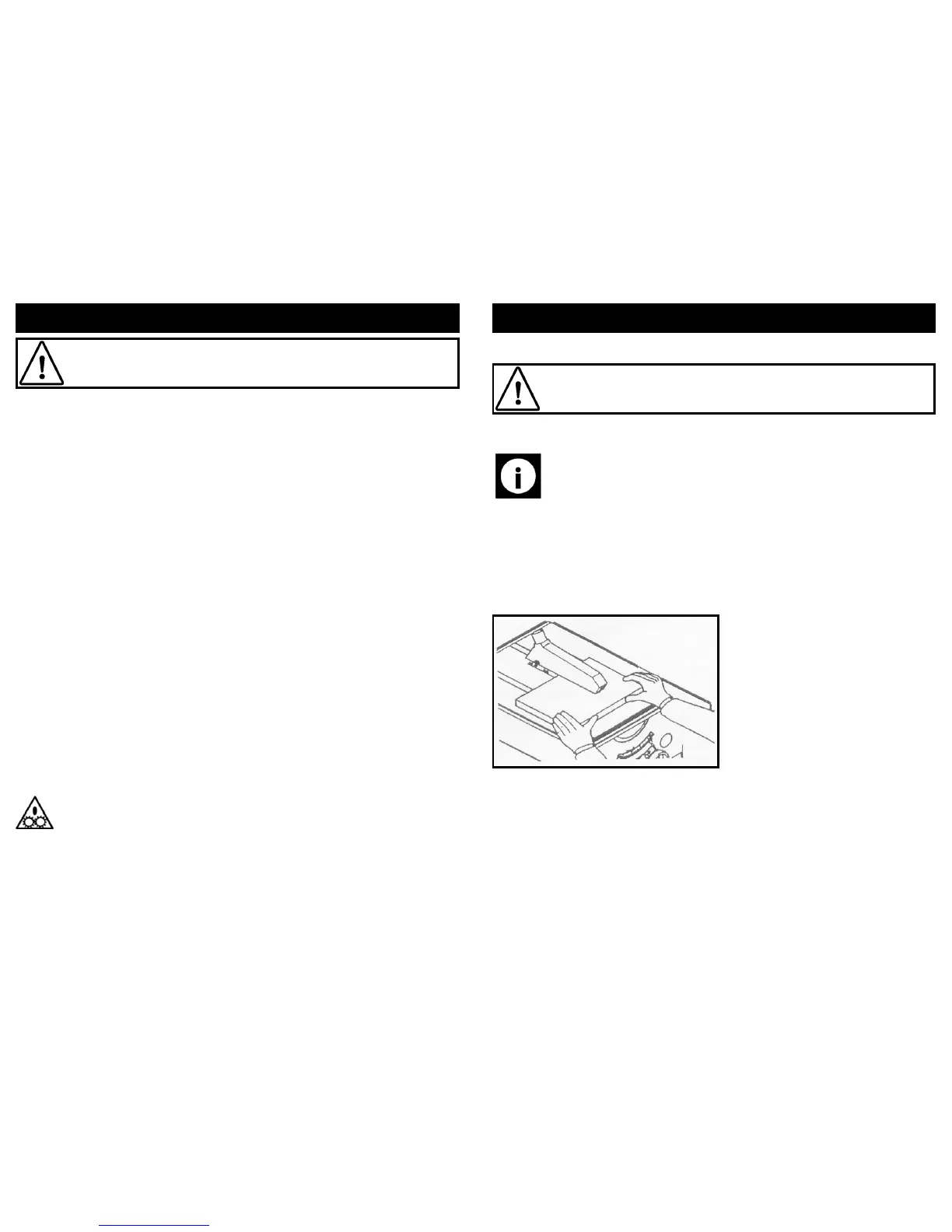

22
OPERATING INSTRUCTIONS
Caution: This saw may only be operated by one person at a time.
Other persons should stay a safe distance from the saw.
Before starting work, pay particular attention to ensure that the following are in correct
working order and that you understand all of the safety instructions:
Power source range: 230v +/- 10%, 50hz +/- 2%.
Always check safe operation of and that there is no damage to:
• Mains lead and plug.
• ON/OFF (NVR) switch.
• Riving knife.
• Blade guard.
• Push stick.
Use personal protection gear:
• Dust respirator.
• Hearing protection.
• Safety goggles.
Assume the correct operating position:
• At the front of the saw.
• Not in-line with the blade.
Avoid typical operator mistakes:
• Do not attempt to stop the saw blade by pushing the work-piece against its side.
Risk of kickback:
• Always hold the work-piece down on the table and do not jam it.
• Never cut several work-pieces at the same time - and also no bundles containing
several individual pieces, there is a risk of personal injury if individual pieces are
caught by the saw blade.
• Never cut stock to which ropes, cords, strings, cables or wires are attached or that
contain such material.
Drawing-in/trapping hazard!
23
OPERATING INSTRUCTIONS….cont
Making straight cuts:
Caution: For safe operation, do not force the work-piece into the blade,
feed it slowly and evenly and let the saw do the work.
• Set the correct depth of cut and lock the height by means of the height locking
lever.
Note: The blade height should be set so that it is just slightly higher than
the work-piece.
• Set blade tilt angle as required and lock securely into position.
• Mount the rip fence, if required.
• Set the work-piece onto the main table of the saw so that the blade guard rests
with its front edge on the work-piece.
• Start the saw and allow it to reach its full speed.
• Cut work-piece in a single pass.
• Switch machine off immediately if no further cuts are required.
Making mitre cuts:
• Slide the mitre gauge into the table slot (see page 19).
• Loosen the lock knob of the mitre gauge and set it to desired angle with the in-
dicator and re-tighten the lock knob to secure.
• Set the work-piece firmly against the mitre gauge.
• Cut work-piece by pushing the mitre gauge forwards.
