3. Attaching the Dust Collector Chute.
IMPORTANT: Please note that the Dust Chute must
always be in place, the machine will not operate if is
removed.
11

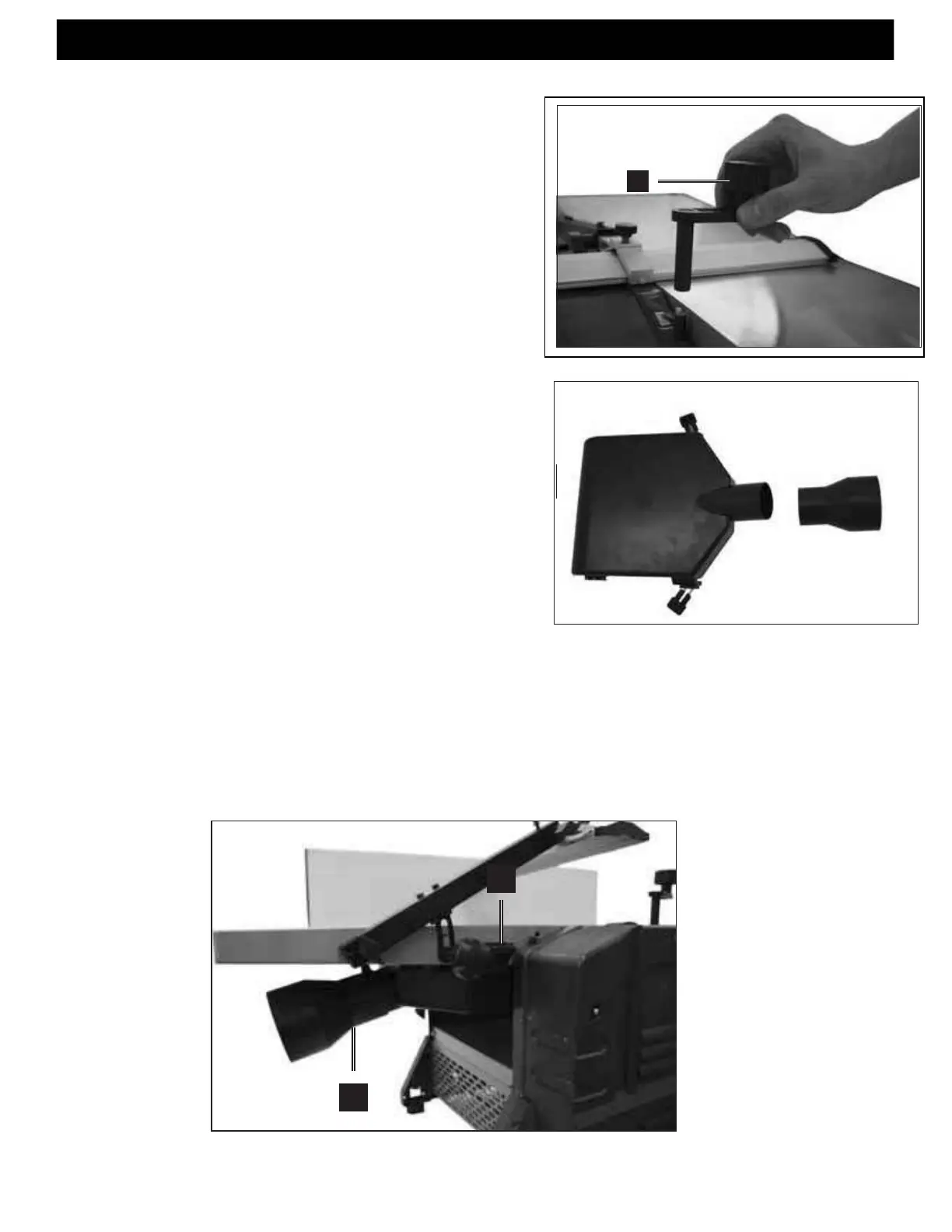

ASSEMBLY Cont.
2. Attaching The Table Adjustment Handle
Slide the table handle on to the shaft.
Fig.2
Fig.3
Fig.2
Fig.3
A. For Planing
1. Lower the Thicknesser Table as far as possible by turning the table adjustment handle fully anticlockwise.
2. Pull out the two Inter-Locking Tongue keys (3) and manoeuvre the Chute (5) into the space beneath the
table. Ensure both Locking keys are pushed firmly into the slots in the table.
Positioning the Dust Collector Chute .
12
5
3
