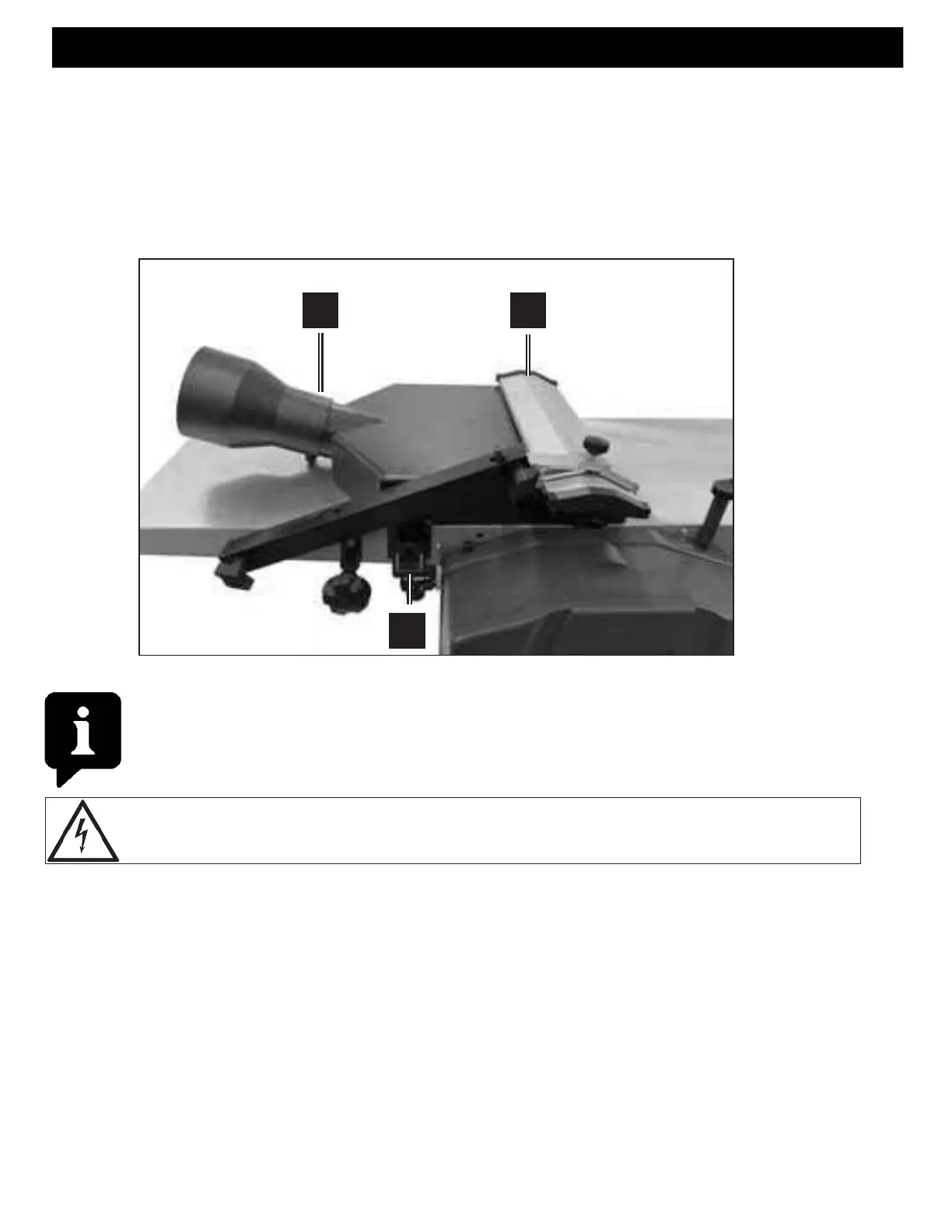

B. For Thicknessing
1. Remove the Angle Fence (8).
2. Push the Cutter Guard (9) out of its holder so that the Chute (5) may be attached to the table.
3. Ensure both Inter-Locking Tongue keys (3) are pushed firmly into the slots in the table.
12
ASSEMBLY Cont.
Warning: Risk of electrical injury or damage.
Do not bypass the inter-locking safety switches
Note: The Planer Thicknesser will not run without the extractor chute fitted correctly
The machine is fitted with 2 inter-locking safety switches.
5
3
9
