12
Circuit Breaker
Safety Switch

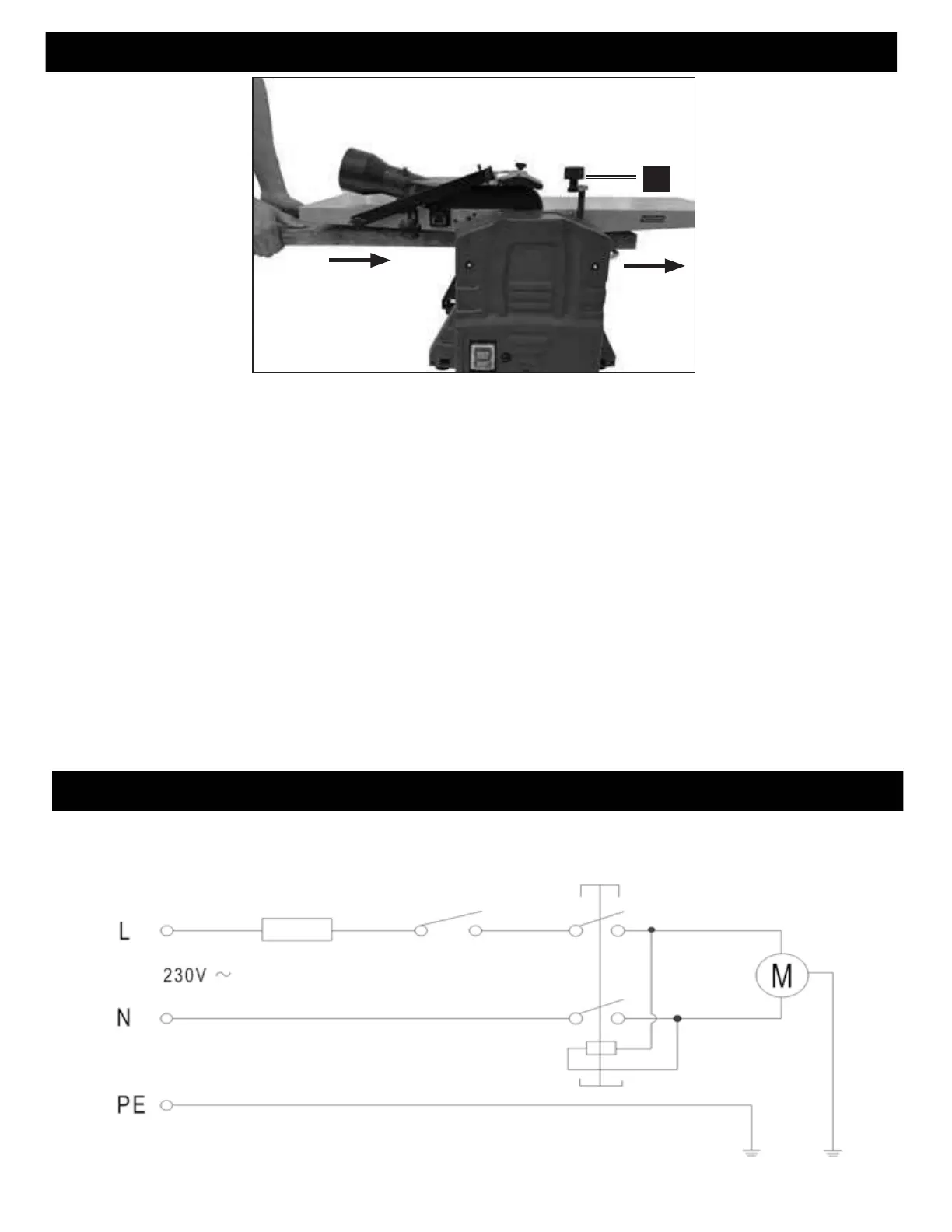

WIRING DIAGRAM
OPERATING INSTRUCTIONS Cont.
General Information:
For best results try to plane / thickness following the grain. This will reduce the amount of further finishing
required.
For rough sawn timber requiring finishing on all 4 sides:-
Set the machine for planing.
Identify the flattest of the two wider faces on the timber.
Pass that side over the planer as many times as necessary until a flat and smooth finish is achieved.
Hold the planed side firmly against the guide fence (set at 90 degrees to the bed) and pass the narrow side over
the planer as many times as necessary until a flat and smooth finish is achieved.
You should now have two planed sides at 90 degrees to each other.
Set the machine up for thicknessing.
Pass the timber through the thicknesser with the wider already planed side facing down against the bed.
Continue until the desired thickness for the timber is reached.
Finally, pass the timber through the thicknesser with the planed narrow side facing down against the bed.
Continue until the desired thickness for the timber is reached.
Fig.C
16
