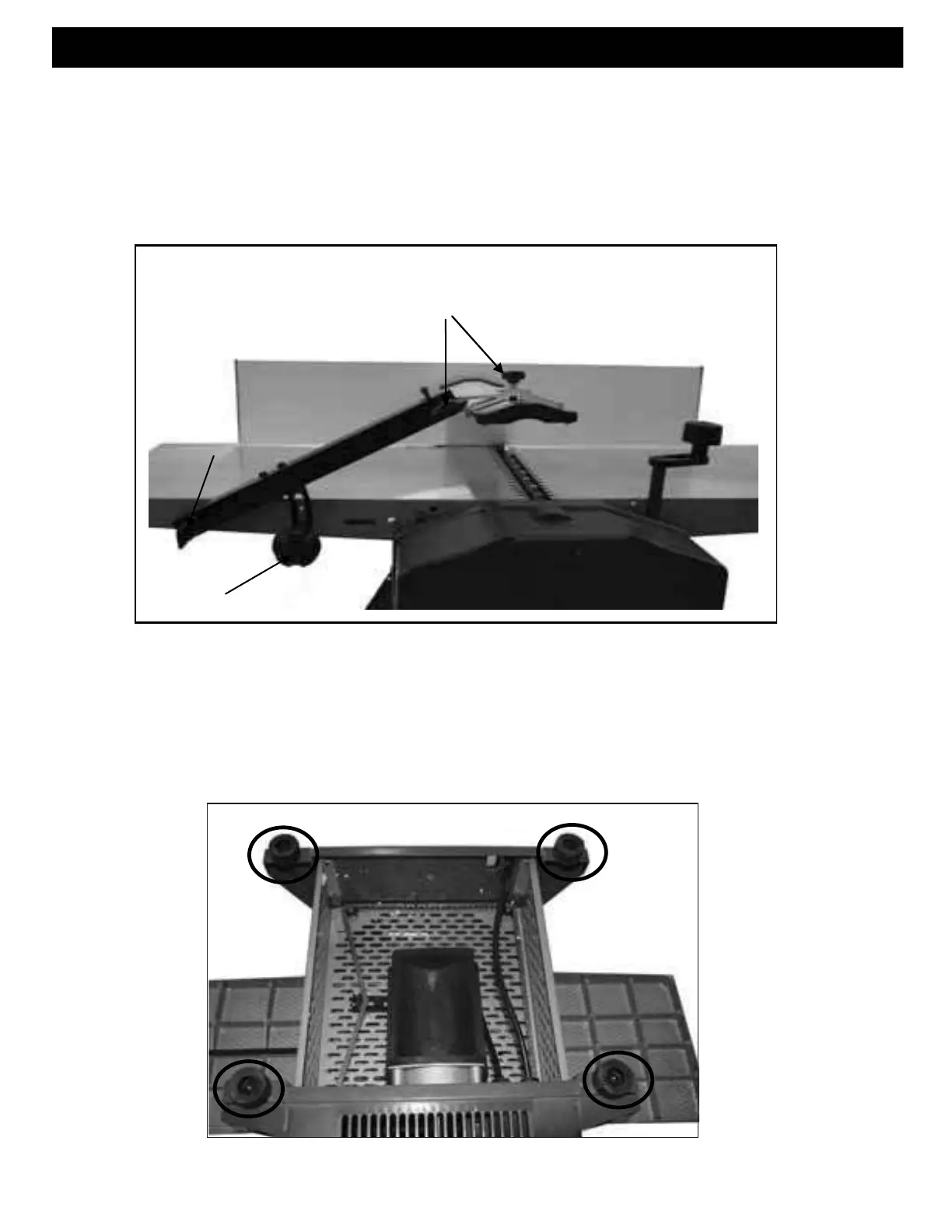

4. Attaching the Cutter Guard System
1. Place the pivot screw (X) in the position. Use this to lock the guard arm.
2. Screw in the Angle Adjusting hand-wheel (Y).
3. Use the two Thumb screws (Z) for fine angle adjustment.
X
Y
Z
5. Attaching Rubber feet
1. Secure the four rubber feet to the bottom side of the equipment using the Allen screws and washers
supplied.
13
ASSEMBLY Cont.
