SILVERCUT
15

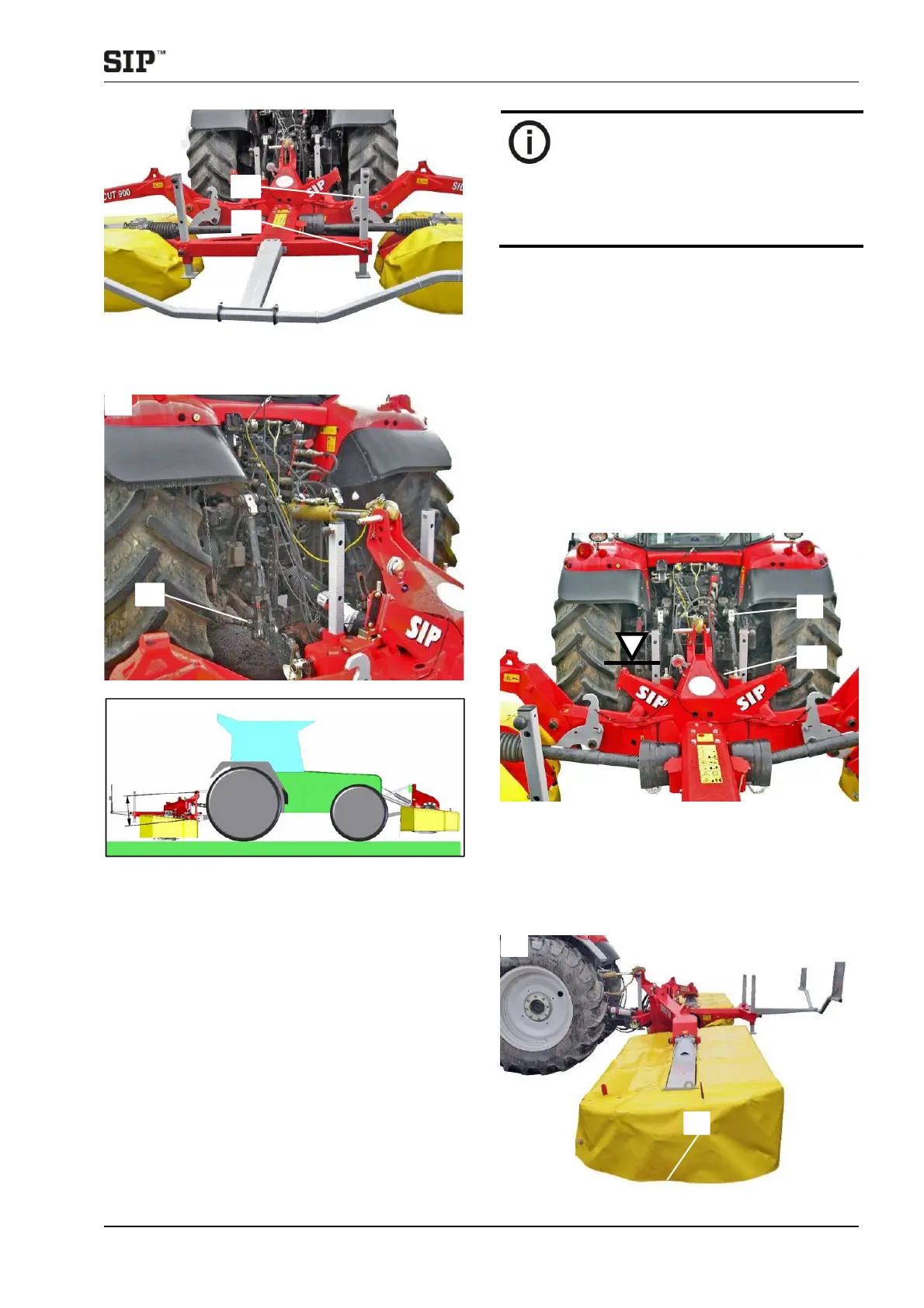

Approach the mower with the tractor.
Connect the lower hydraulic lift mechanism (1)
and secure with toggle (2).
Place the top link (3) to the available height on
the mower, the angle between the lower
hydraulic bars (1) and the top link should be
bigger than 3 degrees (Fig.).
Secure the bolt with the toggle (4).
Lift the support legs (5) and secure them with
toggle (6) in the upright position. Do not remove
the support legs!
Fix the lower hydraulic bar (1) with the lever (7) on
both sides.
The raising speed of the mower must be
adjusted so that the mower is placed back
into the transport position without
jerking.
We recommend using the upper hydraulic
bar (3).
2.2.1 Transverse adjustment of the hitch
The following criteria must be ensured when the rod is
on the arms of the three-point hitch:
The machine must always be in the centre of the
tractor and perpendicular to the driving direction
and fixed (set the position of the tractor arms (1)
and fix them with the levers);
The machine must always be parallel with the
ground and perpendicular to the direction of
movement (adjust the nut on the three-point lift
(2).
2.2.2 Parallel hitch adjustment – at the same time
the grass cut height adjustment
In the direction of movement of the tractor, the hitch
must always be inclined at an angle of 2º.
5
5
6
6
7
7
at least 3°
8
1
2
9
1
