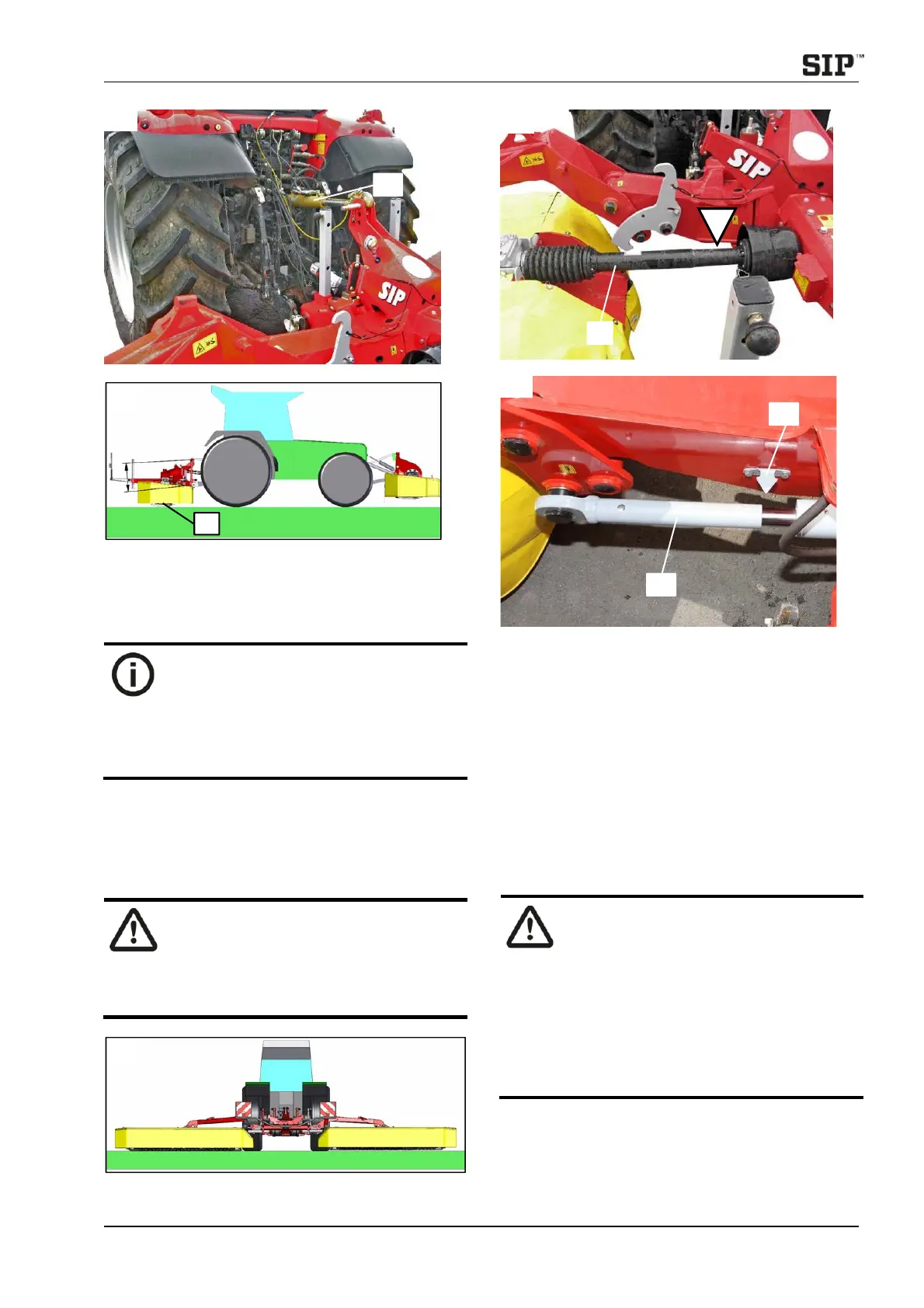

Instruction for work
16
Check if the hitch is leaned forward for 2º. A look
at the curtain (1) may help: its lower side edge
should be equally distant from the floor.
Adjust the upper bar (2) suitably.
The recommended inclination allows
mowing at a height of 40 - 70mm.
The support legs are made to enable
the mower to be leaned forward for
the angle of 2º when disconnected.
The maximum angle in the direction of
movement must not exceed 7º.
2.2.3 Adjusting the working height of the
connection
Maximum angle of ground adaptation is 15º.
After adjusting the working height of
the tractor arms, block them.
Properly adjusting the working height
of the hitch prevents overload when
working on an uphill slope (material
damage).
The mower should be in work position.
Check if the cardan (1) is in horisontal position.
Lift or lower the mower with the three point
hydraulic hitch. Use the arrow (2) in the position
on the edge of the cylinder of the hydraulic
cylinder (3) for orientation.
2.3 P.T.O.shaft
2.3.1 General
After connecting the machine to the 3
point hydraulic hitch bar switch off
the engine and pull out the ignition
key. Secure tractor against
movement!
The secondary cardan shaft is
implemented with a friction clutch.
The friction clutch protects the
tractor and mower against damage.
Do not handle the friction clutch
during operation!
10
2
11
1
12
13
1
14
3
2
at least 3°
