Reader Overview
2
INfinity 510 User’s Guide, P1.04

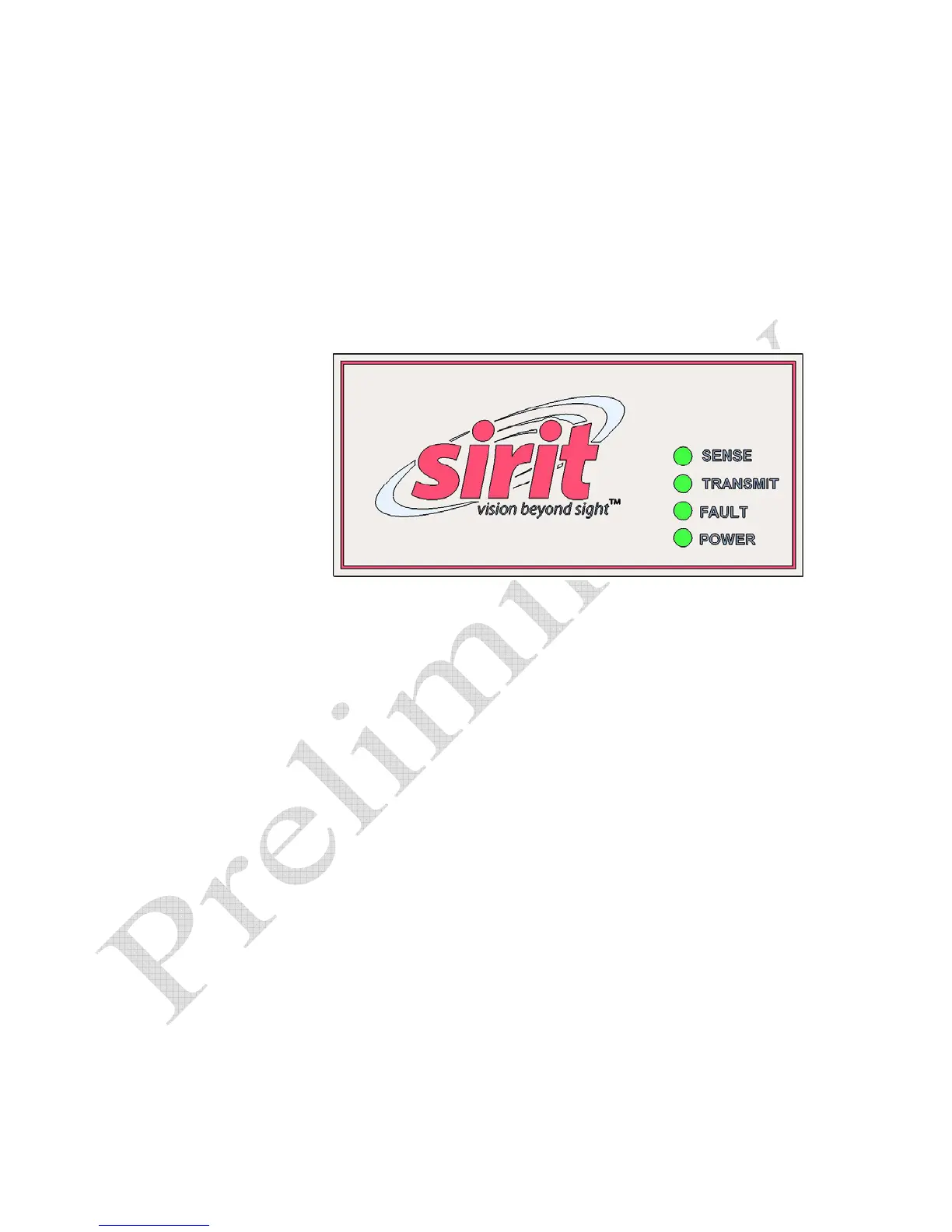

The INfinity 510 is equipped with four status indicators located on the top of
the enclosure. These LEDs provide indication for the following:
h Sense – Indicates reader has detected a tag in the RF field.
h Transmit – Indicates the reader’s transmitter is operating (RF on).
h Fault – Indicates a fault occurred.
h Power – Indicates that power is applied to the reader.
During power up, the LEDs will momentarily flash.
