CONNECTION TO THE TRACTOR AND TRANSPORT
39
Hoses position
is in parking
position

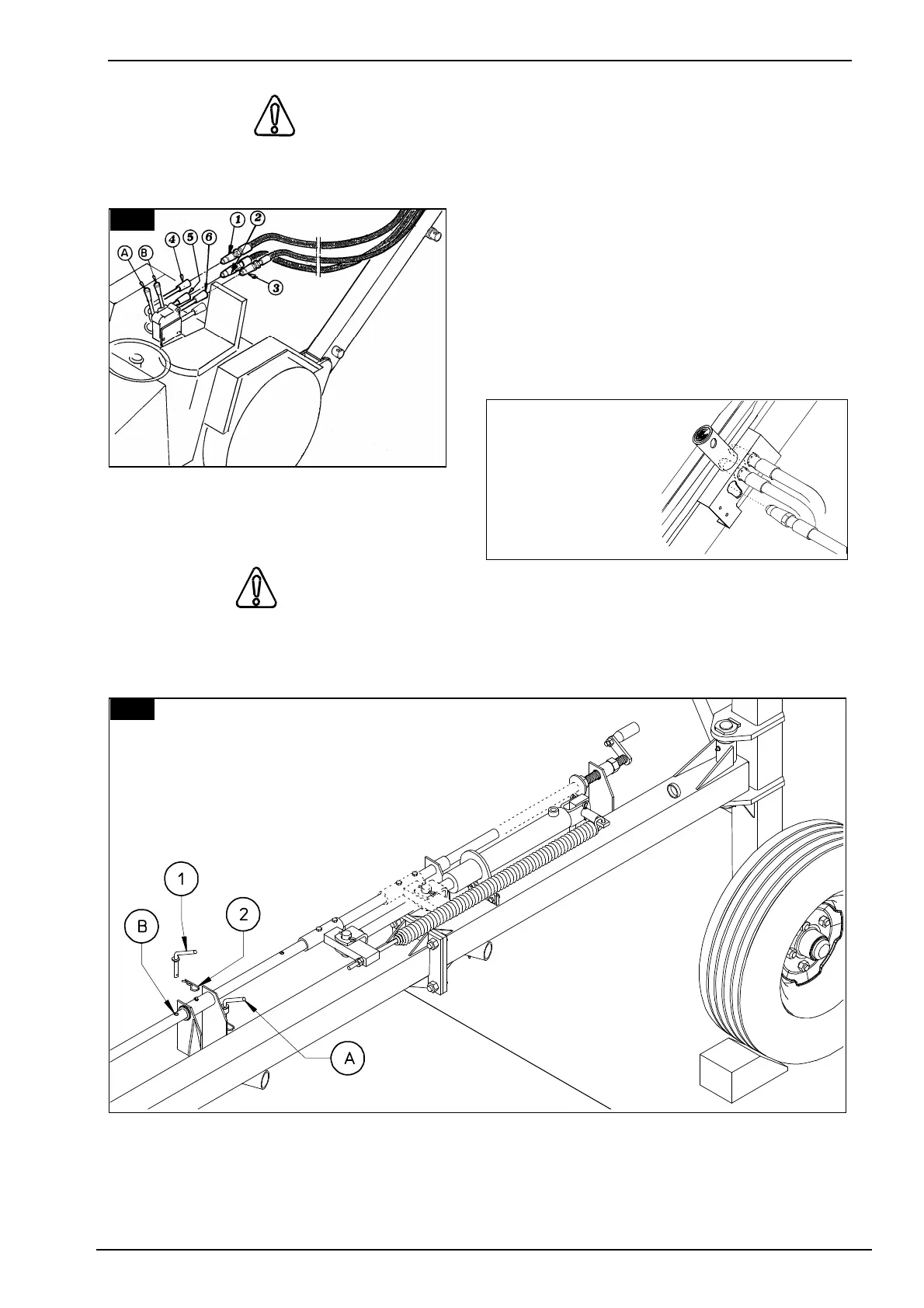

39. CAUTION
At this point the quick-release couplings of hoses 1-2-3 should be attached to the relative tractor
couplings 4-5-6. The movements of the
machine are now controlled by operating
levers A & B. Hoses 1 & 2, connected to
couplings 4 & 5, control the cylinders for
opening the machine. Hose 3, connected to
coupling 6, controls the cylinders for lifting the
rake wheels. It is recommended that all
movements be repeated a few times to
eliminate air from the system. The machine is
now ready for operation.
40. CAUTION
During transport it is necessary to move pin 1 and clip 2 from position A to position B. This
removes the load from the rake wheel lifting cylinders.
In this step, you will use:
Item 1: 2 - pins D 10 x 63 (D 25/64" x 3" 30/64")
39
40
