CENTRAL WHEELS KIT
55
9.14

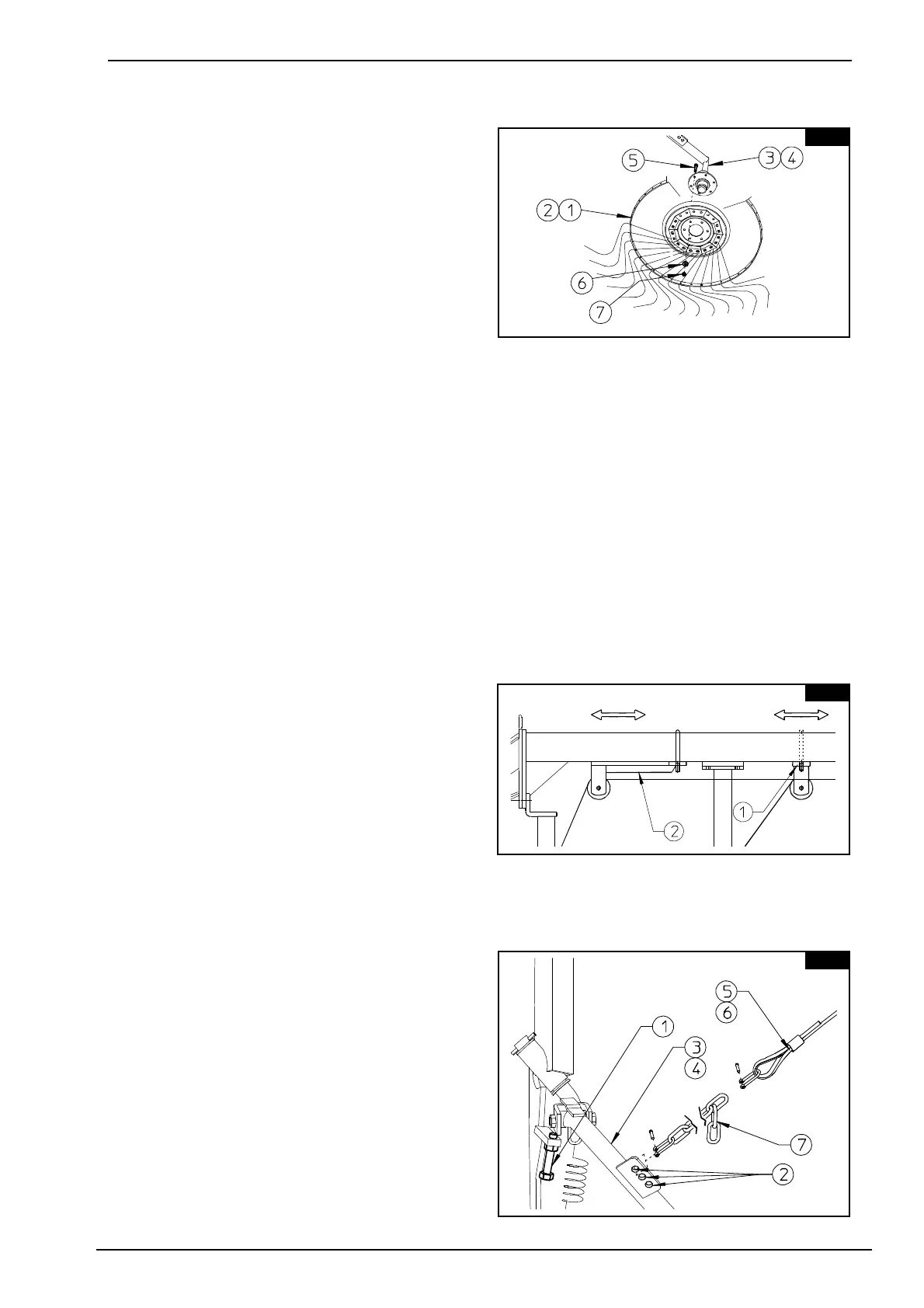

Mount rake wheels 1-2
to rake wheel arms 3-
4 and fasten with
screws 5, grower 6
and nuts 7.
In this step, you will use:
Item 5:12 screws M10 X 25
(2/64" x 1")
Item 6:12 growers ø10.5-17x2.5
(ø27/64"-11/16" x 3/16")
Item 7:12 nuts M10 (25/64")
10. Central wheels kit: adjustement for use
So far we have described how to assemble the central rake wheel standard kit. Should the
operator feel the operational results unsatisfactory, we now describe points where adjustments
can be made.
10.1
In order to improve lift, the
rake wheels can be moved
backwards or forwards compared
with the position shown at point
1 and the pulley support 1-2.
10.2
The adjusting screw 1 can be
used to improve both lift and/or
pressure of the rake wheels on
the ground. Either of the holes 2
in the arms 2-3 (front-rear) can
be used and a different ring in
chain 7 from the one shown in
point 13 can be attached to cables
5-6 (front-rear).
