CENTRAL WHEELS KIT
54

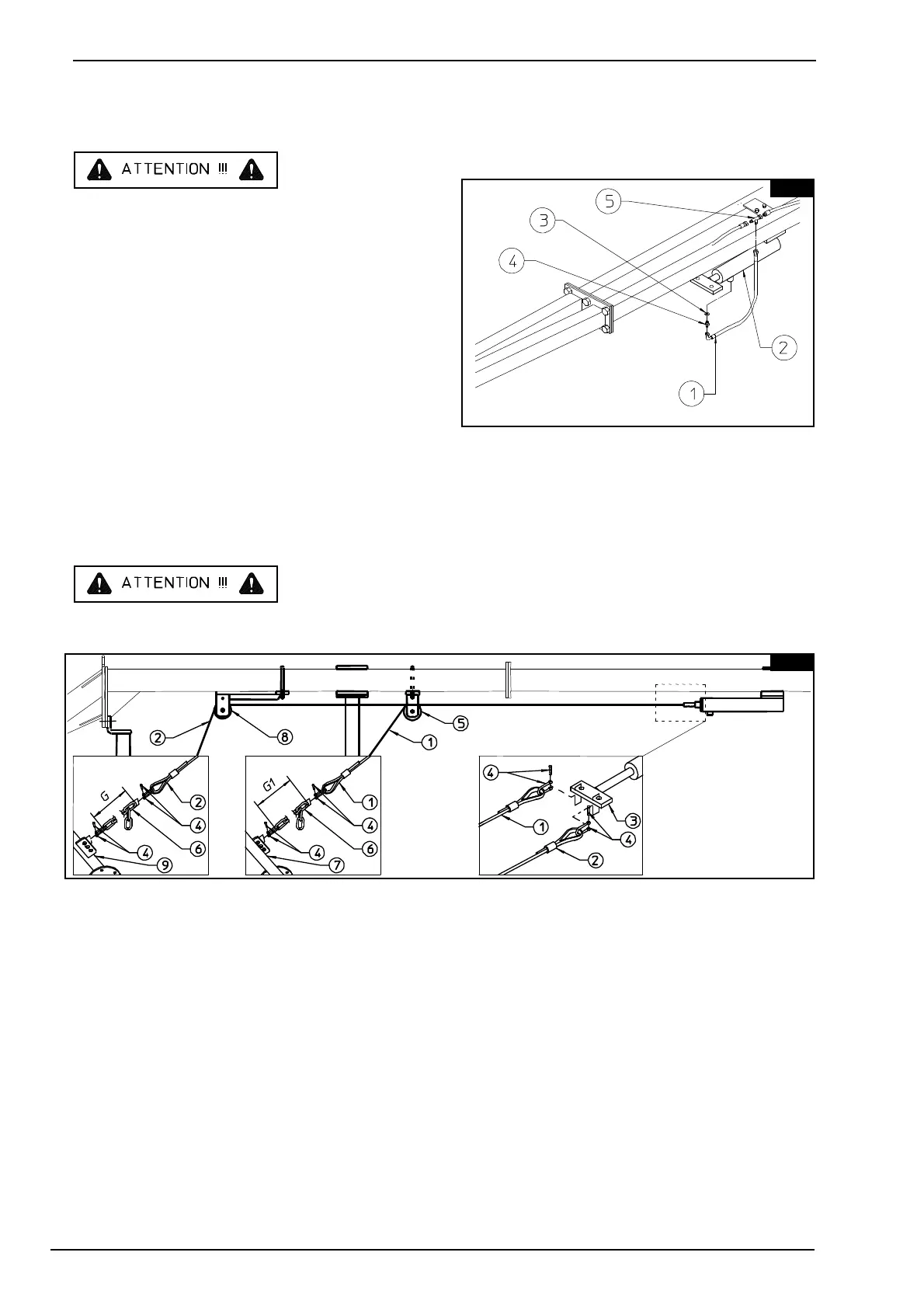

9.12
Fasten hose 1 to cylinder 2 using
copper washer 3 and nipple 4.
Connect "T" connector 5 between
the two hoses as shown in the drawing.
Connect the hose 1 to "T" connector 5.
In this step, you will use:
Item 1: 1 hose (3/8") length
480 (3/8" x 19")
Item 3: 1 copper washers 3/8"
Item 4: 1 nipple 3/8"
9.13
Fit cables 1-2 to cylinder 3 by using clamps
4.
Insert cable 1 on pulley support 5.
Fit chain 6 to rear wheel support 7 by using
clamp 4.
Connect to indicated rate chain 6 to cable 1
by using clamp 4.
In this step, you will use:
Item 1: 1 cable length 1000
(39 21/64")
Item 2: 1 cable length 1730
(68 7/64")
Item 4: 6 clamps 5/16"
Item 5: 2 chain length 280
(11")
Note : G = N° 2 rings of chain
G1= N° 2 rings of chain
