CENTRAL WHEELS KIT
53

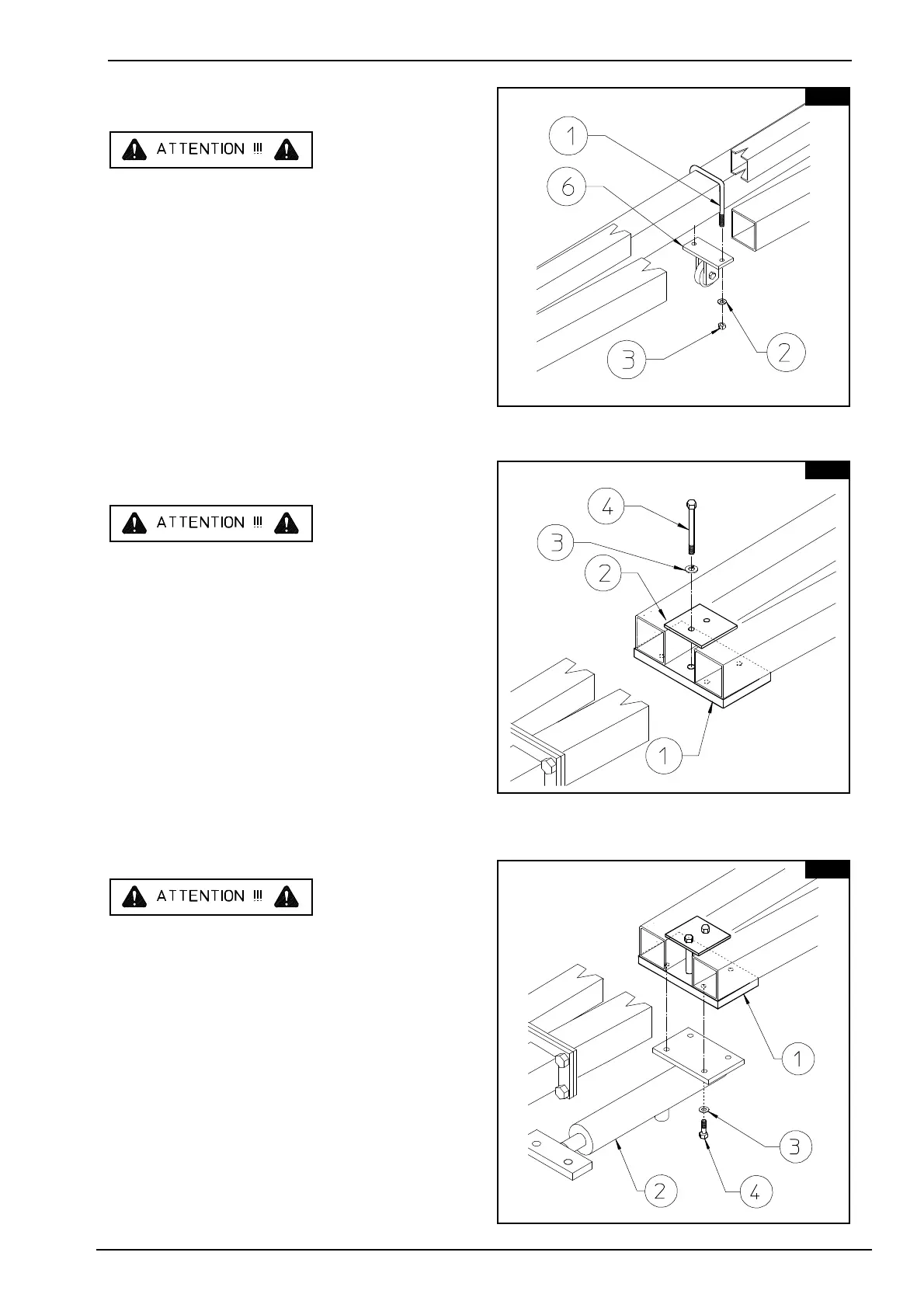

9.9
Place the pulley support 6 against
the lower part of the drawbar and
fasten it with U bolt 1, washers 2
and nuts 3.
For positioning, see point 1.
In this step, you will use:
Item 2: 2 washers ø13 (ø1/2")
Item 3: 2 nuts M12 (5/8")
9.10
Place plate 1 against the lower part of the
drawbar and fasten it with counterplate 2,
washers 3 and screws 4.
For positioning, see point 1.
In this step, you will use:
Item 3: 2 spring washers ø17
(ø11/16")
Item 4: 2 screws M16 x 130
(5/8" x 5 1/8")
9.11
Fasten cylinder 2 to plate
1 using washers 3 and
screws 4.
In this step, you will use:
Item 3: 4 spring washers ø13
(ø1/2")
Item 4: 4 screws M12x30
(1/2" x 1 3/16")
