CONNECTION TO THE TRACTOR AND TRANSPORT
38

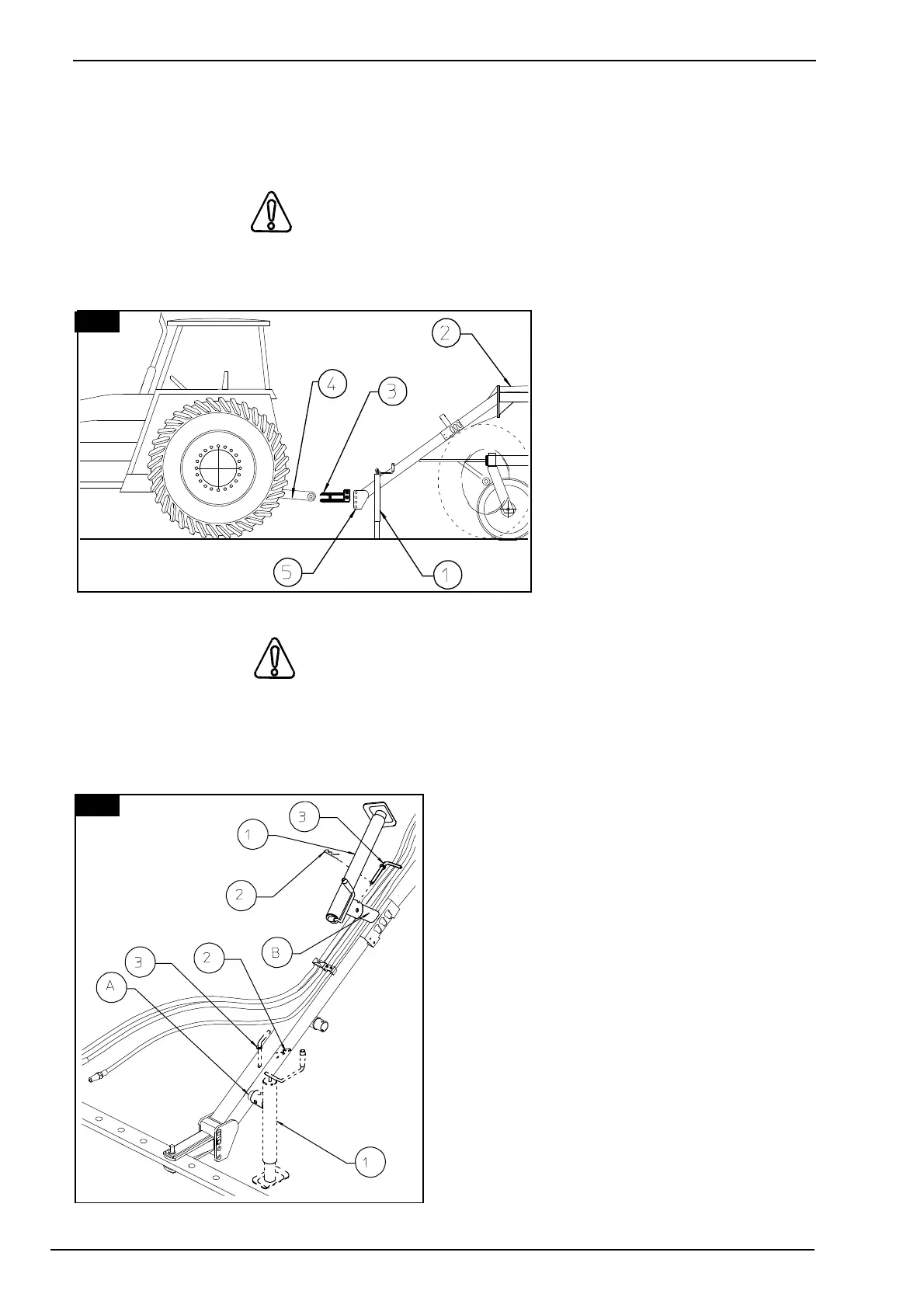

6. Connection to the tractor and transport
37. DANGER
To connect the machine to the tractor, first it is necessary to raise or lower parking stand 1 so
that drawbar 2 is parallel to the
ground. Back the tractor up to
the machine and look to see if
hitch 3 is aligned with tractor
hitch 4. lf hitch 3 is much higher
or lower than tractor hitch 4, it is
necessary to change the
position of hitch 3 by choosing
the holes in plate 5 which give
the best alignment. At this point
connect hitch 3 to tractor hitch 4
using a suitable pin. Next turn
the parking stand crank to
retract the base of the stand.
38. CAUTION
Parking stand 1 should be removed from the parking position indicate in figure 37 and attached
to bushing B as in figure. This is done by removing clip 2 and pin 3 and moving stand 1 out of
the parking position and pasten parking stand 1 into the transport position using pin 3 and clip 2
as indicated .
37
38
