ASSEMBLY STEPS
37
36.

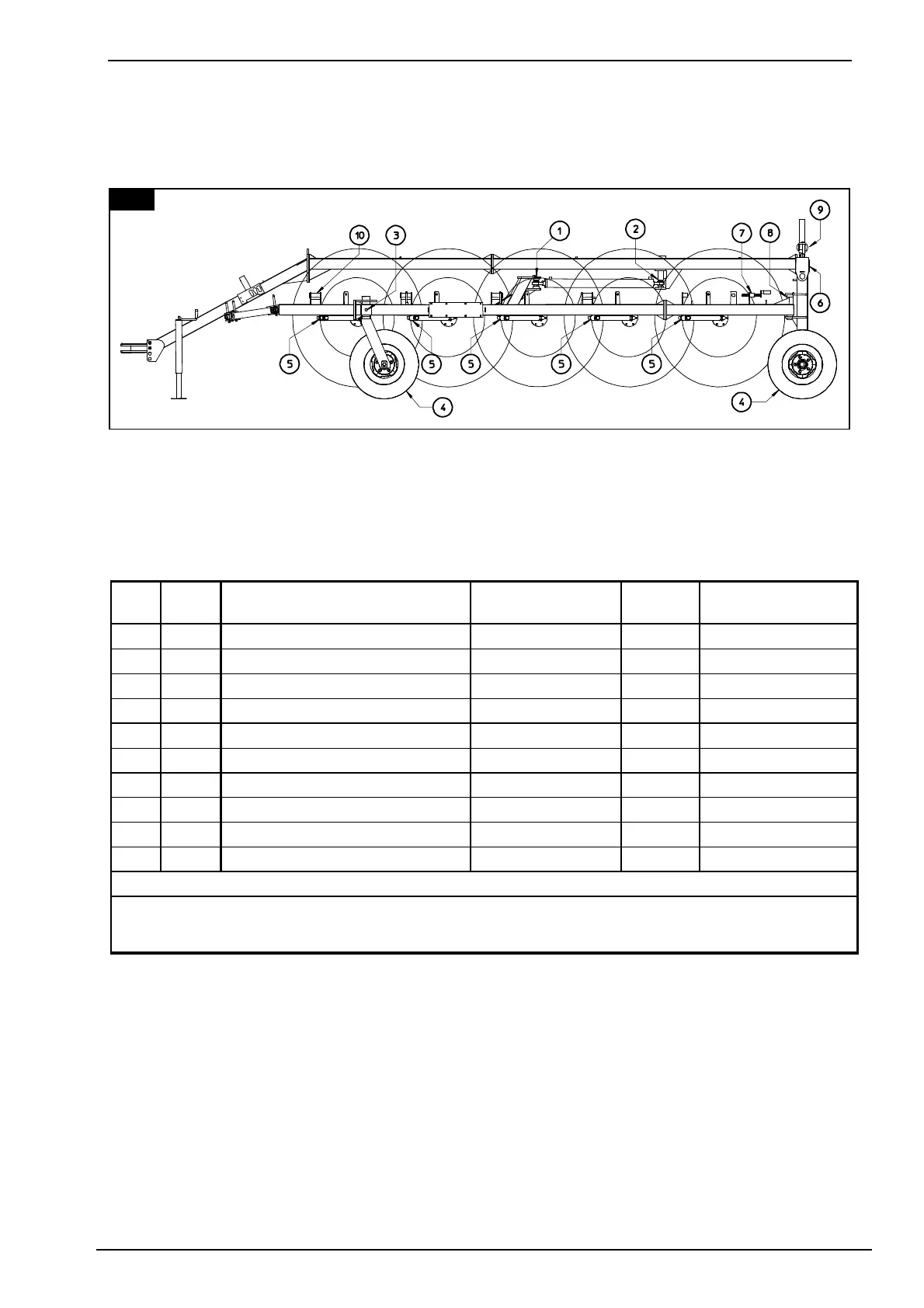

At this point, the machine is completely assembled. Before testing for operation, it is necessary
to lubricate and check the movement of all parts. This diagram gives the maintenance program,
to be carried out in its entirety the first time, and subsequently according to the schedule as
shown.
Pos. Q.ty Description Operation
Every x
huors
Notes
1 2 Opening cylinder head joints lubricate 16
2 2 Opening cylinder foot joints lubricate 16
3 2 Front wheel support joints lubricate 8
4 4 Tires check pressure A
5 8-10 Rake wheel bracket joints lubricate 25
6 2 Rear wheel supports lubricate 25
7 2 Crank screws clean, lubricate A Brush spatula
8 2 Rake wheel section joints lubricate 8
9 1 Ratchet link lubricate 15
10 8-10 Rake wheel pipe supports lubricate 25
A = every time the part is used
IMPORTANT
General checking of bolts, security pins and split pins to be carried out initially after the first 8 huors of use.
Subsequently every 50 hours and whenever the machine is laid up for extended periods.
36
