ASSEMBLY STEPS
36
35. CAUTION

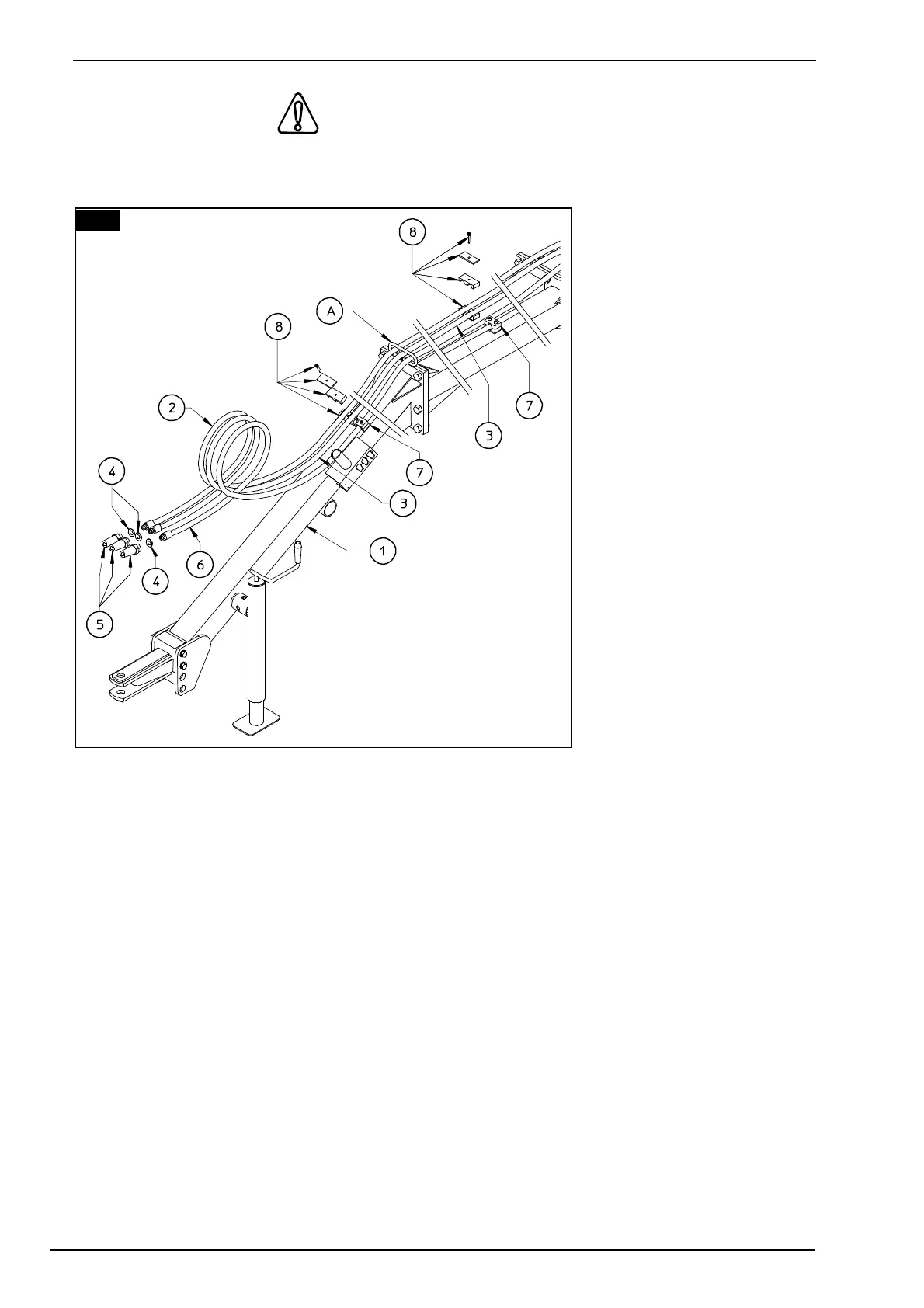

Pass hoses 2-3-6 through loop A on drawbar 1. Secure hose 6 in the correct places with hose
collars 9. Secure hoses 2-
3-6 in the correct places
with hose collars 7 and with
double hose collar 8.
Attach washers 4 and
quick-release couplings 5
to the ends of hoses 2-3-6.
In this step, you will use:
Items 2-3: hosing from
previous steps
Item 4:
3 - copper washers 1/2"
Item 5:
3 - quick-release couplings
1/2"
Item 6:
1 - 3/8" hose, length 5360
(3/8" x 18' 5" 41/64)
Item 7:
2 - hose collars D 18
(45/64")
Item 8:
2 - double hose collar D 18
(45/64")
