ASSEMBLY STEPS
35
34. CAUTION

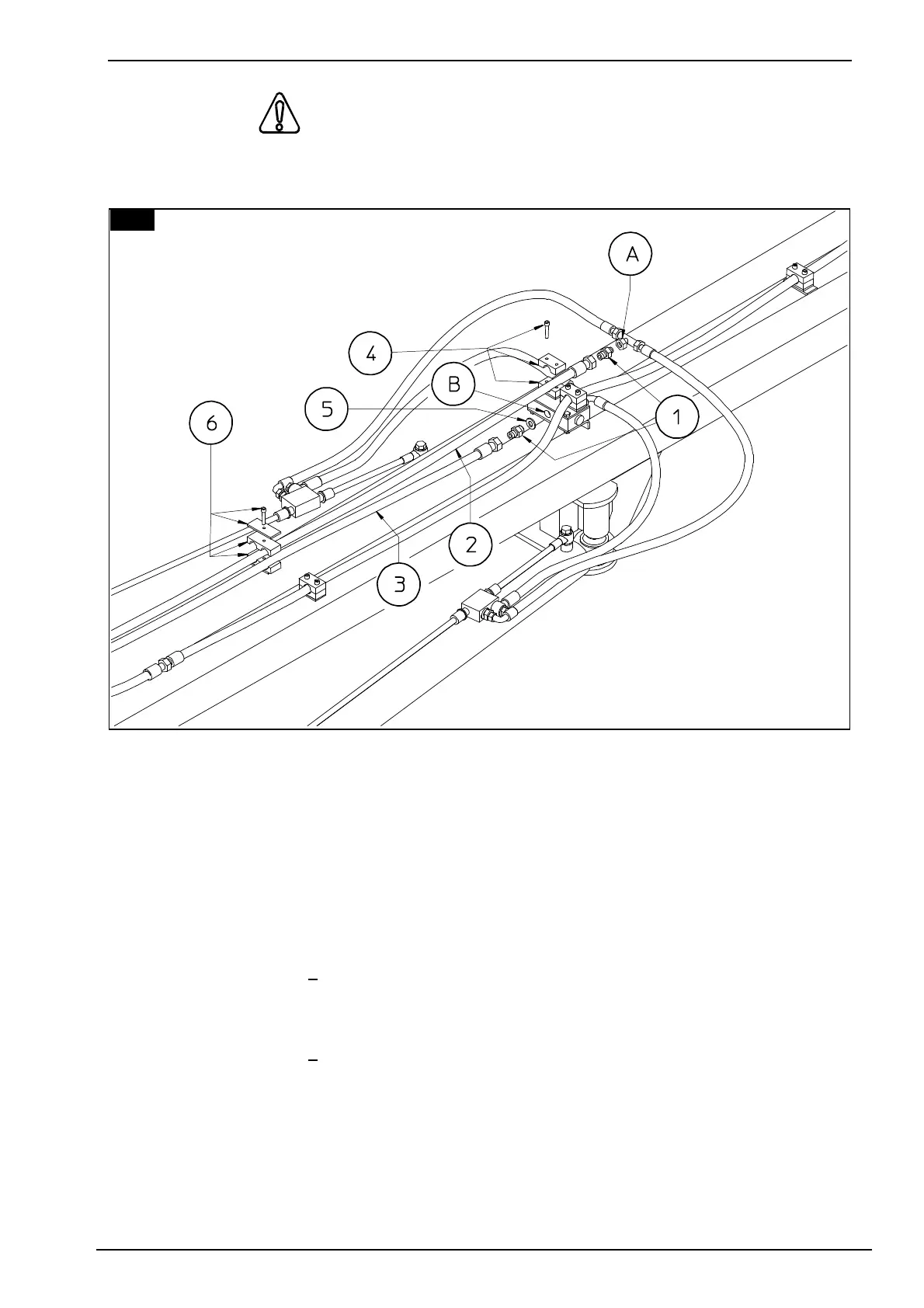

Screw nipple 1 into hole A of the T connector. Screw hose 2 onto nipple 1. Secure hose 2 in
place with collars 4. Screw nipple 1 and washer 5 into hole B of the flow divider. Screw hose 3
onto nipple 1 and secure in place with hose collar 4.
NOTE: Hoses 2 & 3 will also be in the next step.
In this step, you will use:
Item 1:
2 - nipple 3/8" - 3/8"
Item 2:
1 - 3/8" hose, length 6550
(3/8" x 21' 5" 55/64)
Item 3:
1 - 3/8" hose, length 6400
(3/8" x 20' 11" 61/64)
Item 5:
1 - copper washers 3/8"
Item 6:
2 - double hose collars D 18
(45/64")
34
