ASSEMBLY STEPS
34

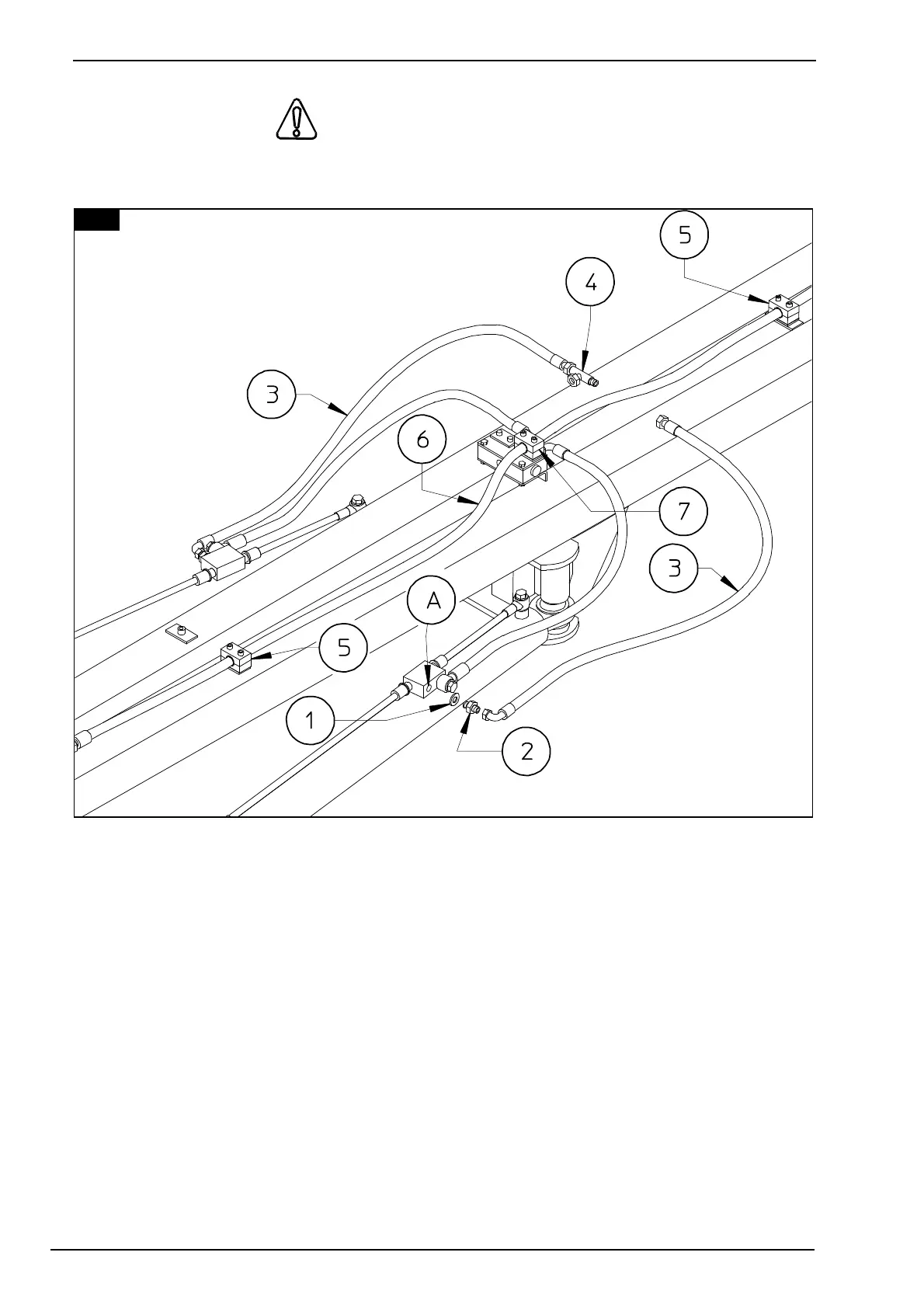

33. CAUTION
Continue to secure hose 6 using collars 5. Attach washer 1 and nipple 2 to hole A in cylinder
valve. Connect the curved end of hose 3 to nipple 2. Join hoses 3 to T connector 4 at the center
of the machine.
Item 4:
1 - male T connector 3/8"
Item 5:
2 - hose collars D 18
(45/64")
Item 6: hose from previous step
Item 7:
2 - double hose collars D 18 (45/64")
