QuickCollect CMDT 391 / CMDT 391-Ex 2 - 1
User Manual – Revision B
2
SKF QuickCollect Sensor
SKF QuickCollect Sensor System Overview
The SKF QuickCollect sensor is part of the SKF Enlight QuickCollect system, which also
includes SKF mobile apps and SKF Machine Health software. This system is used by
service, reliability, operations or maintenance personnel as part of a walk-around data
collection program. With one wireless vibration and temperature sensor which can be
connected to a tablet, smart phone or smart watch, the user can monitor hundreds of
assets per day and thousands of assets per month. The data can be analysed on the spot
in real time or sent to the cloud for analysis.

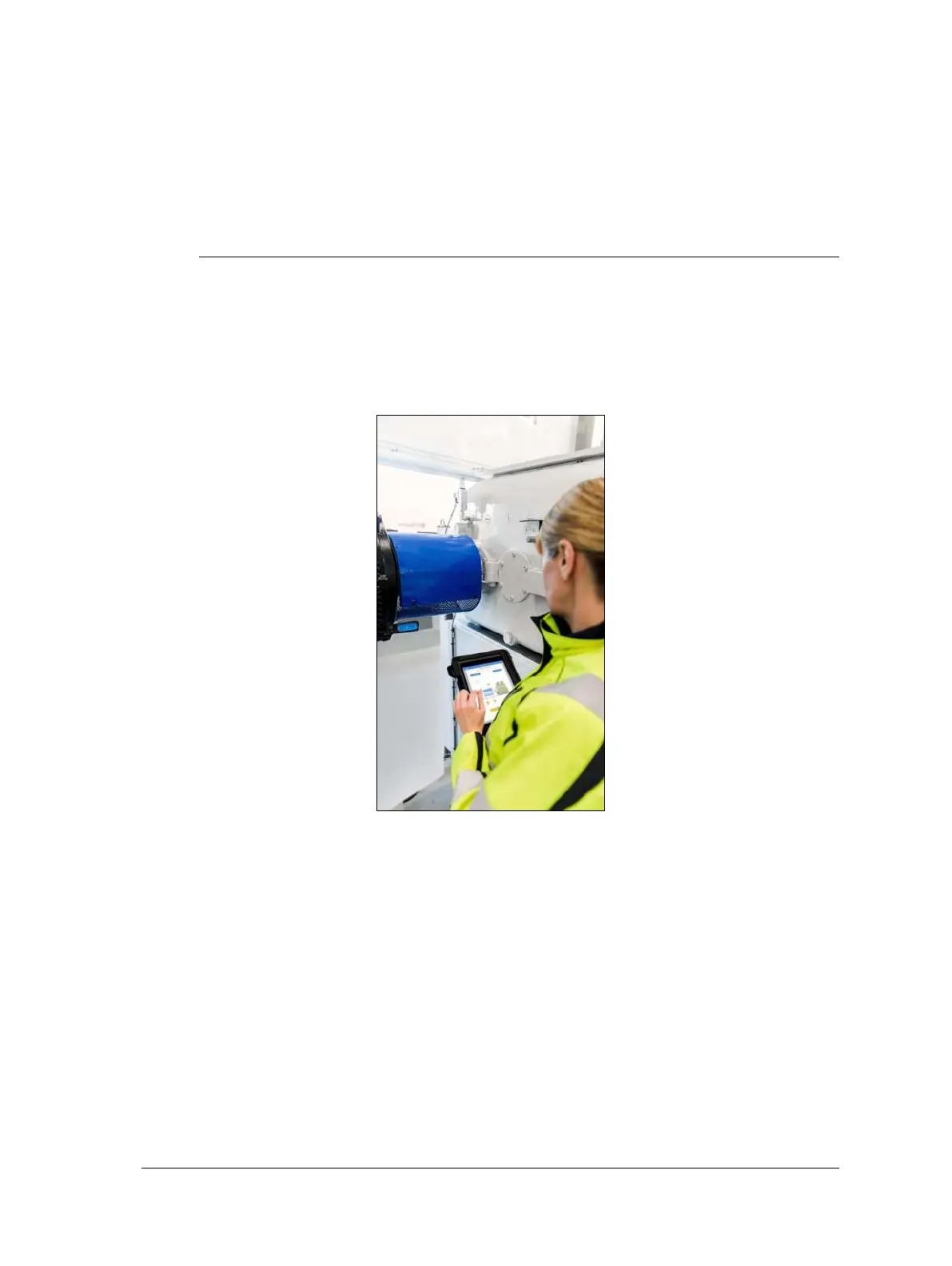

Figure 2 - 1.
On the job with an Enlight QuickCollect system.
In brief, a typical operation would include the following steps:
Take the QuickCollect sensor and smart device out to the rotating machinery to be
monitored (such as a pump or motor).
Mount the sensor on the bearing housing using the magnetic mount.
Initiate the sensor measurement wirelessly using Bluetooth
®
Low Energy from the
SKF QuickCollect, DataCollect or ProCollect app running on a smart device.
After making the measurement, remove the sensor and proceed to the next
machine or measurement location and continue taking measurements.
When complete, return the sensor to its charger.
