Technical Instructions Comfodesk Foot Switch STF/STH/STG
531d2950_03/01 Magnetic – The Linear Drives Company™ Page 4/6
4 Operation
4.1 Operation without memory function
The drive is controlled directly using the direction keys and .
` Key Drive is disengaged.
` Key Drive is engaged.
4.2 Operation with memory function
Initialisation run
Move the drive (drives) using the and keys on the foot switch in counter-load
direction to the limit position (= reference position)
The drive is controlled directly using the direction keys and .
` Key Drive is disengaged.
` Key Drive is engaged.
Keys
1
,
2
and
3
on the foot switch are used to move to saved positions.
Position 1
Position 2
Position 3

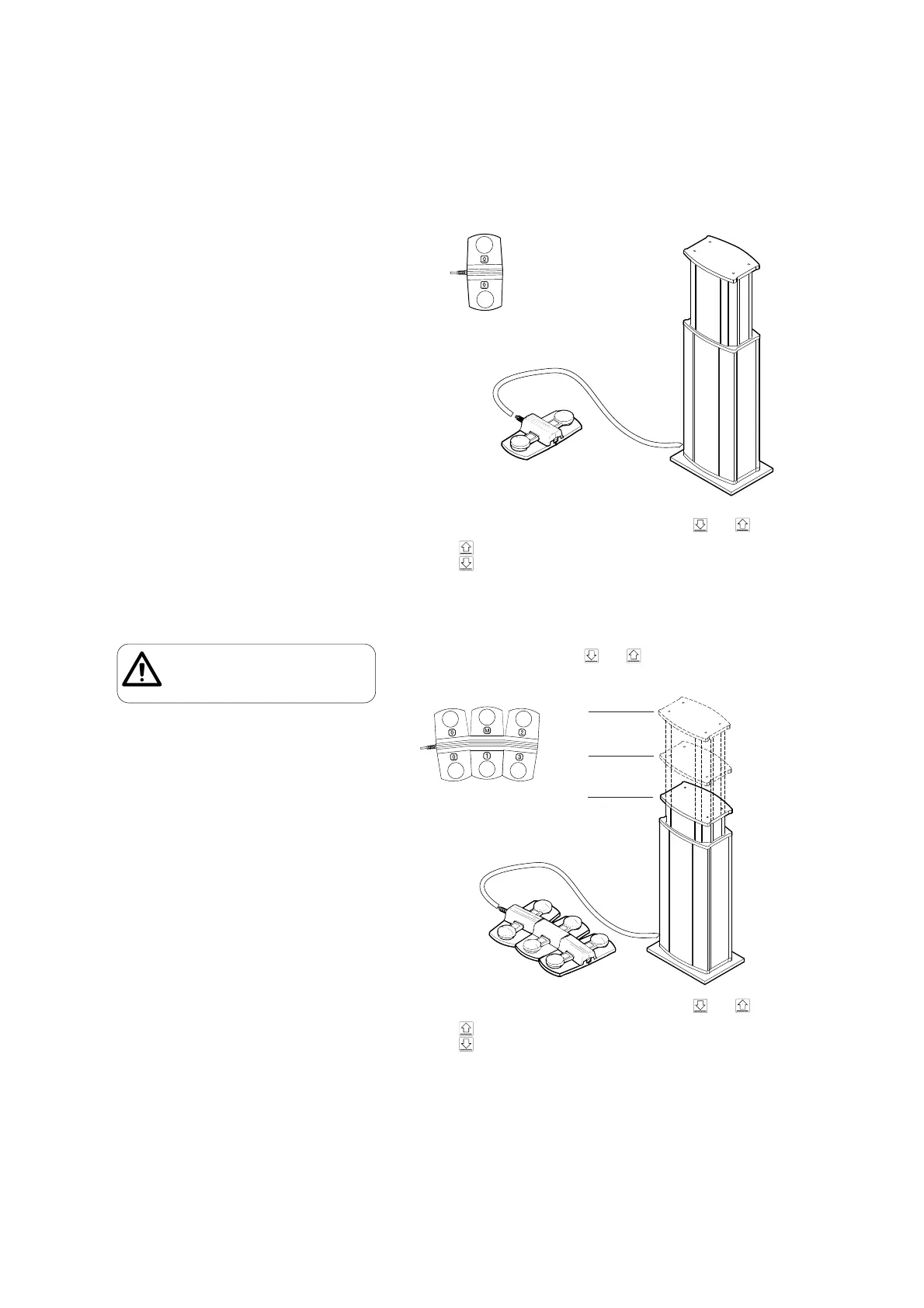

Fig. 4 – Operation without memory function
The initialisation run is compulsory,
otherwise the memory positions cannot be
set up.
Fig. 5 – Operation with memory function
