Technical Instructions Comfodesk Foot Switch STF/STH/STG
531d2950_03/01 Magnetic – The Linear Drives Company™ Page 6/6
The product is not subject to identification regulations conforming to CE or EMC
guidelines. The necessary EMC measures must be taken for the end product by the
manufacturer of the end product, in accordance with the installation conditions,
wiring and control system, and checked for the intended use. The manufacturer of the
machine or system shall be obliged to observe these regulations.
6 Technical data
Technical data Foot switches STF/STH/STG
Switching voltage 12V DC
Switched current 50 mA
Connection cable 2500 mm
Ambient temperature 0/+40 °C
Protection type/ IPx5/Safety extra-low voltage
classification
Colour grey/blue
Weight 500/1000/1500 g
Fixing screws M5 x (8 + material thickness)
7 Fault elimination and troubleshooting
Fault Cause Rectification
No function Poor Check
plug connection plug connections
The instructions in customer-specific documentation must also be observed. Should it
not be possible to rectify a fault, please contact Magnetic AG, Liestal.
223
105
191
40
230
108,6
82
325
311,6
148.5

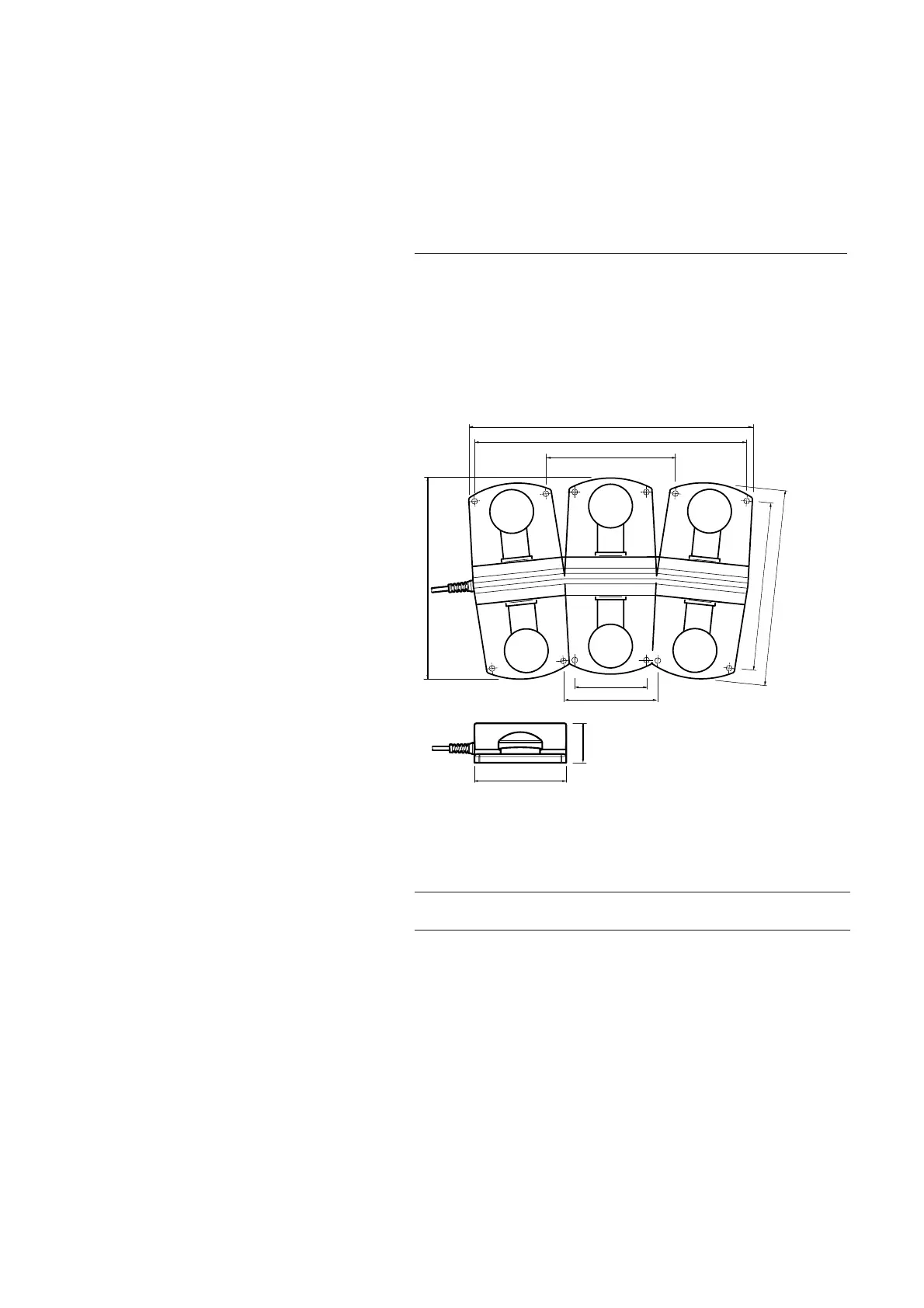

Fig. 5 – Dimension drawing
