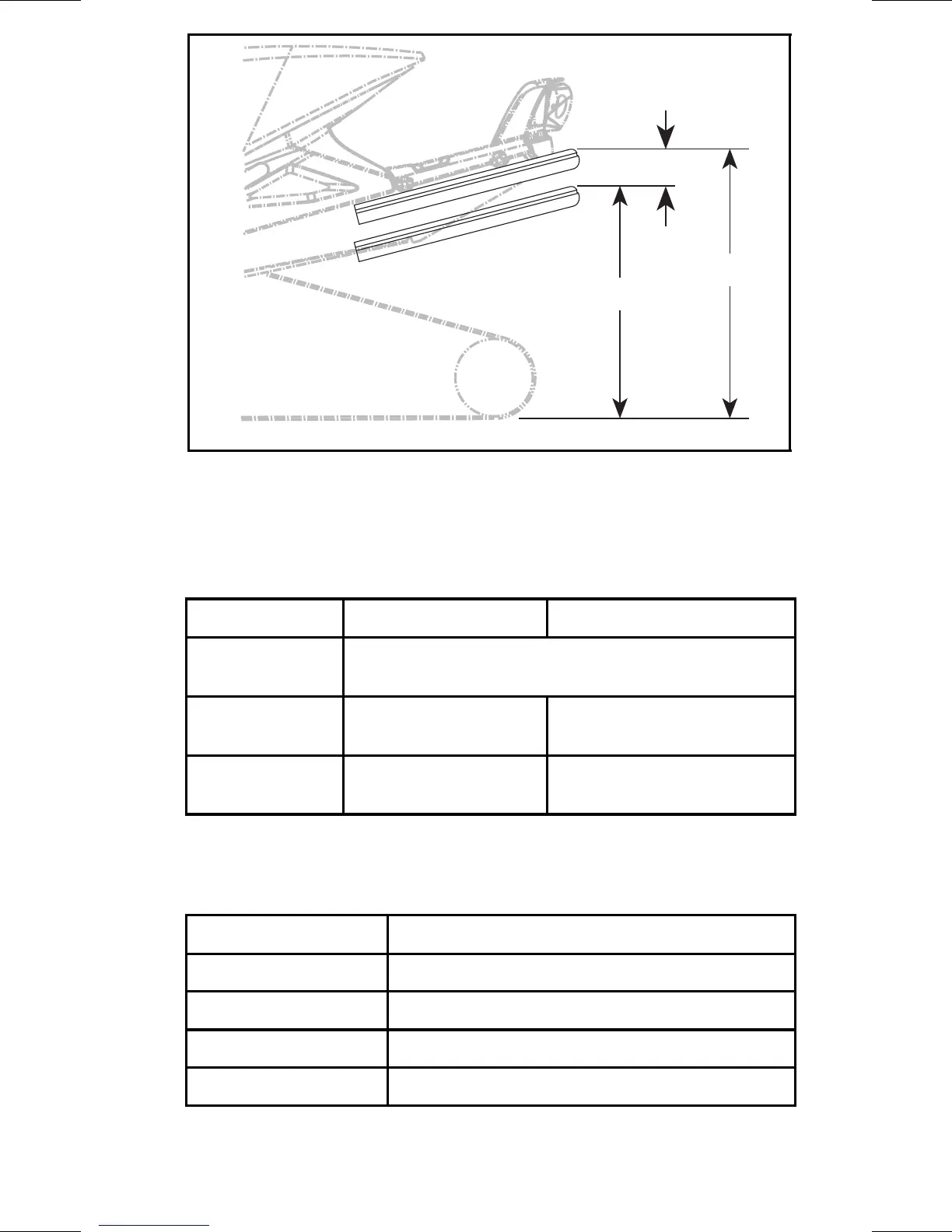

TYPICAL — PROPER ADJUSTMENT
A. Suspension fully extended
B. Suspension has collapse with driver, passenger(s) and load added
C. Distance between dimension A and B, must not exceed 50 to
75 mm (2 to 3 in), see table
Rear Springs Adjustment
”C” CAUSE SOLUTION
50 to 75 mm
(2to3in)
No adjustment required
More than
75 mm (3 in)
Too soft of
adjustment
Increase preload
(see preload adjustment)
Less than
50 mm (2 in)
Toohardof
adjustment
Decrease preload
(see preload adjustment)
Preload Adjustment
NOTE:
Left and right adjustment cams may be at different settings.
CAM POSITIONS SPRING PRELOAD
1
Minimum
2 Minimum/Intermediate
3 Intermediate/Maximum
4 Maximum
_________________________
135

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
