DRIVE SYSTEM
Belt Guard Removal and Installation

WARNING
NEVER operate engine:
– without shields and belt guard securely installed
– with hood opened or removed.
NEVER attempt to make adjustments to moving parts while
engine is running.
NOTE: Beltguardispurposelymadeslightlyoversizetomaintainten-
sion on its pins and retainers preventing undue noise and vibration.
It is important that this tension be maintained when reinstalling.
– Remove tether cord cap.
– Open engine compartment.

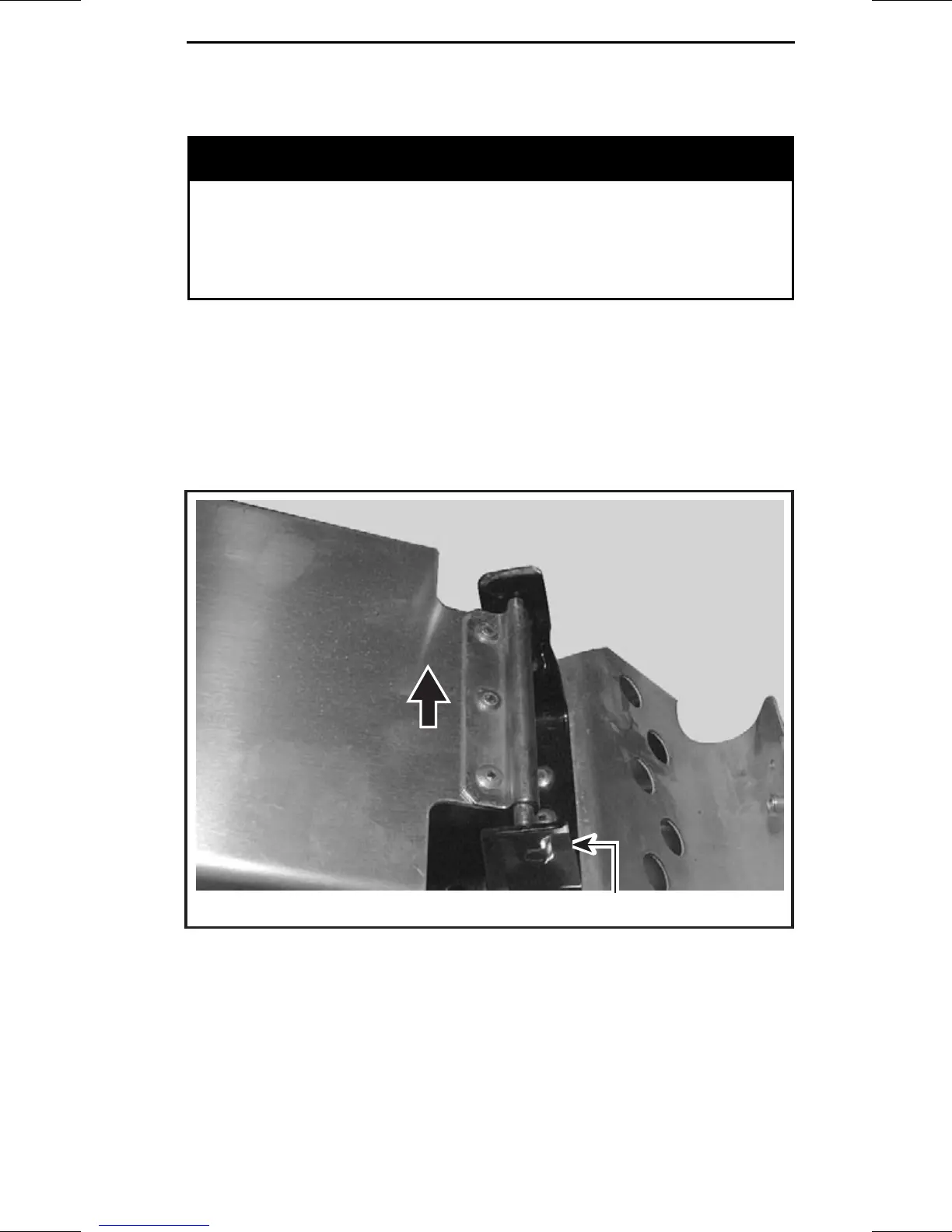

– Open retainer to release pin then pull belt guard out of vehicle.
1
A32C05A
TYPICAL
1. Pin retainer
When reinstalling belt guard, position its cutaway toward front of
snowmobile. Refer to decal in belt guard.
Place belt guard slots over tabs first, then snap the other end in re-
tainer.
_________________________
181

Ski-Doo REV Series Specifications

General

Chassis	REV
Track Width	15 in
Fuel Capacity	10.6 gal
Seating Capacity	1
Reverse	Available on most models
Electric Start	Available on most models
