Coupling Blocks — Handling
SC4 Suspension Only
• Ride at moderate speed and check for desired handling.
• If handling requires adjustment, turn both left and right blocks by
90 to the desired position.
NOTE: There are four possible adjustment positions. Side of block
with the desired adjustment number must be facing the rubber stop-
per.

WARNING
Both blocks must be set at the same position. Otherwise ve-
hicle behavior may be unpredictable and suspension may be-
come warped.
Use tool provided in tool bag to adjust coupling blocks.

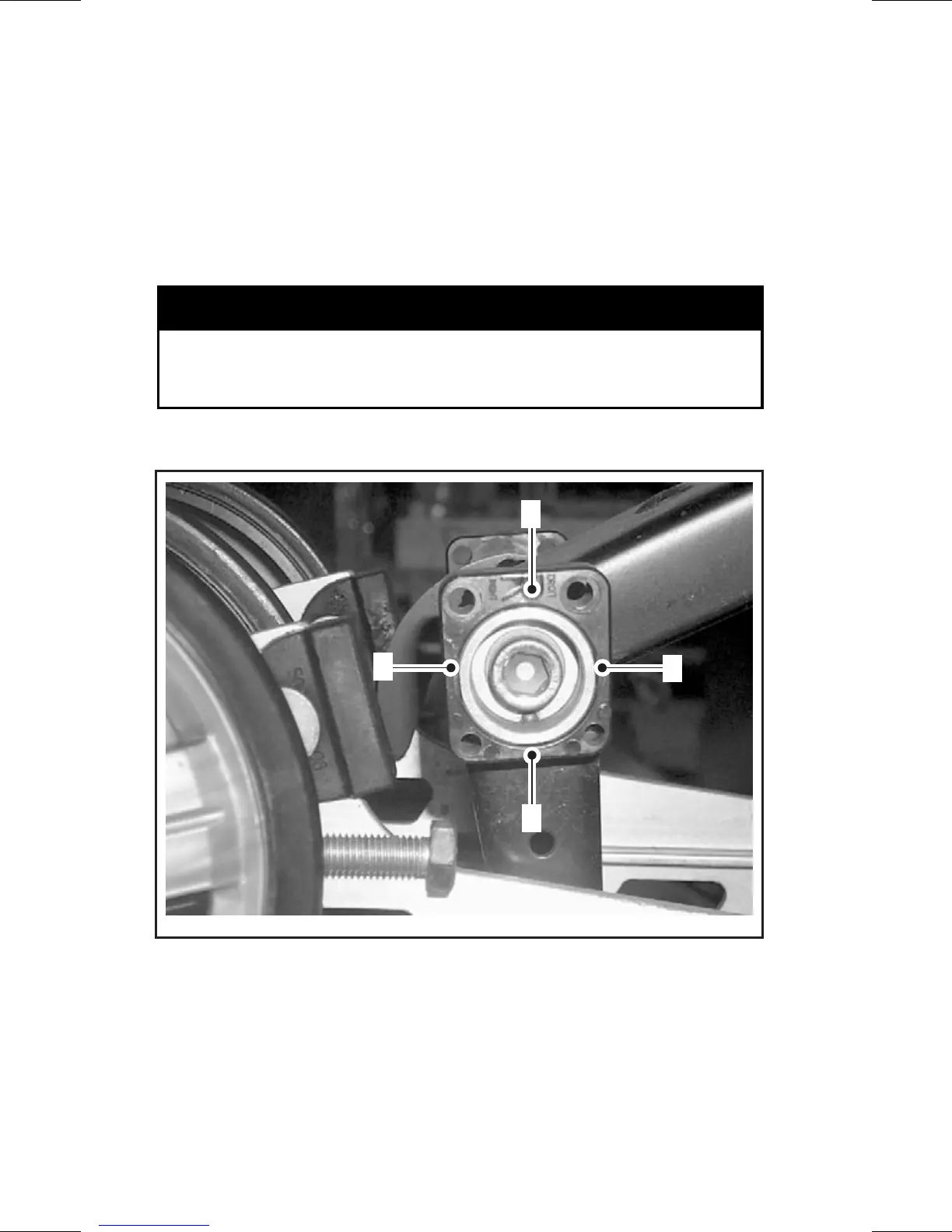

A33F4IA
4
3
2
1
COUPLING BLOCK — RIGHT SIDE VIEW (“R”—RIGHT EMBOSSED ON BLOCK)
1. Position 1 (minimum)
2. Position 2 (minimum/intermediate)
3. Position 3 (intermediate/maximum)
4. Position 4 (maximum)
