Skil 3316 - Assembly

23
1
3
4
3
2
4
5
1
6
7
8
9
30
2
15
31.6
22.5
45
0
2
3
4

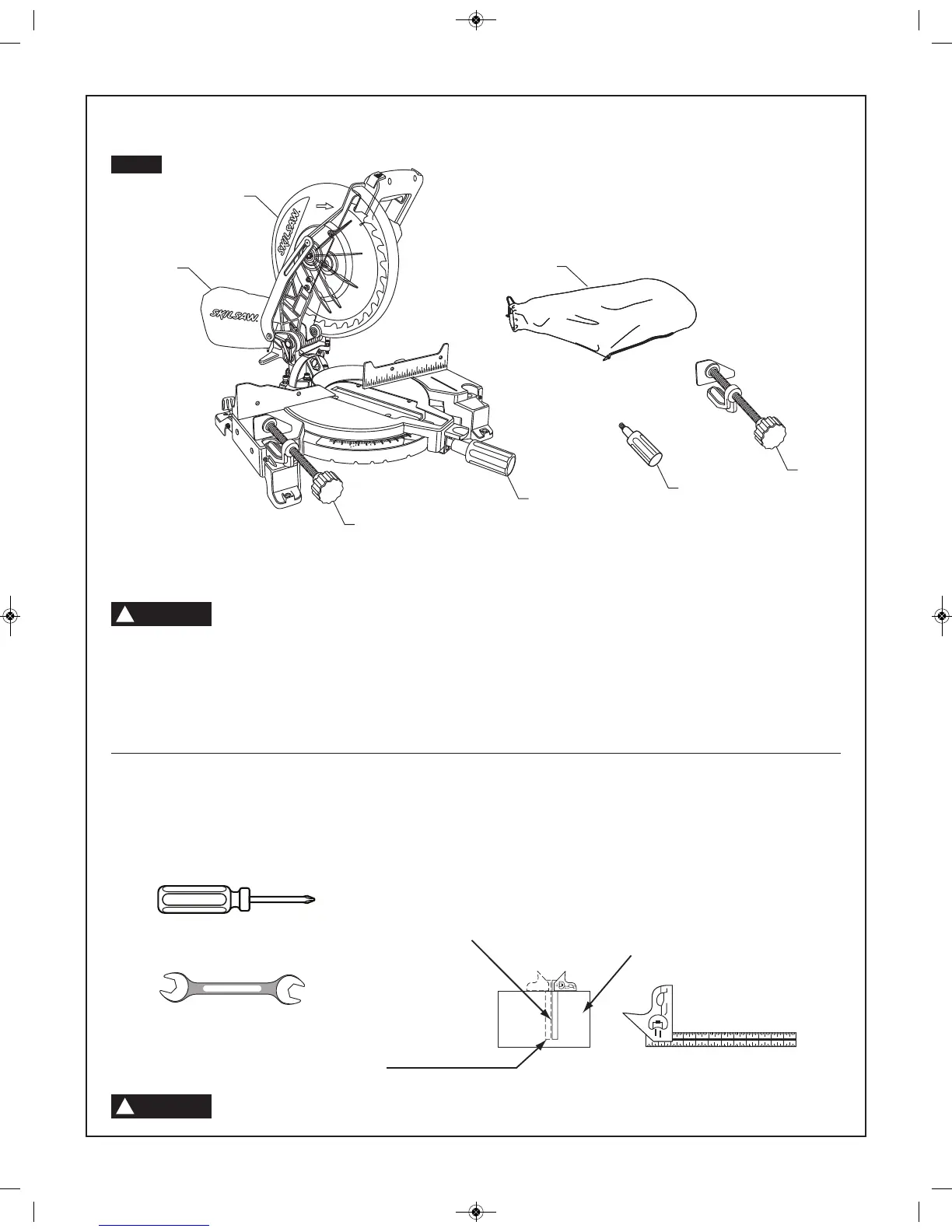

1. Compound Miter Saw
2. Vise Clamp Assembly
3. Dust Bag
4. Miter Handle
Before moving the saw: Lock the miter
lock knob in 45° left or right position. Lock
bevel lock handle. Lock head assembly in the down position.
Never carry the tool by the cord or head assembly power
switch handle. Damage to insulation could cause an electric
shock. Damage to wire connections could cause a fire.
Model 3316 Compound Miter Saw is shipped complete in one
box.
1. Separate all parts from packing materials and check each
one with the parts in Figure 1 to make sure all items are
accounted for before discarding any packing material.
If any parts are missing, do not plug in power cord or turn the
switch on until the missing parts are obtained and are installed
correctly.
Assembly
Tools Needed For Assembly And Alignment
Unpacking and Checking Contents
Should be no Gap or Overlap
when Square is Flipped Over in
Dotted Position
Draw Light
Line on Board
Along this Edge
Straight Edge of
Board 3/4" Thick
This Edge Must be
Perfectly Straight
Combination Square Must be True
Combination Square
9/16" / (14 mm) Combination
Open End Wrench
#2 Phillips Screwdriver
Disconnect plug from power source before performing any assembly, adjustment or repair to avoid possible
injury.
WARNIN G
!
CAUTION
!
FIG. 1
