Assembly
Installation of Miter Lock Knob
1. Carefully thread the miter lock knob 1 into the hole 2
located at the front of the miter table (Figure 2).
2. Turn the miter lock knob clockwise to tighten. Do Not
Over Tighten.
3. Loosen handle 1/4 turn or more and press down on the
miter handle release 3 to unlock the miter table from the
set position. To lock, tighten the handle.
Store the Saw Blade Wrench
Store the blade wrench 4 in the clip at the rear of the saw base
to prevent loss (Figure 4).

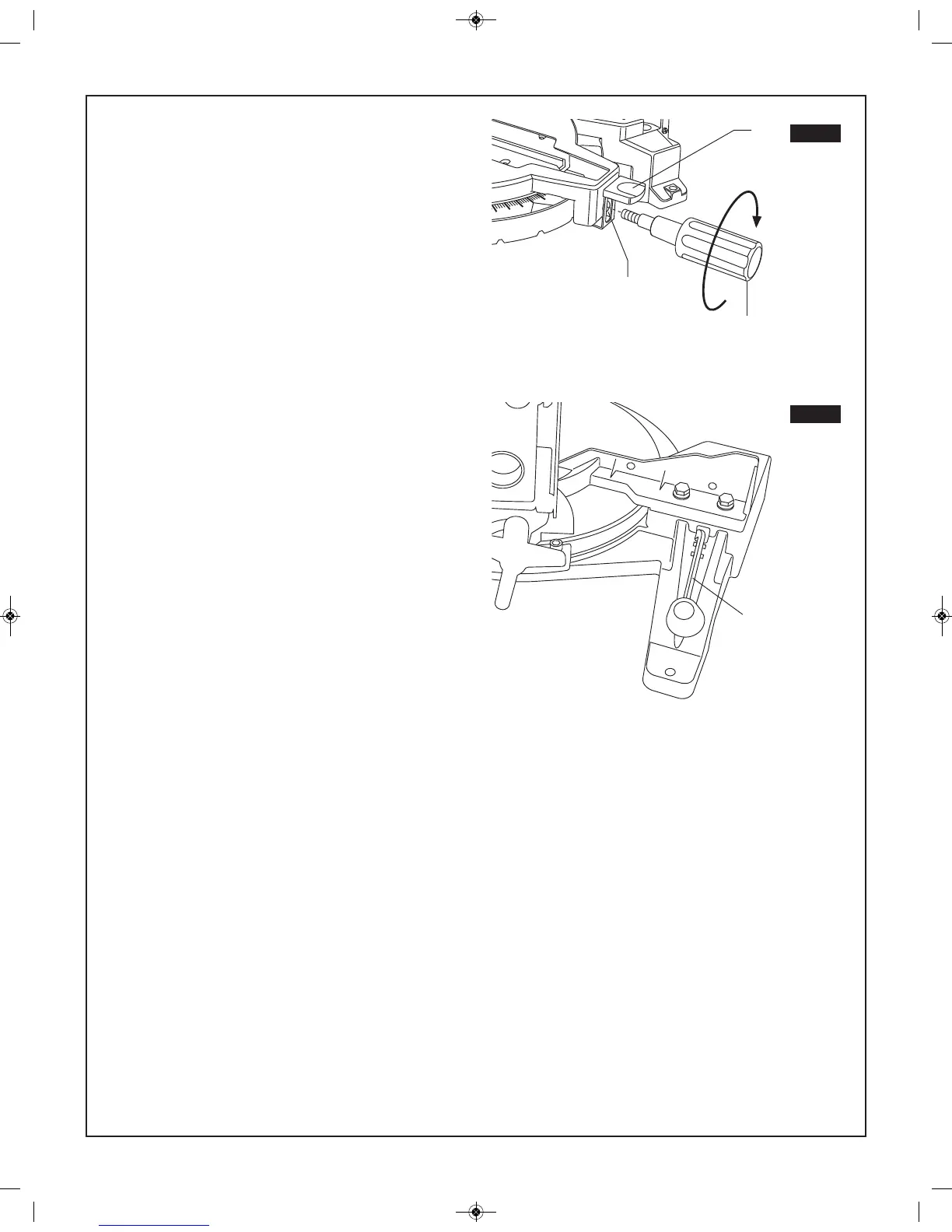

FIG. 2
