Saw Operations
• Base molding can be cut vertical against fence or flat on
the table.
• Follow the table for helpful hints on cutting base molding.
Base Molding

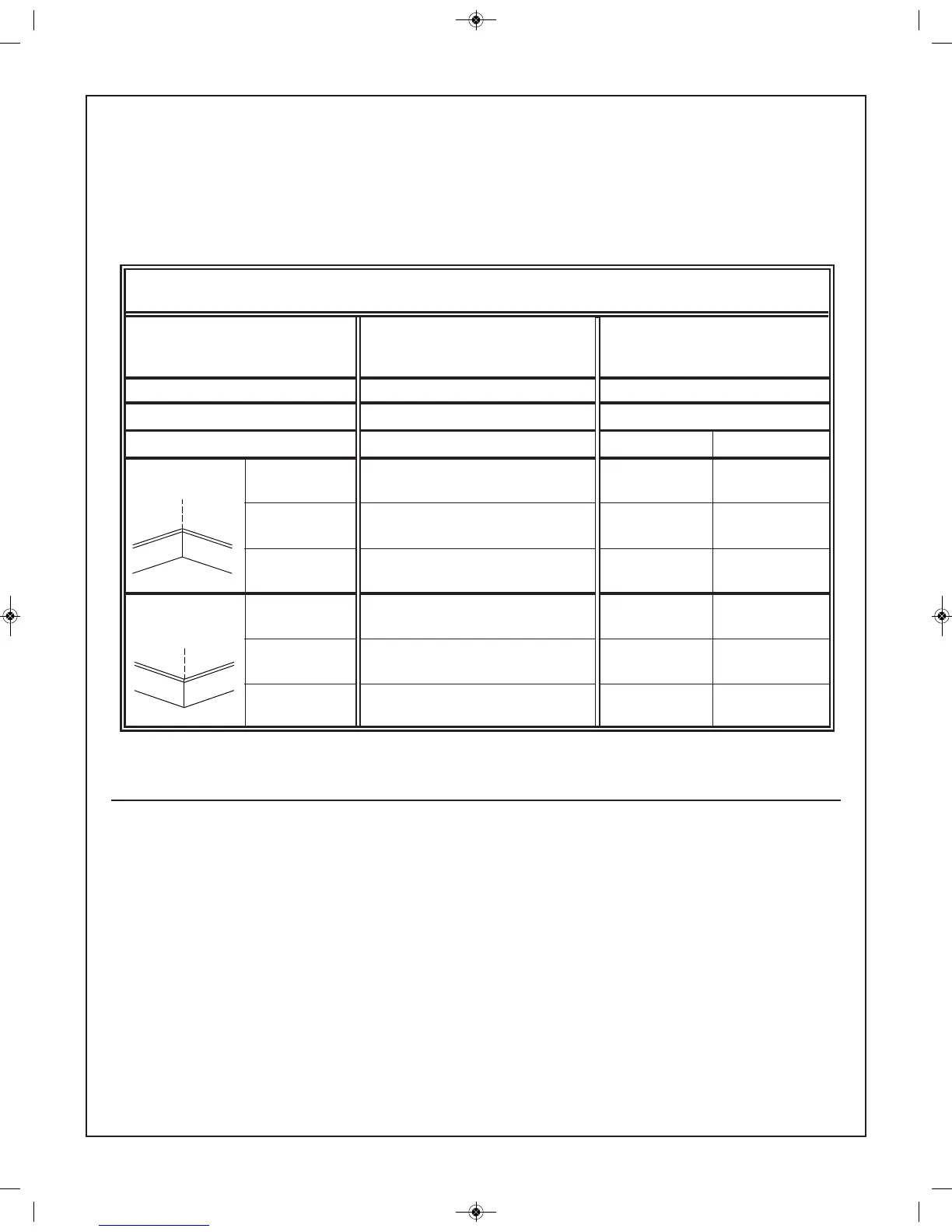

BASE MOLDING CUTTING INSTRUCTIONS
SETTINGS Vertical Position Horizontal Position
/ Back of molding is Back of molding is flat
INSTRUCTIONS against the fence on the table
Sliding Fence Far Right Position Move to proper position
Bevel Angle 0° 45°
Molding position Left Side Right Side Left Side Right Side
Inside Miter Angle Left at 45° Right at 45° 0° 0°
corner of wall
Molding Bottom Bottom Top against Bottom
position against table against table fence against fence
Finished Keep left Keep right Keep left Keep left
side side of cut side of cut side of cut side of cut
Outside Miter Angle Right at 45° Left at 45° 0° 0°
corner of wall
Molding Bottom Bottom Bottom against Top against
position against table against table fence fence
Finished Keep left Keep right Keep right Keep right
side side of cut side of cut side of cut side of cut
Cutting Crown Molding
• Crown molding must be cut exactly to fit properly.
• Your miter saw has special miter detents of 31.6° left and
right and a bevel indicator at 33.9° for cutting crown
molding flat on the table.
• These special detents angles have been designed into
your compound miter saw for the standard crown molding
used in the United States with the following angles:
52° between the back of the molding and the top flat
surface that fits against the wall.
38° between the back of the molding and the bottom
flat surface that fits against the wall.
NOTE: These detents cannot be used with 45° crown
molding.
• Even though these angles are standards, most rooms do
not have angles of exactly 90°, therefore, you will need to
fine tune your settings using the detent override and the
vernier scale.
