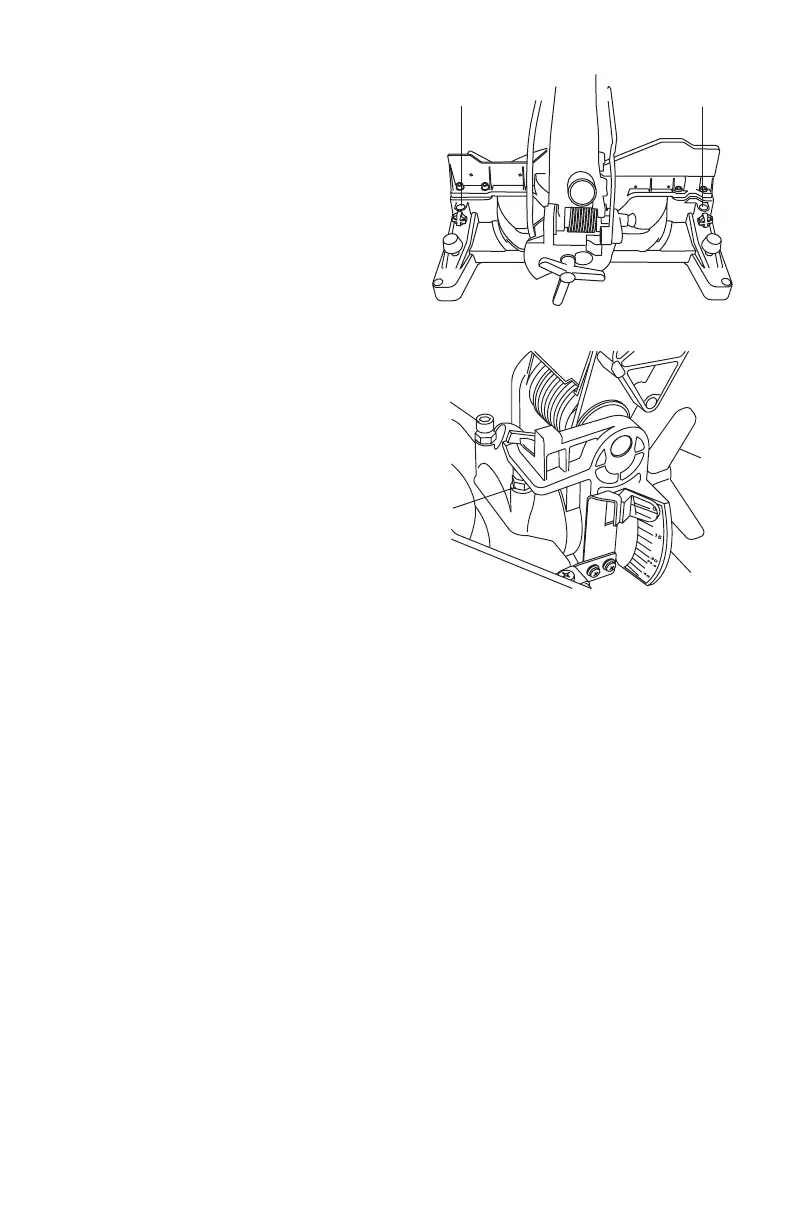

29. Stop Block
Stop block can be used to make repetitive
length cuts.
30. Dust Port
The dust port can accommodate the dust
bag or a 1-1/4” vacuum hose hookup.
31. Dust Collection Bag
Attaches to the dust elbow and collects dust
to help keep work area clean.
32. Bevel Lock Handle
The bevel lock handle locks the head
assembly at a desired bevel angle.
33. 45° Bevel Stop
Adjustable stop for a quick and accurate 45°
bevel index.
34. 0° Bevel Stop
Adjustable stop for a quick and accurate 0°
bevel index.
35. Bevel Scale
This scale allows you to read the bevel
angles easily.
36. Extension Rail lock Knobs
Locks the extension rails at desired positions.
37. Quick Clamp Knobs
Allows for fast and easy mounting to the
SKIL miter saw stand.
38. Lower Guard Lip
Lip can be used to raise the lower guard
when guard becomes jammed on a
workpiece.
17 17
33
34
35
32
