Additional Workpiece Support
Blocks
- Long pieces need extra support. The base height is 4-3/16”. Boards of these
thicknesses can be used to create auxiliary support for extensions for long workpieces.
Extension Rails 4 and Extension table 5
– These attachments allow extra support for longer
workpieces. Refer to the instructions on page 31 for extension table instructions (Figure 22).
To assembly extension rails
4
, push rail
4
into accessory extension holes on either side of the
base until rail hits the hard stop. Secure the rails by tightening the knob
6
on front of the base
(Figure 23).
30
45
50
31.6
4
5

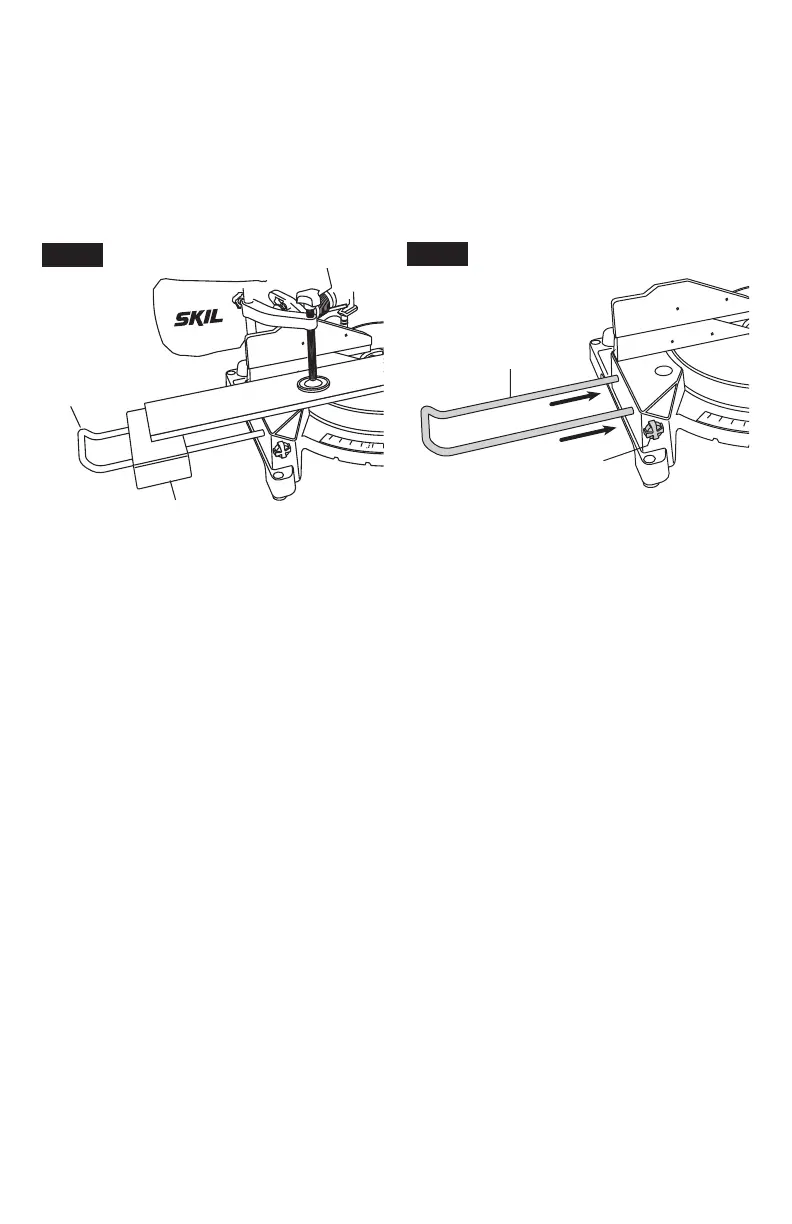

Fig. 22
45
50
31.6
4
6
Fig. 23
