Sliding Fence:
1. Unlock the fence locking knob
3

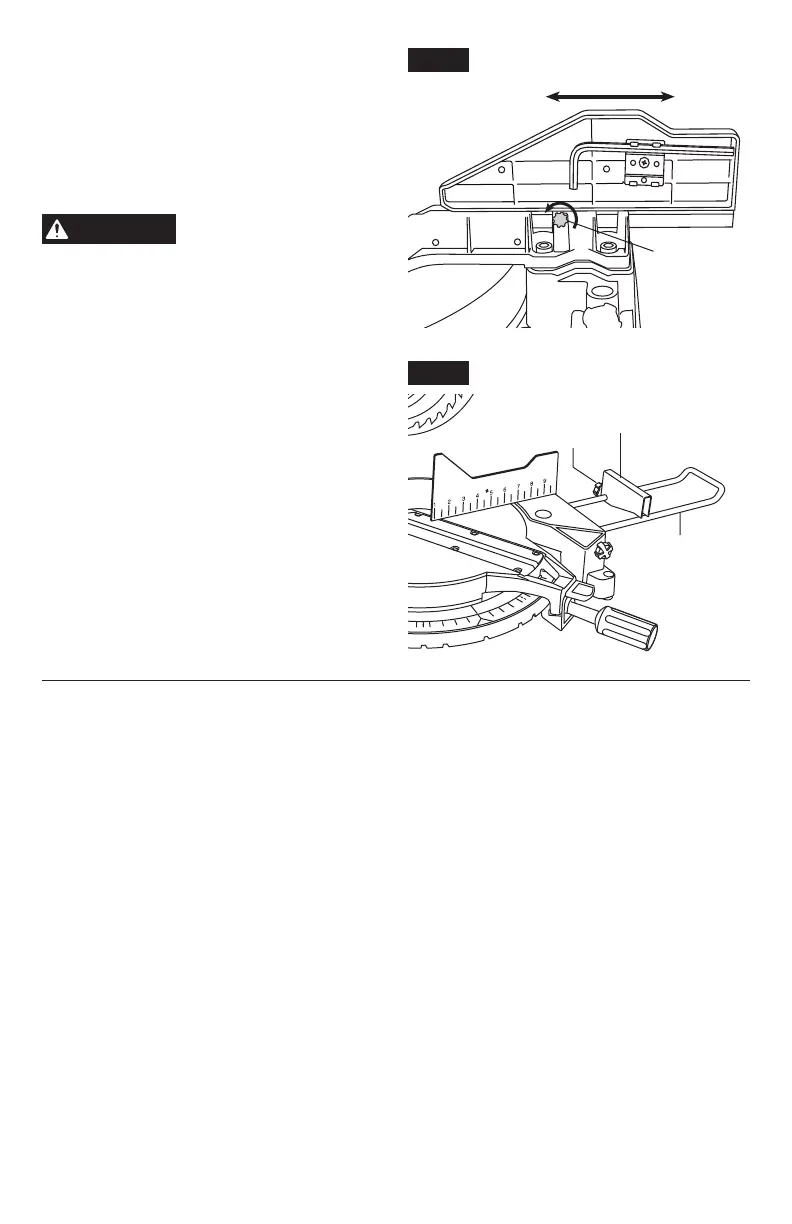

(Figure 27).
2. Slide fence to proper position
4
.
3. Relock fence in place.
4. Move the head assembly to check
clearance with fence.
CAUTION
During transportation,
sliding fence should always
be secured in the full in position.
Stop Block:
Stop block can be used to make repetitive
length cuts.
1. Attach stop block
5
to extension rail
6
(Figure 28).
2. Loosen thumbscrew
7
on backside of stop
block
5
.
3. Slide stop block to desired length of cut.
4. Tighten thumbscrew.
Note:
Stop block can be stored by loosening
knob and ipping stop block.
4
3
Fig. 27
15
0
15
22.5
22.5
5
7
6
Fig. 28
